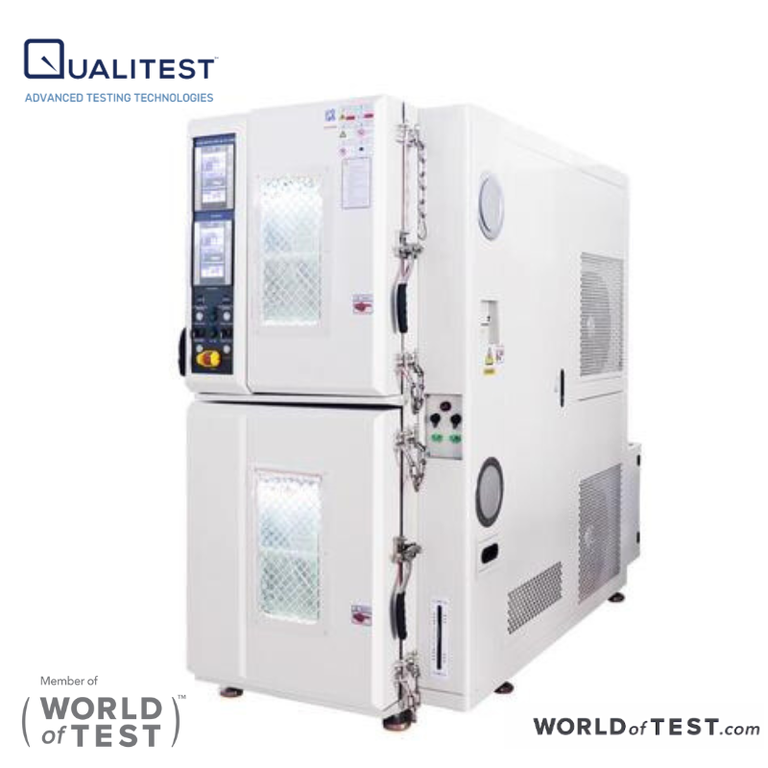

Double Layer Battery Temperature Cycling Test Chamber

Features of the Double Layer Battery Temperature Cycling Test Chamber:

1. Optimized Footprint:
   • Designed for an efficient use of space in the customer's laboratory.
2. Robust Construction:
   • Inner chamber made of SUS#304 stainless steel with 1.2mm thickness.
   • Full welding structure ensures excellent sealing and resistance to cracking.
3. Energy Efficiency:
   • Customized solutions to minimize electricity consumption, promoting sustainability.
4. Effective Insulation:
   • Insulation material composed of 100mm thick polyurethane foam for enhanced thermal performance.
5. Gas Sealing Assurance:
   • Fully welded chamber construction guarantees a perfect gas seal, ensuring the integrity of testing conditions.
6. Observation Window:
   • 4 layers of tempered glass for the observation window.
   • Size customization according to user preferences.
7. Cable Ports:
   • Both sides of the chamber equipped with 100mm diameter cable ports.
   • High and low-temperature resistant silicon plugs for effective sealing.
8. Optimized Airflow:
   • Airflow design facilitates simultaneous testing of multiple samples, increasing testing efficiency.

The Double Layer Battery Temperature Cycling Test Chamber offers a combination of advanced features to ensure precise and reliable battery testing while prioritizing user convenience and energy efficiency.

Refrigeration System Features:

1. Premium Compressors:
   • Equipped with world-renowned compressors, including Tecumseh (France), Bitzer, or GEA BOCK (Germany), ensuring top-notch performance and reliability.
2. Shock Absorption and Noise Reduction:
   • Incorporates a process for shock absorption and noise reduction to slow down vibrations and safeguard the compressor, contributing to a quieter and more stable operation.
3. Innovative Pipe Bending Technology:
   • Utilizes advanced pipe bending technology to minimize connector points, enhancing the efficiency of refrigerant flow and system performance.
4. High-Quality Solenoid Valves:
   • Integrates Denmark's DANFOSS and Japanese SAGLNOMIYA solenoid valves to elevate the overall reliability of the refrigeration equipment.
5. Advanced Protection Features (MP10 Module):
   • Motor Overheating Protection: Equipped with motor overheating protection, featuring an LED indicator for prompt visual monitoring.
   • Exhaust Temperature Overheating Protection: Optional temperature monitoring probe and LED indicator provide additional protection.
   • Power Indicator: Includes a power indicator for easy status recognition.
   • Alarm Function: Incorporates an alarm function to alert users to potential issues, ensuring proactive maintenance.

The Refrigeration System is designed with precision and incorporates cutting-edge components, offering not only superior cooling capabilities but also advanced features for protection and efficiency.

Electrical System Features:

1. Neat and Professional Layout:
   • The circuit cabinet comes up with a tidy and professional overall layout, ensuring ease of maintenance and troubleshooting.
2. Compliance with UK Standards:
   • Circuits are meticulously arranged in accordance with UK standards, providing a reliable and standardized electrical infrastructure.
3. Comprehensive Circuit Diagrams:
   • Equipped with complete circuit diagrams for enhanced clarity and reference during maintenance procedures.
4. Unique Line Coding:
   • Each electrical line is assigned a unique code, clearly defined and easily locatable, facilitating efficient troubleshooting and maintenance.
5. High-Quality Electrical Components:
   • Incorporates electrical components sourced from globally renowned brands:
     • Schneider (France)
     • Carlo Gavazzi (Switzerland)
     • Mitsubishi (Japan)
     • Rainbow (Korea)

These world-class components contribute to the system's reliability and performance, ensuring that the electrical system adheres to the highest standards in quality and functionality.
