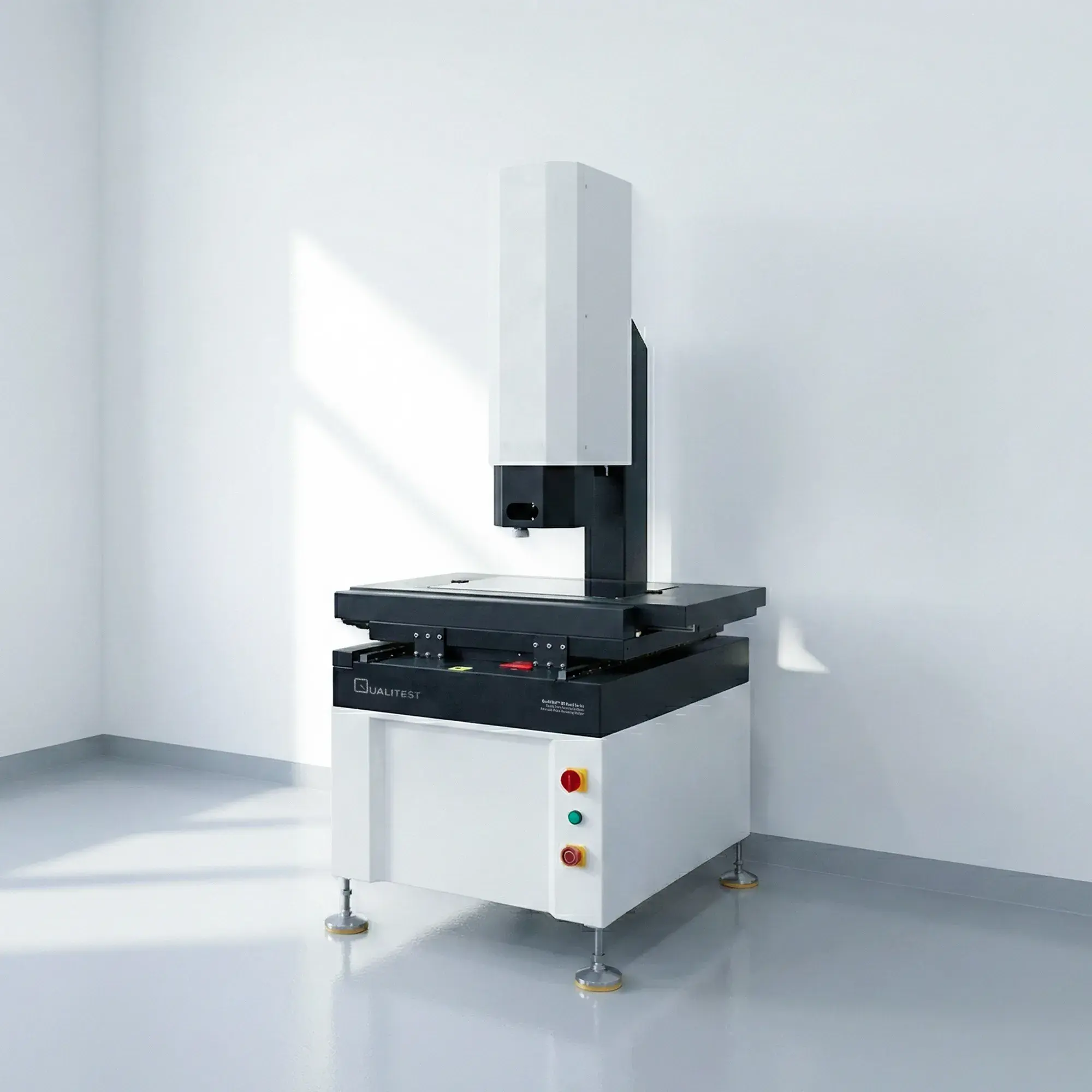

Double Track Accurate Cantilever Automatic Vision Measuring Machine

Double Track Accurate Cantilever Automatic Vision Measuring Machine – QualiVMM™ DT Canti Series Applications

• CNC dimensional inspection for machined parts
  • Measure lengths, diameters, radii, angles, and feature spacing using programmable routines. CNC motion and stable guidance help reduce operator variation during repeated inspection runs. This fits incoming inspection, in-process checks, and final QA where consistent results matter.
• Batch inspection with fixtures and repeat jobs
  • Many teams inspect multiple identical parts per shift. Automated programs let you repeat the same measurement path across lots with fewer manual steps. Repeatability is listed at 2 μm, supporting stable routine checks and reporting.
• Parts with challenging edges and mixed finishes
  • Edge definition often depends on lighting quality. Program-controlled 5-ring, 8-zone LED surface illumination plus parallel contour lighting provides 256-level brightness control for better contrast. This helps with reflective metals, dark plastics, textured surfaces, and mixed coatings.
• 2.5D and 3D measurement when sensors are added
  • Some parts require Z-height checks, surface evaluation, or scanned profiles. Model variants support optical-only measurement, optical plus touch probe, optical plus laser, or a multi-sensor configuration. This supports 3D elements and advanced surface scanning tasks when images and probes alone are limiting.
• GD&T-oriented measurement and documentation
  • The software is positioned for geometric coordinate measurement and GD&T-based evaluation aligned with ISO GPS and ASME practices. It supports common 2D/3D elements and can import/export DXF for reference coordinates and reverse DXF workflows. This improves documentation for suppliers, audits, and engineering reviews.

Standards

• ISO/IEC 17025:2017 for laboratory competence and traceability of calibration results.
• ISO 10360 series for acceptance and reverification test concepts for coordinate measuring systems. Parts of ISO 10360 also address imaging probing systems.
• ASME B89 series for dimensional metrology guidance used widely in North America.
• ISO 1101 for GD&T interpretation and tolerancing rules used on engineering drawings.
