Fundamental Theory of Drop Weight Testing
The core concept is remarkably easy to wrap your head around, but ensuring the results are flawlessly spot-on is where the genuine engineering value shines. You take a substantial mass of metal, such as a precisely calibrated tup, raise it to a specific height using highly adjustable lift mechanisms, and release the catch.
That stored potential energy turns into a high-velocity descent as it drops. When it finally makes contact, all that force gets absorbed by your PVC or HDPE pipe test piece. Whether the polymer deflects slightly or completely shatters, the information revealed on your workstation is sheer perfection.
Impact Measurement Methodologies
The way our advanced recording setups capture the strike force is satisfyingly spot on, offering a strong but not confusingly cluttered output, while the material analysis remains comprehensive all the way through.
- The Direct Method: We place sensors, which you can think of as ultra-sensitive receptors, right inside the part that strikes the sample to catch the exact moment of contact. You have to be very cautious with how the striking-head is shaped, but when you get it right, the materials you’re testing end up laying bare their full performance history.
- The Indirect Method: Instead of tracking the hit directly, we look at how fast the weight was travelling or how the support base reacted to the strike. It takes a bit more analytical processing to calculate, but it’s a brilliant way to confirm that your info is 100% legitimate.
System Configurations and Standards

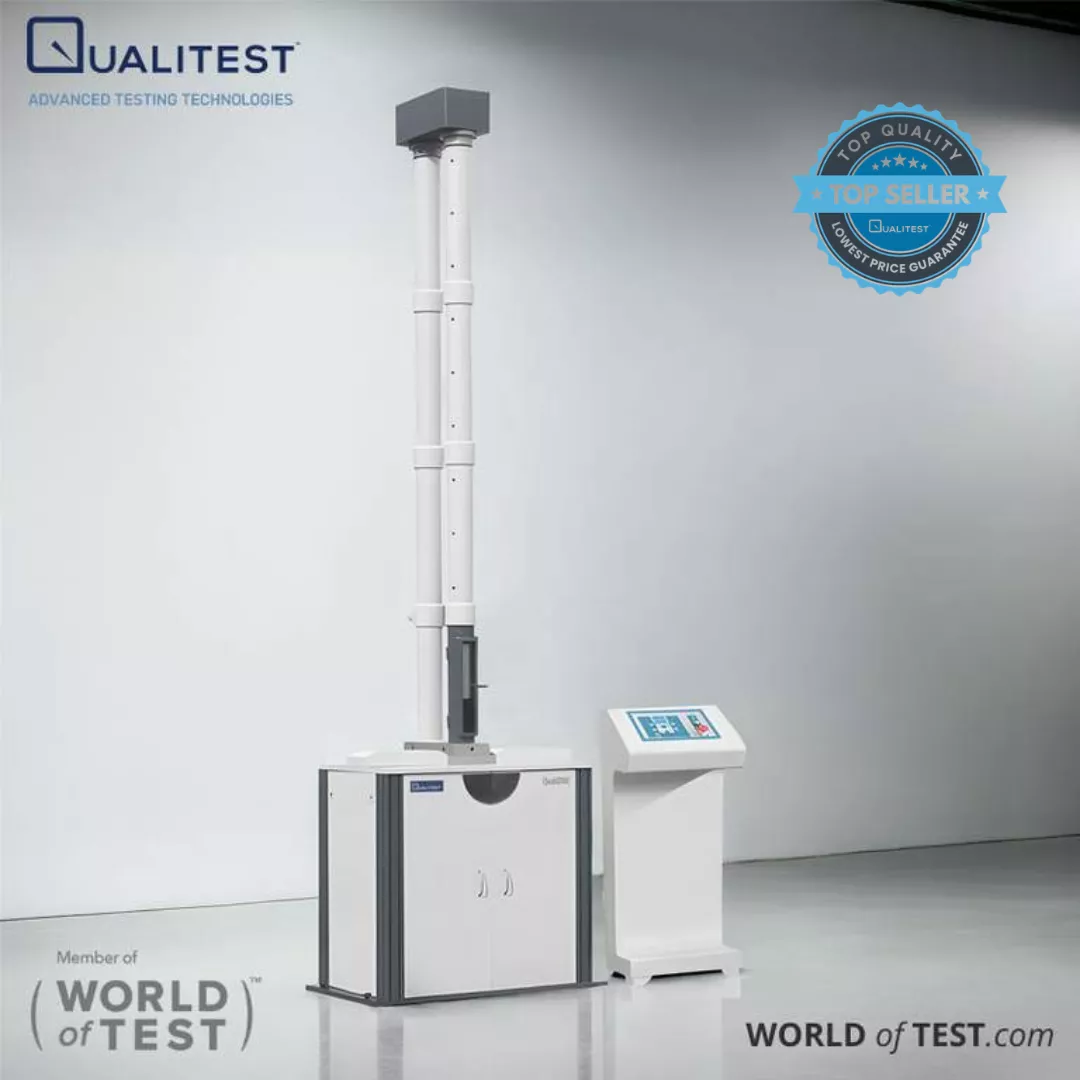

Because standard plumbing pipes don’t break the same way as thick electrical conduits, your Falling Weight Impact Tester needs to change its setup based on what’s on the test stand:
- ISO 3127 Standards: The 300C model is configured specifically for these requirements. It provides flawlessly consistent blows to circular cross-sections to test external blow resistance.
- ASTM D2444 Requirements: The 300D model is built to satisfy these guidelines. You can load it with tups weighing 6, 12, 20, or 30 lbs, ensuring that thermoplastic fittings receive the exact amount of force required by regulatory standards.
- UL651A High-Density Conduits: The 300UL steps up the intensity, dropping masses up to an impressive 34 kg on thick HDPE conduit. It can endure intense strikes without losing its calibration.
Ensuring Data Accuracy
Let’s be honest because sometimes plastics are unpredictable. One day a batch of PVC holds up remarkably well, and the next day it snaps unexpectedly. That’s why a high-quality, heavily built Falling Weight Impact Tester is an absolute lifesaver.
Our systems use cleverly engineered striker noses and customizable extra weights, ranging from a light 0.5kg touch up to a heavy 16kg smash, so you don't get a cluttered or mismatched signal.
We’ve ensured the way the weight sits and the way the pipe is clamped is so exceptionally steady that you won't have to worry about the numbers being all over the map. You get a clean, beautiful picture of exactly how much stress your materials can handle before they finally reach their limit.
