The Theory Behind the QualiDuctilometer™ Lineup
Keeping incredibly close tabs on the exact distance your asphalt binder can stretch is the single factor that makes or breaks the long-term survival of a finished highway.

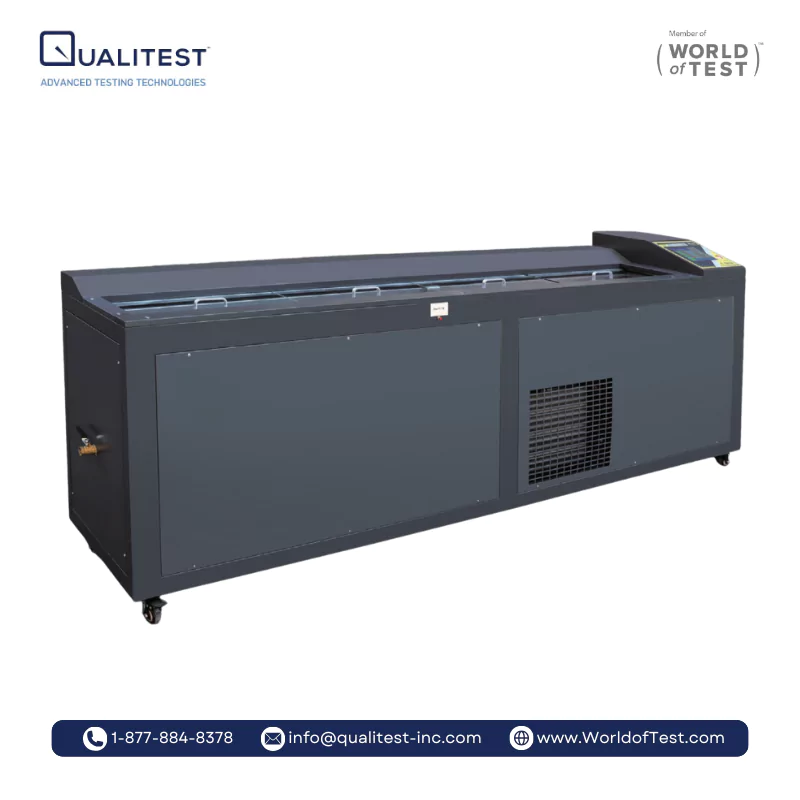

When you perform a routine evaluation on a commercial-grade Ductility Testing Machine, you are tracking the precise physical distance an adhesive binder specimen can drag out before it completely tears in two. An unusually long stretch-distance proves you have an incredibly flexible, highly forgiving substance that prevents the finished roadway surface from fracturing when brutal winter freezes arrive.
The actual testing theory relies on heavily automated structural features that make daily laboratory routines highly efficient and straightforward:
- The Standard Pull Theory: Models like the QualiDuctilometer™ C and QualiDuctilometer™ D allow you to execute three evaluations simultaneously. The underlying method dictates an incredibly steady pull, which is handled by an industrial stepper motor, while a partitioned stainless steel water tank with chilled water circulation keeps your testing environment perfectly even.
- The High-Capacity Stretch Method: Do you require extra stretching distance for highly modified binders? The QualiDuctilometer™ D drags out to a full 2.0 meters, giving you plenty of physical runway for those extremely flexible, elastomeric substances.
- The Pulling Tension Tracker (Force-Ductility Theory): By utilizing the QualiDuctilometer™ E-L, you gain access to a built-in force measurement tool equipped with a sliding plate transmission mechanism. This specific method tracks how the binder specimen resists tension as you physically stretch it, feeding you the exact tension profile hidden inside that microscopically thin binder film.
Satisfying extremely strict regulatory demands is easy when outfitting your testing facility with a unit from the QualiDuctilometer™ lineup.
Following International Testing Standards
The methodology strictly follows critical international rulebooks like ASTM D113 and AASHTO T51 for standard stretch evaluations, alongside ASTM D6084 for the spring-back routine.
Here is exactly how the testing method unfolds step-by-step using our advanced mechanical setups:
- Prep the Specimen: You melt the adhesive asphalt binder, coat the brass briquet molds, pour the heated liquid in, and let it cool completely to room temperature.
- The Water Bath Soak: You place the cooled metal molds directly into the stainless steel sink. Thanks to our dual-pump system and high-performance compressor, the external and internal water circulation keeps the testing temperature perfectly uniform without any annoying hot spots.
- The Elongation Stage: The machine drags the specimen along an external screw and a linear slide rail for an incredibly smooth, jitter-free physical movement. Once it completely fractures, you read the final stretch length directly off the industrial touch screen, and you can even lock the numerical data remotely via a hand-held controller for maximum accuracy.
- The Retraction and Recovery Phase: For the spring-back method, you drag the sample out at a steady speed of 5 centimeters every single minute, snip the thin thread right in the middle, and let it sit completely undisturbed for a full 60 minutes before measuring how much the two severed ends physically retract.
Interpreting the Testing Parameters
| The Specific Evaluation | What It's Actually Looking At | Practical Interpretation |
|---|
| Stretch-to-Break Number | How far it pulls before completely snapping | High elongation values prove you have an incredibly flexible material that resists cracking under brutally heavy traffic loads. |
| The Snap-Back Value | How much it physically shrinks back | Massive percentages mean the material has got that springy, elastomeric behavior that laughs at heavy commercial trucks. |
| The Pulling Force Chart | Tracks the actual physical struggle of the pull | Gives you a crystal-clear look at how the binder handles intense stress (perfectly handled by the QualiDuctilometer™ E-L). |
Keep in mind, though: This testing procedure relies heavily on empirical data and can become quite sensitive if the water bath temperature or the motor speed fluctuates even slightly.
For highly modified binders, a simple stretch test might not reveal the entire performance picture. However, to maintain strict regulatory compliance, having a completely automated Ductility Testing Machine in your laboratory remains absolutely essential.
