Elmendorf Tear Tester – QualiELM™ Digi II

Elmendorf Tear Tester – QualiELM™ Digi-II
Parent Product
Elmendorf Tear Tester – QualiELM™ Series
Standards
ASTM D1424
ASTM D1922
ASTM D689
ISO 1974
ISO 6383-2
View PDF

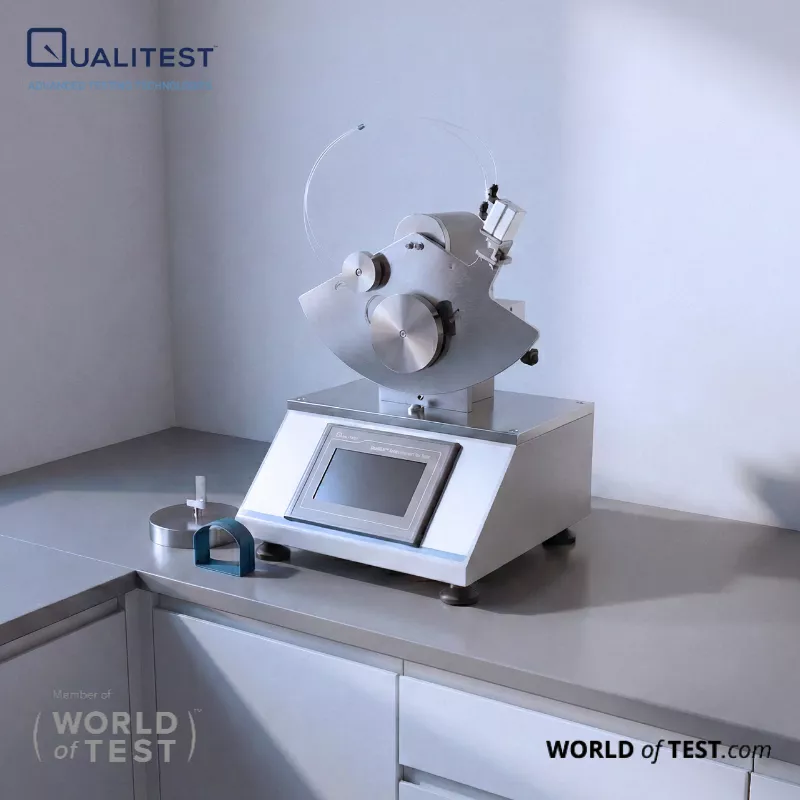

Elmendorf Tear Tester – QualiELM™ Digi-II

QualiELM™ Digi-II - Elmendorf Tear Tester is a precision Elmendorf-type Tear Tester designed to accurately measure the tear resistance of films, paper, textiles, and flexible materials. Tear resistance, also known as tear strength, quantifies a material’s ability to resist the propagation of an existing cut when subjected to a defined load, making it a critical indicator of durability and in-use performance.

Using the proven pendulum method, the QualiELM™ Digi-II Series measures the energy loss as a pendulum tears a pre-slit specimen over a fixed distance. This standardized approach provides highly repeatable, operator-independent results, supporting material selection, quality control, and product development across packaging, paper, textile, and industrial material applications.

Elmendorf Tear Tester – QualiELM™ Digi-II

Elmendorf Tear Tester – QualiELM™ Digi-II Applications

  • Plastic Films and Sheets
    • Measures tear resistance of PE, PP, PET, and PVC films up to 1 mm thick for packaging and lamination quality control, in accordance with ASTM D1922 and ISO 6383-2.
  • Composite Films and Foils
    • Evaluates barrier, multilayer, and metallized films used in food, medical, and industrial packaging applications.
  • Paper and Paperboard
    • Determines internal tearing resistance of coated and uncoated papers, cardboard, and nonwovens for cartons, labels, and filtration media, following ASTM D689 and ISO 1974.
  • Textiles and Nonwovens
    • Assesses tear strength of woven, knitted, and nonwoven fabrics for apparel, geotextiles, and medical substrates in compliance with ASTM D1424.
Elmendorf Tear Tester – QualiELM™ Digi II Elmendorf Tear Tester – QualiELM™ Digi II Elmendorf Tear Tester – QualiELM™ Digi II

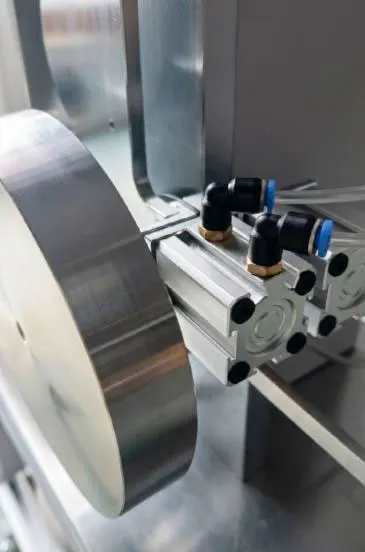

Pneumatic Clamp

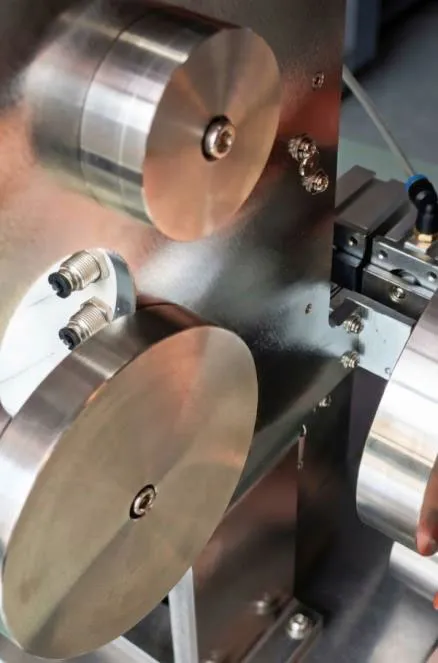

Pendulum and Weight

Elmendorf Tear Tester – QualiELM™ Digi II Elmendorf Tear Tester – QualiELM™ Digi II

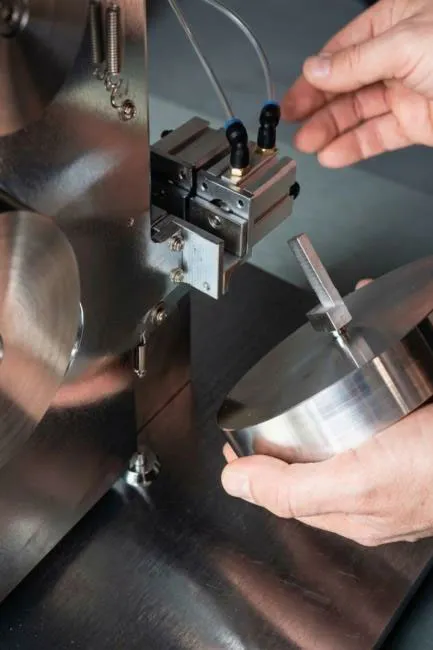

Calibration Weight

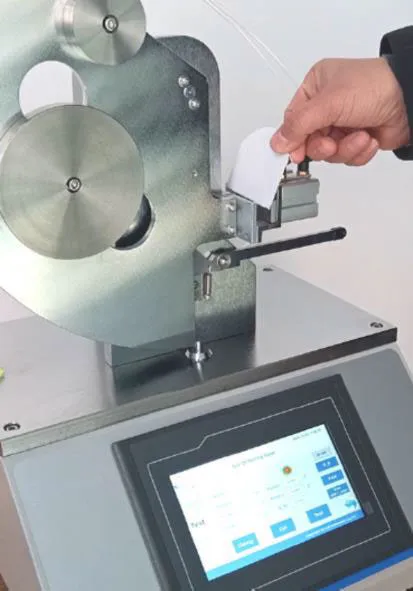

Paper Sample Test

Standards:

  • ASTM D1922 — Specifies the Elmendorf tear test method for measuring the tear resistance of plastic films and thin sheeting by determining the force required to propagate a tear.
  • ASTM D1424 — Describes the Elmendorf tearing strength test for textiles, measuring the force needed to continue a tear in woven and nonwoven fabrics.
  • ASTM D689 — Covers the determination of internal tearing resistance of paper and paperboard using a pendulum-type tear tester.
  • ISO 1974 — Specifies a standardized pendulum method for measuring the internal tearing resistance of paper materials for quality and performance evaluation.
  • ISO 6383-2 — Defines the Elmendorf method for determining tear resistance of plastic films and sheets under controlled pendulum conditions

Elmendorf Tear Tester – QualiELM™ Digi-II Key Features

  • Pendulum-Based Elmendorf Design
    • Provides industry-recognized tear resistance measurement with high repeatability.
  • PLC Control with HMI Touchscreen
    • Industrial-grade control system ensures stable operation and intuitive test setup.
  • Pneumatic Specimen Clamping
    • Delivers uniform grip pressure for consistent and reproducible tear results.
  • Automatic Pendulum Release
    • Eliminates operator variability and improves measurement accuracy.
  • Multiple Pendulum Capacities
    • Supports a wide force range for thin films, paper, and heavier materials.
  • Calibration Weight Included
    • Enables quick verification of force ranges to maintain long-term accuracy.
  • Automatic Result Statistics
    • Built-in software calculates average tear values and test outcomes.
  • Optional Data Output
    • Micro-printer and RS-232 interface available for reporting and traceability.
  • Paper-Specific Units (Optional)
    • Supports mN and tear index outputs for pulp and paper testing standards.

Theory and Method

The QualiELM™ Digi-II Series operates on the Elmendorf pendulum tear method, originally standardized in the 1930s and still regarded as a benchmark for tear testing. A specimen is first prepared with a defined slit positioned a fixed distance from the edge. When the test begins, a PLC-controlled pneumatic latch releases the pendulum, which swings through the specimen under gravity.

As the pendulum propagates the tear, the instrument precisely measures the loss in potential energy. This energy loss is automatically converted into average tear force values, expressed in grams-force (gf) or millinewtons (mN). Embedded software performs statistical calculations and displays final tear resistance results without manual data handling.

Elmendorf Tear Tester – QualiELM™ Digi-II Technical Specifications

ParameterSpecification
Test MethodElmendorf pendulum tear method
Pendulum Capacity200, 400, 800, 1600, 3200, 6400 gf
Tearing Arm Length104 ± 1 mm
Initial Tearing Angle27.5 ± 0.5°
Specimen ClampingPneumatic
Control SystemPLC with HMI touchscreen
Gas Source0.6 MPa
VoltageAC 110–220 V, 50/60 Hz
Data OutputTouchscreen display (optional printer & RS-232)
Applicable StandardsASTM D1922, ISO 6383-2, ASTM D1424, ASTM D689, ISO 1974
