Operational Mechanism of the Pendulum Tear Test
Instead of pulling materials apart, this gravity-driven swinging weight procedure provides a far more consistent evaluation than standard tensile pulling machines. Every single millimeter of the sample gets sliced cleanly with no trace of uneven, erratic tearing across the specimen.
The Testing Sequence Step-by-Step:
- Specimen Securement: You secure your sample piece tightly between a locked stationary grip and a movable grip hitched directly to the swinging mass. In advanced configurations like the QualiELM™ Digi-I Digital Elmendorf Tear Tester, this step utilizes computer-controlled pneumatic clamps to effectively mitigate systematic operational errors resulting from human handling.
- Automated Release: An automated pendulum release mechanism initiates the drop, swinging the pendulum from a precise 27.5° initial resting angle.
- Clean Propagation: The pendulum rips the material starting from a neat, pre-sliced starter cut.
- Energy-Loss Calculation: The integrated system calculates the final resistance numbers based strictly on the drop in swing energy between a completely empty calibration swing and a swing that actually had to propagate the tear through your physical sample.

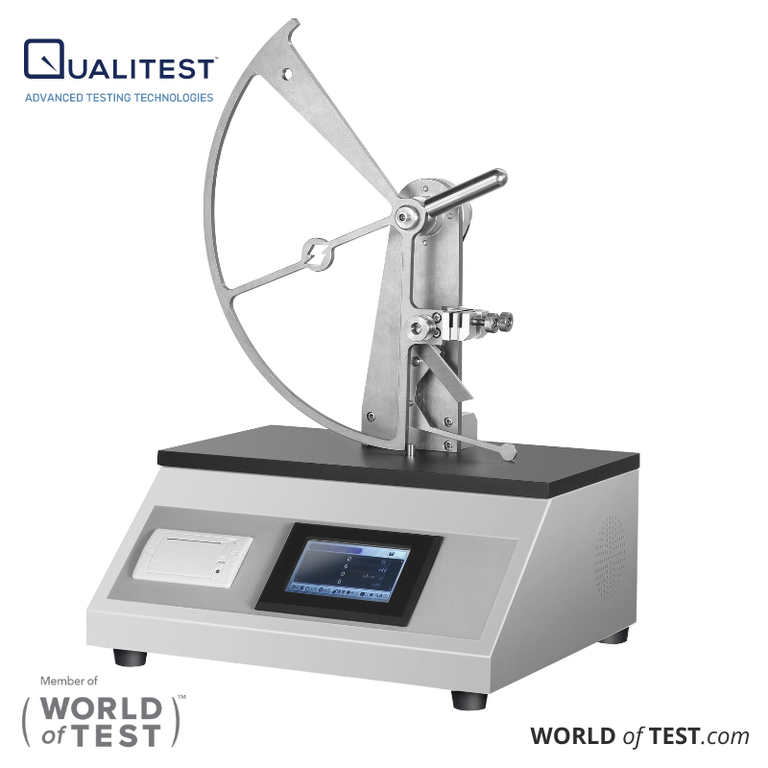

The QualiELM™ Digi-I features an LCD display that presents real-time numerical test data and physical resistance curves, proving this testing logic accurately measures lost kinetic energy rather than trying to read a direct, jerky pulling force, keeping the mechanical indication error within a remarkably tight ±0.5%.
Material-Specific Testing Methods
This kinetic energy-loss procedure adapts effortlessly across different flexible sheets, such as cellulose paper, non-woven fabric, or thin plastics.
Woven Fabrics & Textiles (ASTM D1424):
- The established method requires a test specimen measuring approximately 100 mm by 75 mm, featuring a tiny 20 mm pre-sliced starter cut.
- Clamp it securely, initiate the swing, and average out five separate trials for both the lengthwise and crosswise threads.
Paper & Cellulose Sheets (ASTM D689 / TAPPI T414):
- The material clamping depth has to sit exactly at a tight 15 mm.
- To achieve a swing that registers accurately on the physical scale without swinging through the material with negligible resistance, the standardized method requires operators to stack up several sheets of paper and tear them all at once.
- Advanced setups like the QualiELM™ series run the complex division math for you through automatic background data processing, completely removing the need to perform manual math equations.
- With an expansive physical testing range of 0-6400gf and a full set of included standard weights (from 110 up to 3470 grams), the machine's core method easily adapts to whatever specific thickness you need to evaluate.
The Physics and Theory of Tear Resistance
The core theory behind the final numbers isn’t just a simple one-and-done physical reaction; it is a highly sensitive physical energy transfer that changes depending on the specific testing variables.
Key Factors Affecting Tear Calculation:
- Velocity of Propagating Tear: The physical speed of the rip dramatically alters the final calculation, as slower tear propagations soak up a whole lot more of that downward swinging force.
- Shear Action and Oblique Tearing: When testing flexible plastic packaging films under ASTM D1922 or ISO 6383 rules, the mechanical theory classifies this tearing action as a slide-apart shear action, which is officially recognized as a mode III structural fracture. However, films with higher physical extensibility might stretch, bend, or slide in ways that cause oblique tearing effects instead of a clean, straight slice.
- Physical Deformation and Angle Shift: The physical angle of the tear and how the flexible sample bends as it's being ripped can shift the final energy-loss numbers quite a bit.
Despite these flexible material variables, the QualiELM™ Digi-I remains a highly practical, repeatable way to watch how a moving weight transfers its kinetic energy into a growing rip. With its integrated thermal printer, you instantly generate comprehensive report printouts the exact second your material test finishes.
