Essential EDI Pure Water System

Essential EDI Pure Water System - QualiPWS™ E-EDI Key Features

The QualiPWS™ E-EDI puts a self-regenerating polishing stage behind a straightforward RO train and runs the whole thing from a standard wall outlet.

Full security protection

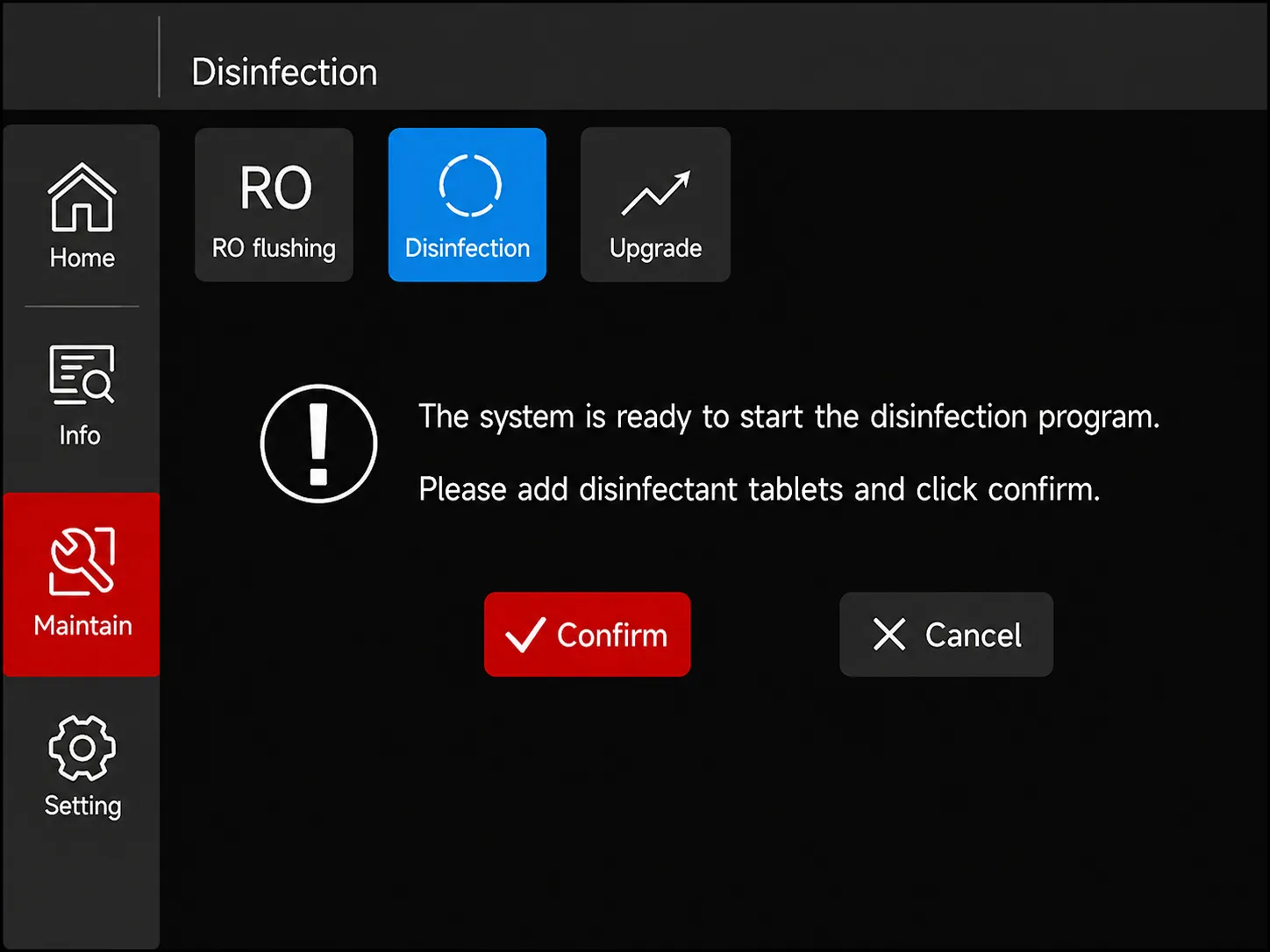

Professional ultrapure water circulation and disinfection function

• Self-Regenerating EDI Stack: delivers above 10 MΩ·cm with TOC under 30 ppb, needing no softener, no chemical dosing, and no resin replacement for that stage
• Predictable Running Cost: the polishing stage draws current instead of consuming cartridges, which flattens the cost curve between service visits
• Universal Voltage Input: 120 W from any 100 to 240 V supply, so installation needs no dedicated high-voltage circuit
• 10 or 20 L/h Output: up to 480 liters over a full day for laboratories that draw steadily rather than in bulk
• Single-Pass RO Stage: rejects 98 to 99 percent of dissolved ions and better than 99 percent of organics above 300 Dalton before the stack
• Two Water Grades on Tap: separate RO and deionized outlets, each with general and quantitative dispensing
• Two-Part Storage: a sealed 1.8-liter pressure tank inside the cabinet for instant draw, plus a 60-liter external tank for bulk reserve

Innovative Internet of Things (IOT) and cloud platform technology

Perfect consumables management

• 60-Liter Tank Build: a twin-wall HDPE vessel, UV inhibitor in the outer skin to keep algae from taking hold, virgin PE on the inside to limit leaching, a coned base with a drain valve, a wide sealing lid for hand cleaning, and an air filter that traps CO₂, organics, bacteria, and particles
• Tank Metering: its own pressure sensor and level control feed an LCD showing height, litres held, and percent full
• Tank UV Option: a lamp module for the reservoir that knocks back bacterial growth in stored water
• 5-Inch Resistive Touchscreen: 480 × 272 color display, with operating state and live parameters reachable without digging through submenus
• Continuous RO Rejection Tracking: the ion rejection figure is displayed and alarmed, giving early warning that the membrane is losing ground

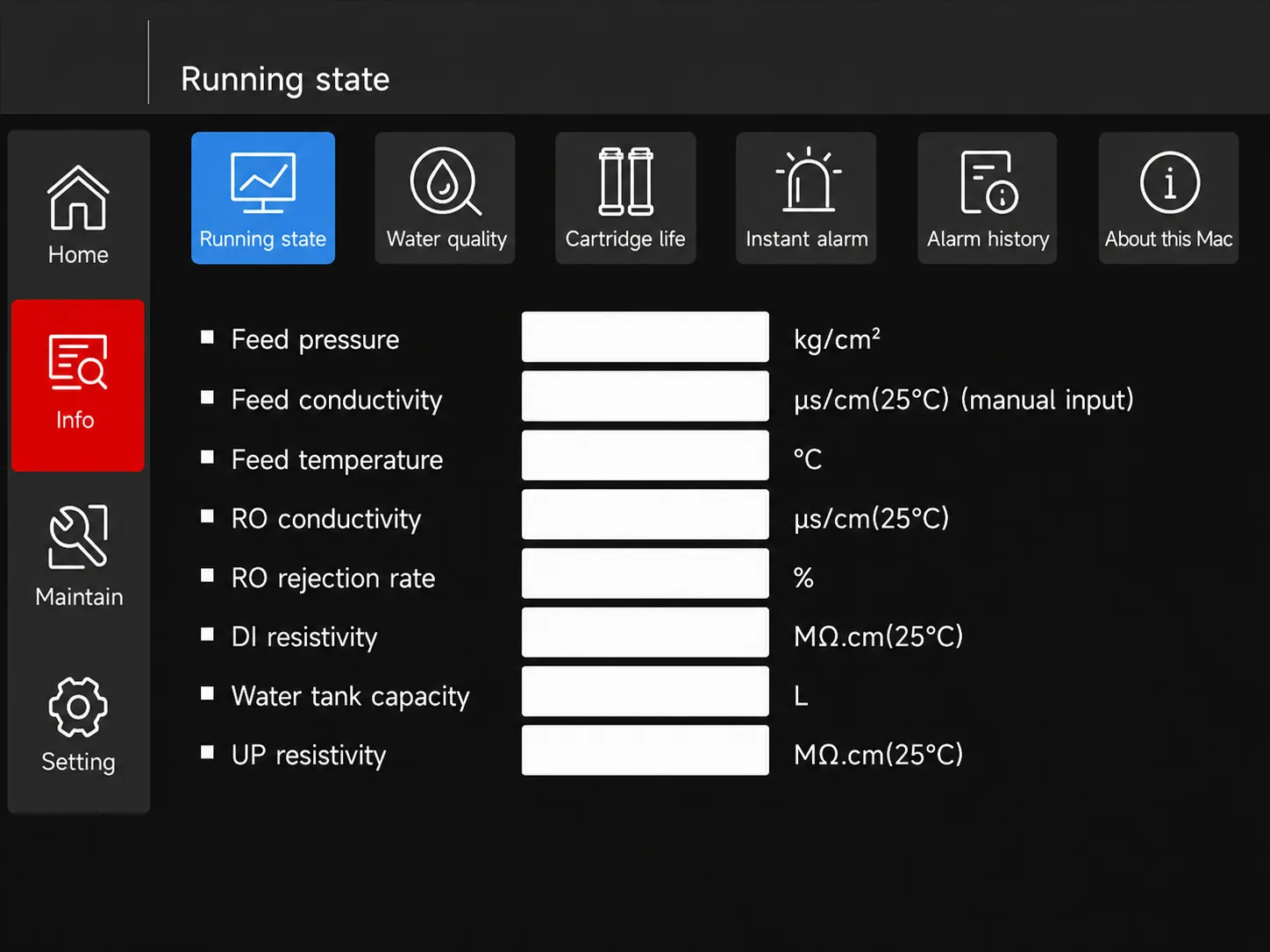

• Quality Sensing at Three Points: the feed, RO, and product lines each carry a 0.01 cm⁻¹ conductivity cell resolving temperature to 0.1 °C, and the screen shows compensated conductivity, resistivity, and temperature side by side
• Preset Volume Dispensing: each outlet has its own flow sensor, so a target volume can be dialed in and repeated exactly
• Two-Body Pretreatment: solids come out in a 5 μm folded polypropylene cartridge, then chlorine and organics in a catalytic carbon fiber cartridge, splitting the duty across two 12-inch bodies for a longer interval
• Deep Ion-Exchange Capacity: three cartridge positions accept 1.36 liters of resin each, up to 4.08 liters, with a patented full-droop flow path that stops the bed stratifying
• Common Cartridge Body: a patented three-chamber housing takes pretreatment, RO, and ion-exchange packs alike, clamped in place and keyed so a cartridge cannot go into the wrong position

Traceable comprehensive data management

Comprehensive water quality monitoring and alarm

• Serial Code Verification: an encrypted long code on each cartridge proves it is genuine and writes its fitting date into the system log

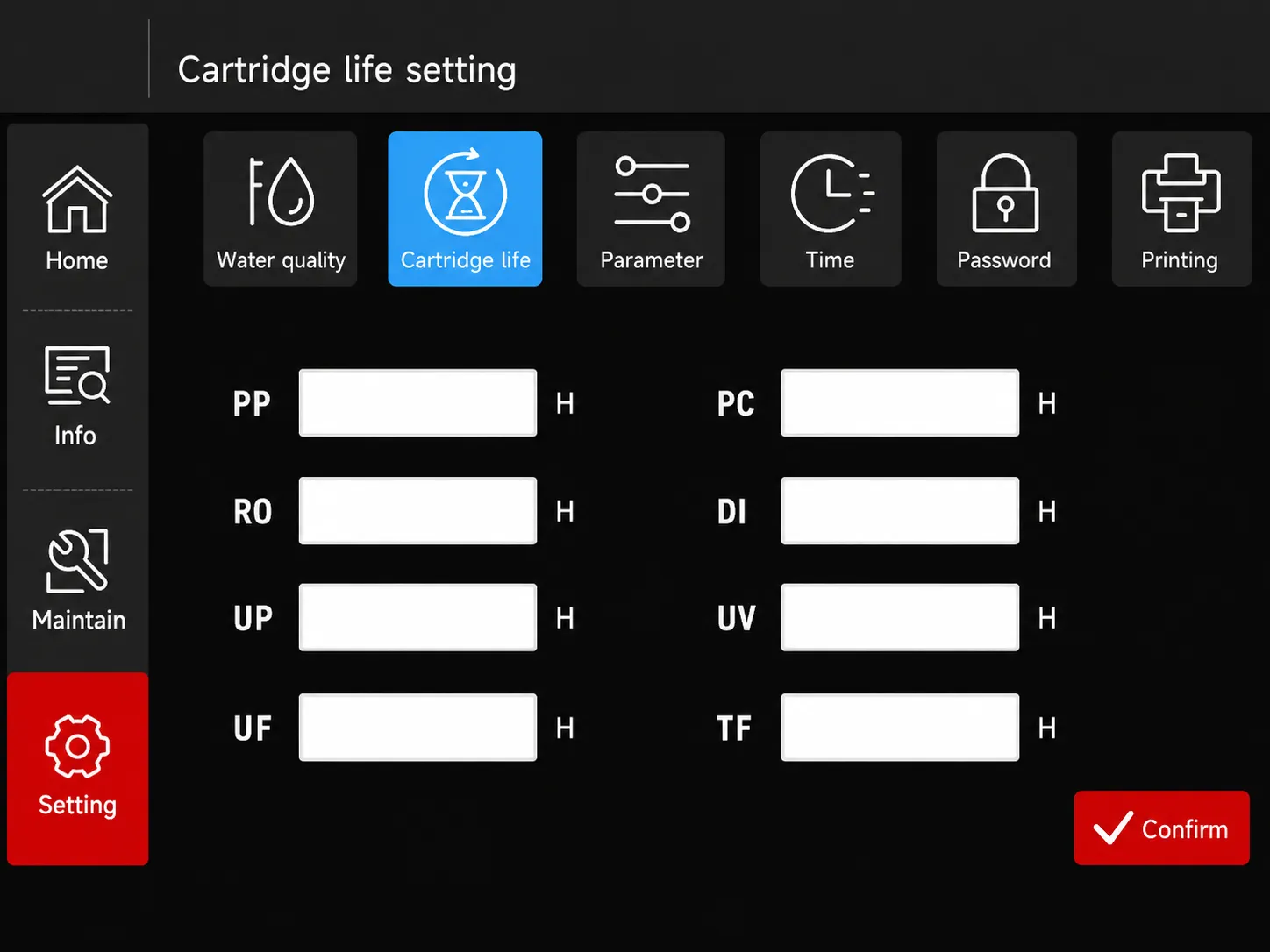

• Life Prediction on Every Consumable: the controller weighs measured water quality, hours run, and volume passed to work out what is left before a change falls due

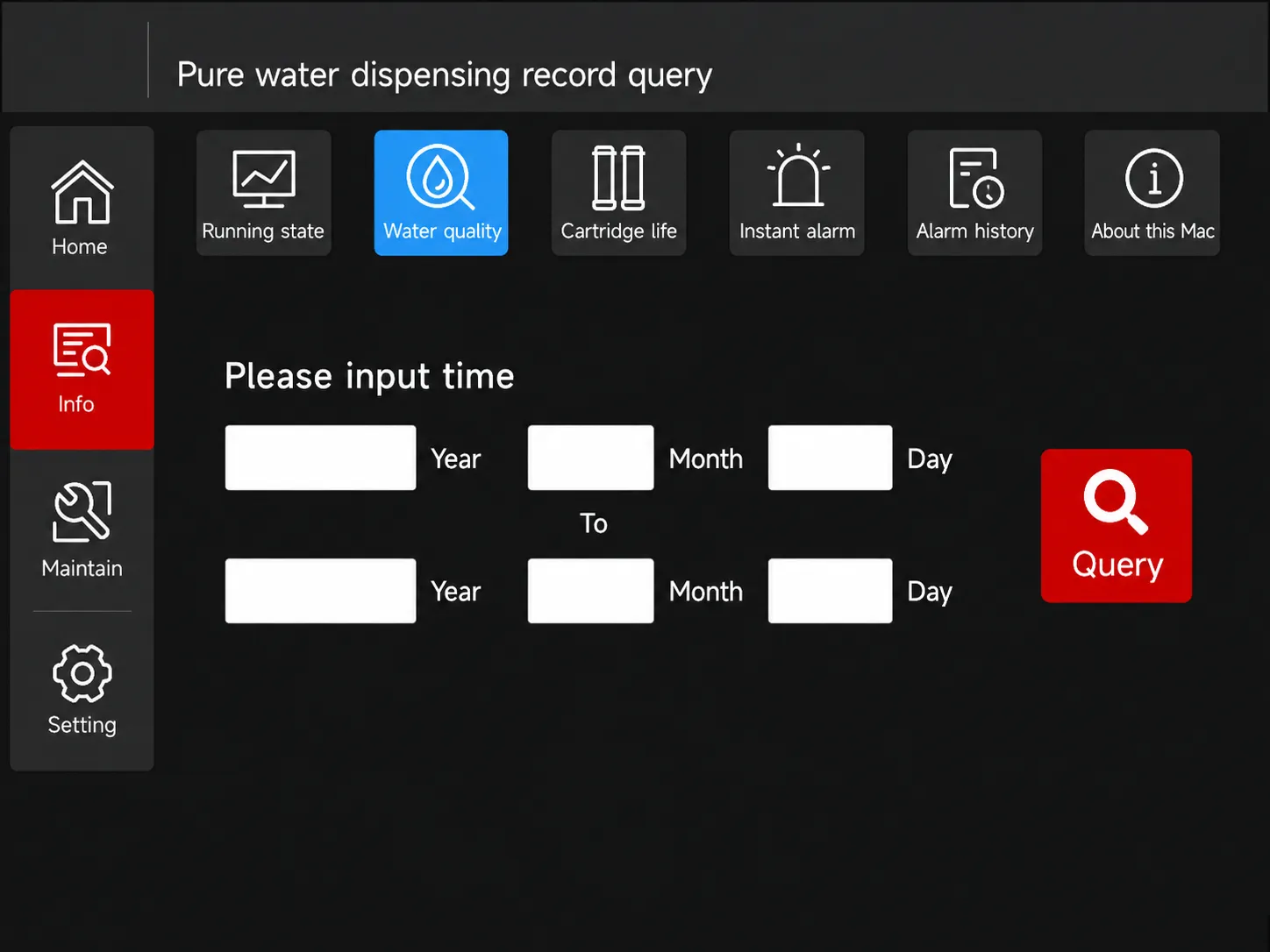

• Records and Remote Reach: three years of history covering dispensing, alarms, and cartridge changes, exportable to Excel over USB or retrievable from the cloud, with quality, volume, and operator stamped on each draw; the same Ethernet or WiFi link handles alarm callouts, service tickets, and LIMS or BMS traffic

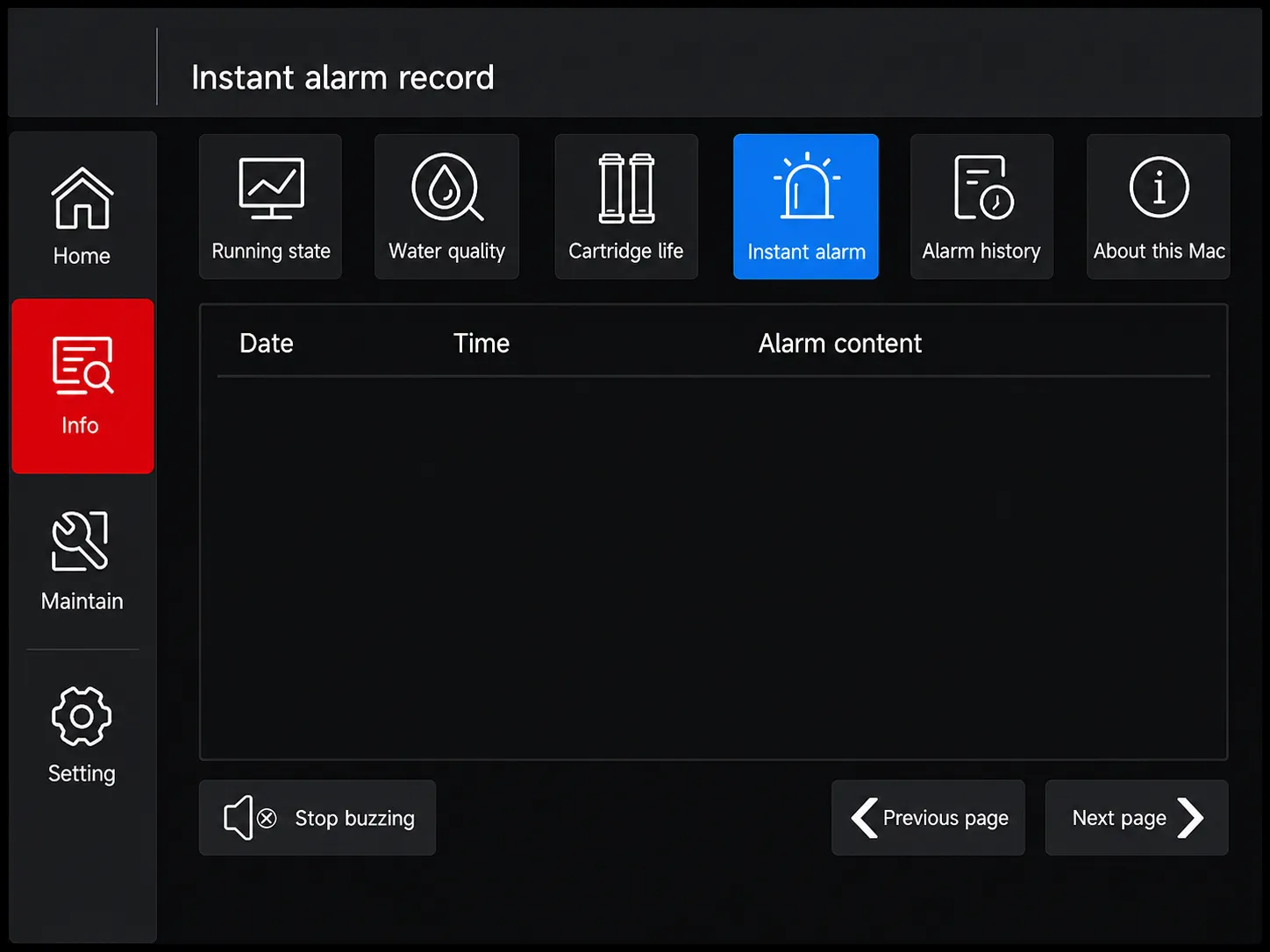

• Protected Operation: administrator and operator roles are separated, control components sit on a 24 V DC supply, and the alarm set spans feed loss, low inlet pressure, high system pressure, full tank, out-of-range feed, RO or product quality, and expired consumables
• Leak Alarm Option: an external detection device can be added where flooding risk warrants it
• Dispensing Arm Option: one to five arms per host, showing resistivity, temperature, flow, and volume on a color face, swinging through a full circle, kept fresh by circulation with the host, and fittable with a 0.2 μm terminal microfilter
• Ports and Sockets: USB for data and firmware, RJ45 or WiFi for the network, plus sockets for a dispensing arm, an external tank signal, and a foot switch
• Molded One-Piece Shell: rounded, sealed panels that keep splashes out and wipe clean in seconds
