Explosion Proof Battery Temperature Test Chamber – QualiEx™ PBC Climatic Series

The QualiEx™ PBC Climatic Series is an advanced explosion-proof battery test chamber, specifically engineered for safe and controlled testing of lithium-ion batteries, EV battery packs, and energy storage devices. Designed for high-temperature cycling, short-circuit assessments, and thermal abuse testing, it ensures secure and reliable battery performance evaluations while minimizing risks.

With automated safety systems, real-time monitoring, and compliance with global industry standards, the QualiEx™ PBC Climatic Series is a trusted solution for manufacturers, R&D laboratories, and regulatory agencies conducting battery safety and performance testing.

Areas of application

Types of applicable batteries

Each chamber is custom-built to meet specific testing requirements and can integrate with battery testers, data loggers, and other equipment for a complete testing solution.

Test Standards And Methods

Testing standards and methods are established by UL, IEC, SAE, and UN to verify performance under high-temperature short circuits, heat resistance, temperature cycling, and thermal abuse. These tests can lead to battery failure and pose risks to operators, making safety-focused chamber design essential.

Testing Standards for secondary Lithium batteries or modules

IEC 62133 – Short circuit test at 55°C; molded case stress test at 70°C
UL 2054 – Standard for household and commercial batteries
UL 1642 – Safety standard for lithium batteries
IEC 62660-2 – Secondary lithium-ion cells for the propulsion of electric road vehicles—Part 2: Reliability and abuse testing
SAE J2464 – EV & HEV Rechargeable Energy Storage System (RESS) Safety and Abuse Testing Procedure
IEC 61960 – Secondary cells and batteries containing alkaline or other non-acid electrolytes Secondary lithium cells and batteries for portable applications
UN/DOT 38.3 – UN Lithium Battery Tests for Lithium metal and lithium ion batteries

Why Choose the QualiEx™ PBC Climatic Series?

Explosion-proof and fire-resistant design for secure testing
Supports high-temperature, short-circuit, and overcharge stress testing
Integrated real-time monitoring for accurate data collection
Customizable for various battery types, from consumer electronics to EV battery packs
Meets industry safety standards for regulatory compliance

The QualiEx™ PBC Climatic Series combines cutting-edge safety, precision, and compliance in an explosion-proof battery test chamber, making it an essential solution for manufacturers, researchers, and certification labs.

Explosion Proof Battery Temperature Test Chamber – QualiEx™ PBC Climatic Series Features

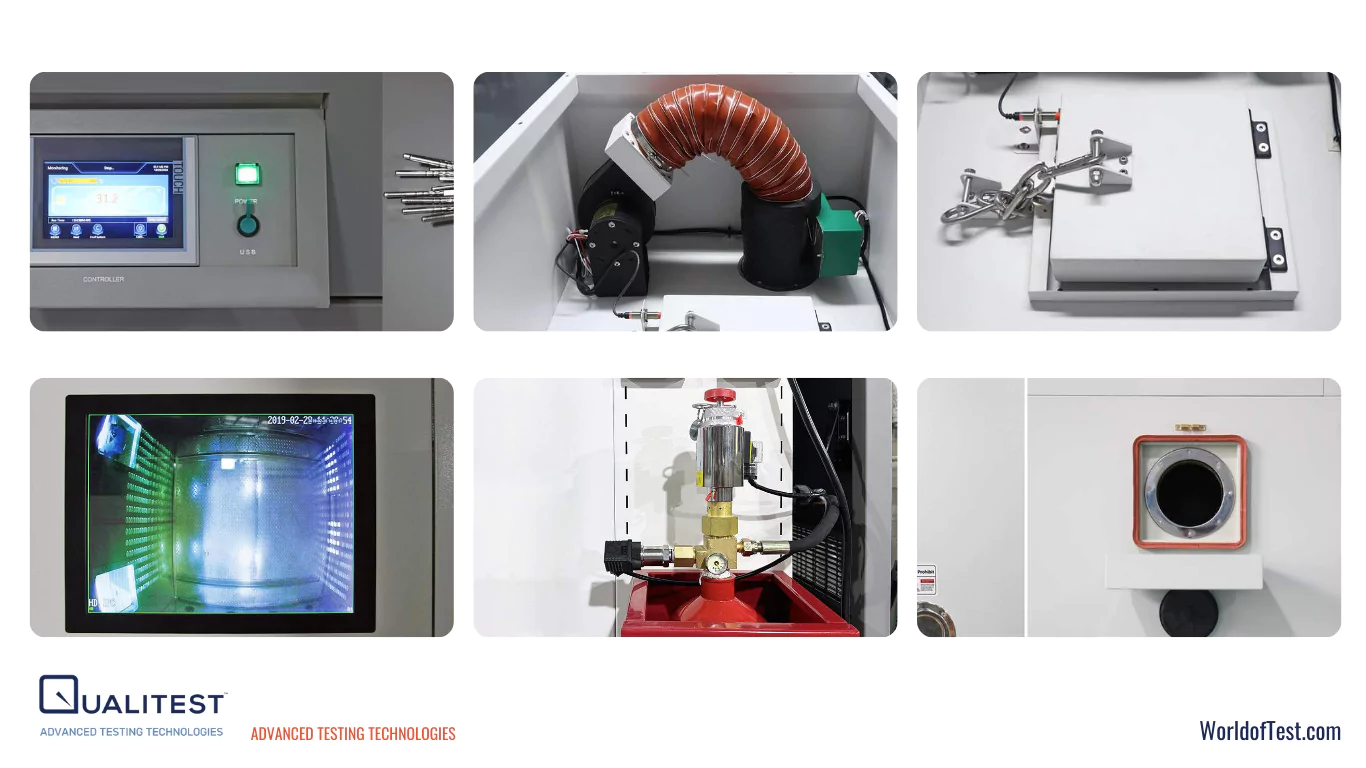

Safety Features And Options

We incorporate safety features into each chamber to support battery reliability and abuse testing. Design considerations are based on specific testing requirements, with safety measures tailored to the hazard level. These features can be integrated into test chambers to minimize potential risks.

Hazard Classification	Descriptions	Determine Standards
0	No effect	No effect & No loss of functionality
1	Passive Protection Activated	No defect; no leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell reversibly damaged. Repair of protection device needed.
2	Defect/Damage	Same as hazard classification 1; however, the cell is damaged irreversibly and must be replaced.
3	Leakage, Loss of Mass < 50%	No venting, fire, or flame; no rupture; no explosion. Weight loss <50% of electrolyte weight
4	Leakage, Loss of Mass > 50%	No fire or flame; no rupture; no explosion. Weight loss > 50% of electrolyte weight
5	Fire or Flame	No rupture; no explosion (i.e. no flying parts)
6	Rupture	No explosion, but flying parts of the active electrode mass
7	Explosion	Explosion (i.e. disintegration of the cell)

Multiple point temp detector on specimen surface

We provide multiple channels for detecting and recording specimen temperature.

Pressure Release Port

Reusable Pressure Release Port – Designed for repeated use.
Top-Center Pressure Release – ≥0.03m² release area; activates within ≤2ms when chamber pressure reaches 104–108KPa, ensuring immediate pressure relief to prevent damage and protect operators.
Explosion-Proof Chains – 8mm reinforced chains on the door and pressure release port to prevent detachment under high-pressure battery explosions.

Explosion-proof panel

A certified explosion-proof panel instantly releases pressure after an explosion, directing high-pressure air safely through the exhaust pipe.

Explosion-proof hinge, extra protection

The doors feature an explosion-proof design with an additional hinge. A mechanical limiter in the hinge restricts the opening range in case of an explosion, enhancing operator safety.

CO2 Fire Extinguisher

If smoke or fire is detected, the chamber will automatically shut down, and the fire suppression system will activate.

CO, H2 or other flammable air detector

The chamber is equipped with a Honeywell flammable gas detector. If gases such as H₂, CO, HF, COx, or SOx reach a critical concentration, an alarm will trigger, and the exhaust system and fire suppression may activate automatically.

Auto smoke exhausting system

The chamber features an automatic smoke exhaust system on the top, including a ventilator, smoke release port, and ductwork connected to the pressure release port and other chambers. When automatic or manual exhaust is activated, the system expels smoke to protect operators. The ducts can also be connected to a smoke treatment device to prevent environmental damage.

High resolution camera

A high-resolution camera can be installed, covering more than 60% of the chamber for real-time monitoring.
The camera supports infrared (IR) functionality and mobile app integration for remote access.

Electric Lock

Operators can set a password for the electric lock to prevent unauthorized access during testing.
