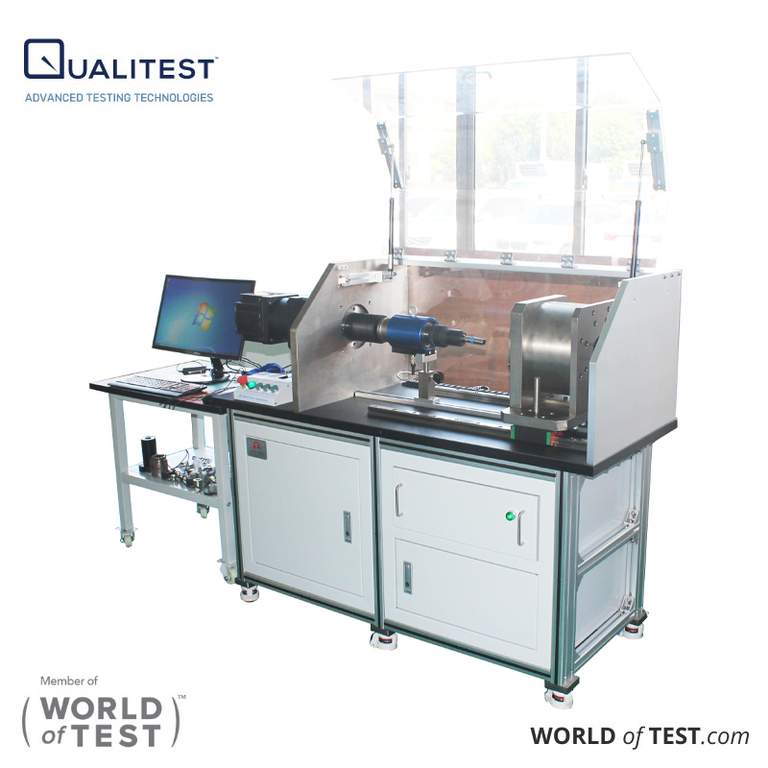

Fastener Torsion Tester QualiFTT™
Torsion Testing Machine QualiFTT™ is used to verify the suitability of high-strength bolt, nut, and washer assemblies for pre-loaded bolted connections in metallic structures. This test ensures that the fastener assembly behaves as expected, allowing the required pre-load to be reliably achieved using the tightening methods specified in ENV 1090, while providing sufficient margins against over-tightening and failure.
The torque is generated by a servo motor and gear box. The torsional angle is directly measured from the servo motor, and both the bolt force and torque are directly obtained from load cells.
 |  |
QualiFTT™ 10000Nm machine designed according to EN 14399-2 | QualiFTT™ 5000Nm machine designed according to ISO 16047 |
Applications
EN 14399-2 High-strength Structural Bolting Assemblies for Preloading - Part 2 Suitability Test for Preloading.
ISO 16047 Fasteners - Torque/clamp force testing.
Determination
QualiFTT™ Fastener Torsion Tester is used to verify the suitability of high-strength bolt, nut, and washer assemblies for pre-loaded bolted connections in metallic structures. The purpose of this test is to check the behavior of the fastener assembly to ensure that the required pre-load can be reliably obtained using the tightening methods specified in ENV 1090, with sufficient margins against over-tightening and failure.
The torque is generated by a servo motor and gear box. The torsional angle is directly measured from the servo motor, and both the bolt force and torque are directly obtained from load cells.
