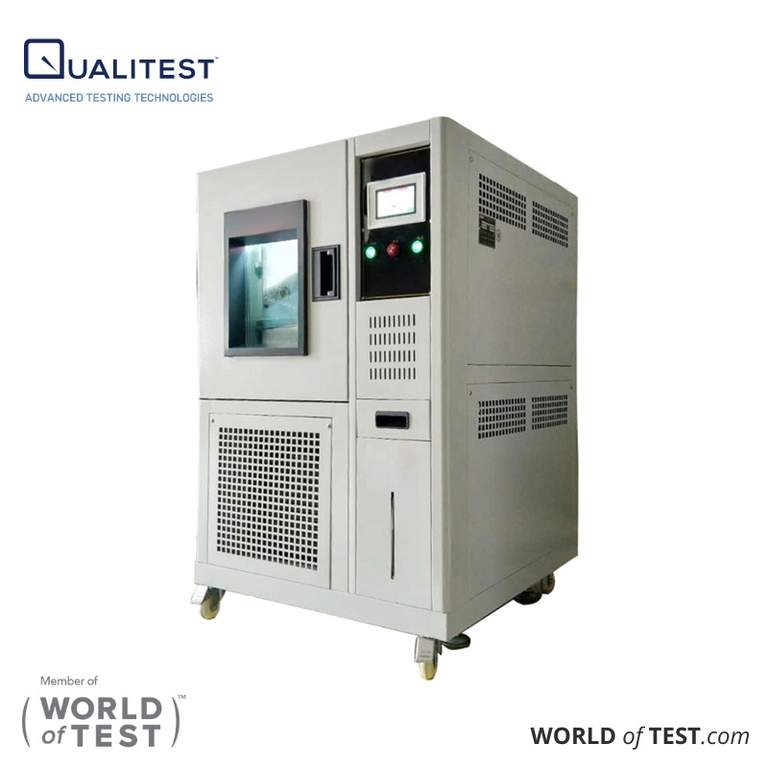

Vertical Freezing Tester
Vertical Freezing Tester is designed to test the bending and flexing durability of materials like rubber, plastic, shoes, synthetic leather, and more in a controlled cold environment. Its vertical structure makes it easy to install specimens without the need to crouch or bend, ensuring a more convenient and efficient testing process.
Regular Flexing / Bending Accessories
|

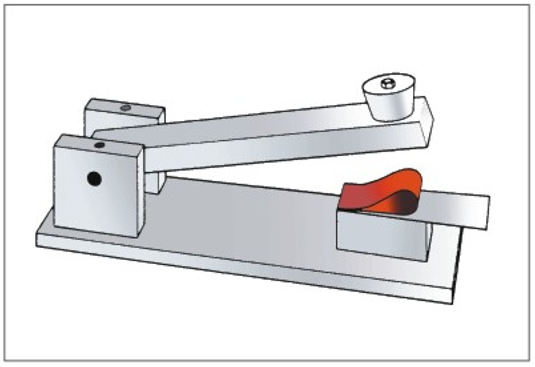

Striker
|
| Purpose |
Strike specimen for inspection of cracks |
| Dimension |
35.5 x 10.3 x 12 cm |
| Weight |
9 kg |
| Ref. spec. |
ASTM-D1593 |
|
|
Flexing Grip 6 Sets
|
| Sampling |
Leather flexing specimen 6 pcs |
| Bending speed |
100 cpm |
| Flexing Angle |
22.5° |
|
|

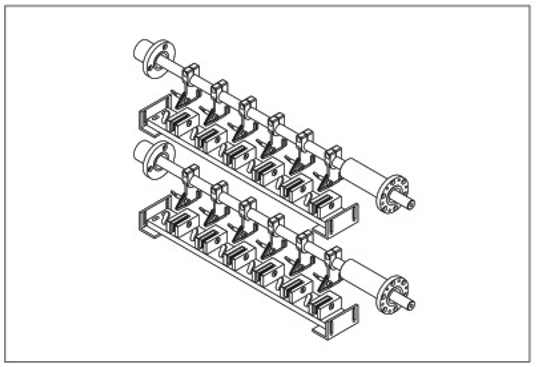

Flexing Grip 12 Sets
|
| Sampling |
Leather flexing specimen 12 pcs |
| Bending speed |
100 cpm |
| Flexing Angle |
22.5° |
|
|

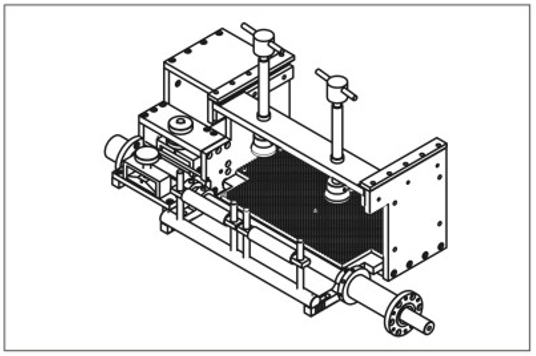

Shoe Bending / Ross Flexing (1 set)
|
| Sampling |
2 shoes, Ross flexing: 1 set |
| Flexing Angle |
90° |
| Bending speed |
60 cpm |
|
|

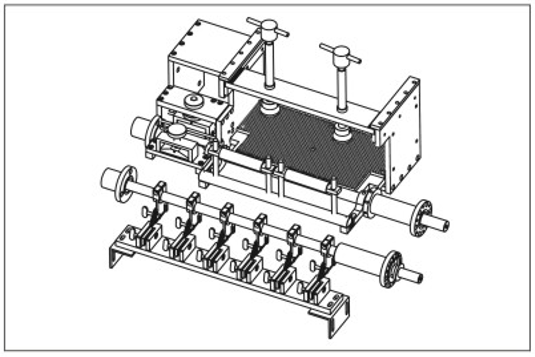

Flexing (3 sets) / Shoe Bending / Ross Flexing (1 set)
|
| Sampling |
Leather flexing: 3 sets, 2 shoes, Ross flexing: 1 set |
| Flexing Angle |
22.5° and 90° |
|
|

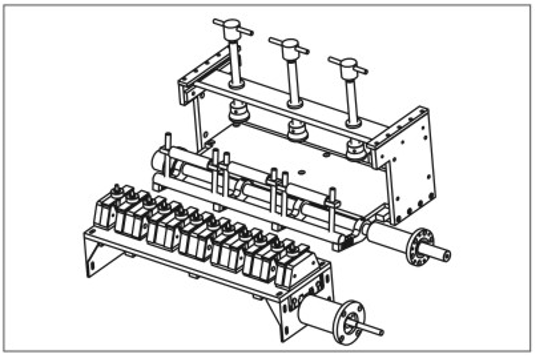

Flexing (6 sets) / Shoe Bending / Ross Flexing (1 set)
|
| Sampling |
Leather flexing: 6 pcs, 2 shoes, Ross flexing: 2 pcs |
| Flexing Angle |
22.5° and 90° |
|
|

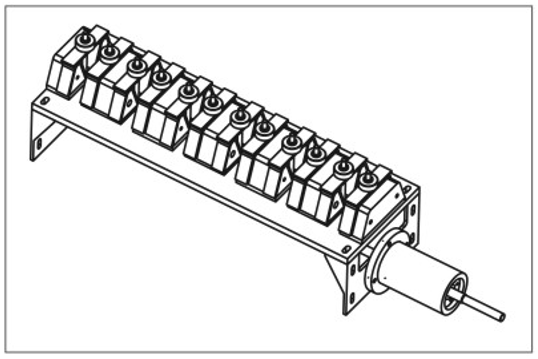

Vamp Flexing Grip (12 sets)
|
| Sampling |
Vamp (12 sets) |
| Specimen |
64 × 64 mm |
| Flexing Space |
19 ± 0.5 mm |
| Flexing Speed |
90 ± 9 cpm |
|
|
Vamp Flexing Grip (12 sets) / Shoe Bending Grip (3 sets)
|
| Sampling |
Vamp (12 sets), Shoe (3 sets) |
| Flex Space |
19 ± 0.5 mm |
| Bending Angle |
90° |
| Bending Speed |
60 cpm |
|
|

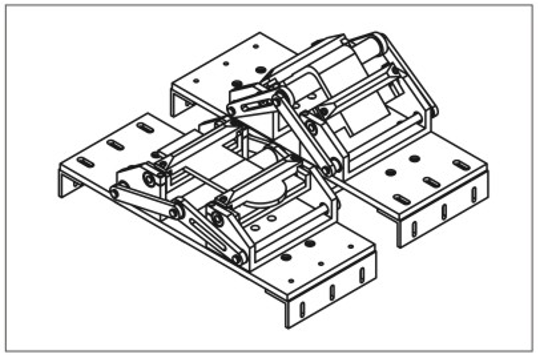

Outsole Flexing Grip (2 purchases)
|
| Sampling |
Outsoles (2 pcs) |
| Grip Space |
100 mm |
| Bending Angle |
90° |
| Bending Speed |
140 cpm |
|
