Consolidation Mechanism of the QualiGyra™ T312
Instead of relying on older, legacy hammer-drop testing setups, utilizing the Gyratory Compactor QualiGyra™ T312 to consolidate asphalt mixtures provides a highly consistent, mathematically verifiable approach. Each section of the mix is compressed using a steady, electro-pneumatic downward force. In its standard factory configuration, the system delivers a consistent 600 kPa load, operating at 30 rotations every sixty seconds while maintaining a specific 1.16-degree internal tilt angle. This combined mechanical action causes the angular aggregate faces to slide against one another, rotate in place, and gradually lock their outer edges together to form a highly stable structural network capable of supporting heavy highway traffic loads. The process yields a thoroughly consolidated laboratory cylinder without any weak or loosely bound zones inside the specimen.
Smart-sensor data and highly detailed computer simulations indicate that this consolidation process occurs in three distinct phases. The final, critical phase commences when the aggregate particles become sufficiently interlocked and resist further displacement. While the Gyratory Compactor runs its automated cycle, the contact stresses between the individual stones change in a steady, rolling sequence, allowing aggregate particles to slide downward while also migrating outward toward the edges of the heavy-duty metal mold. The system automatically tracks the specimen height throughout the cycle, instantly generating a clean, digital densification graph on the integrated color touch-screen display.
Key Operational Parameters

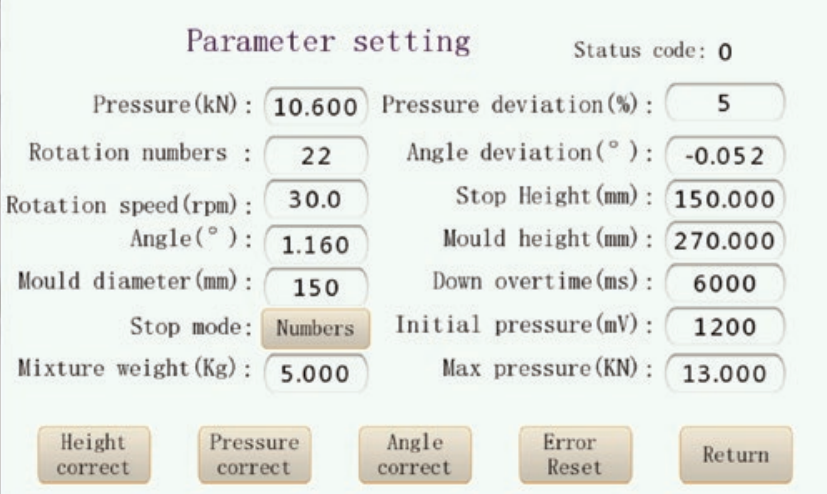

To deliver highly repeatable, EN-compliant test data, laboratory technicians must closely monitor several crucial parameters. The built-in Windows-based electronic control unit makes adjusting these variables exceptionally precise:
- The Total Rotation Count: Adjusting the total gyration cycles anywhere from 0 to 999 directly dictates the percentage of empty air voids left behind, the specific grade of liquid asphalt binder required, and the long-term performance of the road surface under traffic loading.

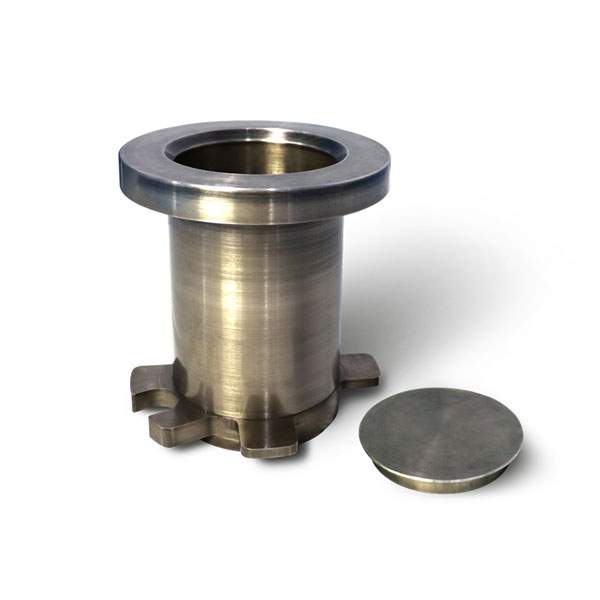

- The Size of the Testing Mold: The standard 150-millimeter cylinder mold is highly suited for most standard operations, though a custom 100-millimeter option can be specified. The physical diameter of the metal cavity directly dictates the number of rotational cycles required to hit the target density.
- The Angle of Gyration: The offset tilt angle of the machine establishes the exact amount of shear force applied to the hot mix. The QualiGyra™ T312 allows continuous adjustment between 0 and 2 degrees, letting you dial in the exact angle needed to mirror a core cut from an active traffic lane.
- The Downward Vertical Load: While the factory default is set to a reliable 600 kPa, the internal servo-controlled regulator lets you adjust the vertical pressure up to 1000 kPa, ensuring you can adjust the consolidation effort for highly stiff, specialized mixtures.
- Mix Temperature and Binder Viscosity: If the mixture cools down excessively, the equipment must apply far more mechanical effort to consolidate the material. How easily the mix packs together is tied directly to the thermal state and fluid behavior of the binder.
Correlating Laboratory Specimens with Field Pavements
The primary goal of the gyratory compactor method is to ensure that laboratory specimens duplicate the performance of the actual pavement laid down by heavy field rollers. The resulting specimens provide highly representative volumetric data compared to legacy impact-based testing methods, achieving a much closer match in aggregate orientation, internal structure, and density distribution.
Because achieving this high level of testing accuracy depends entirely on strict laboratory protocols, you need machinery designed to resist mechanical drift or structural deformation. The Gyratory Compactor QualiGyra™ T312 is built on a highly rigid steel frame that completely prevents structural flexing. Maintaining exact tolerances and constant angles is essential under peak electro-pneumatic loads. By accurately replicating real-world highway compaction forces, this system gives your facility the precise predictive data needed to prevent costly, premature pavement failures.
