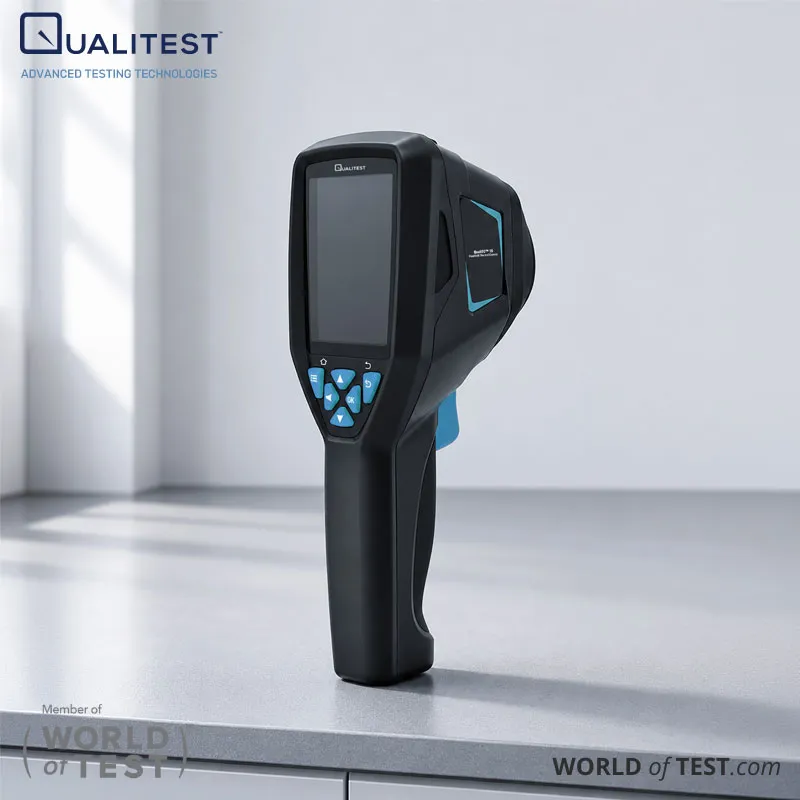

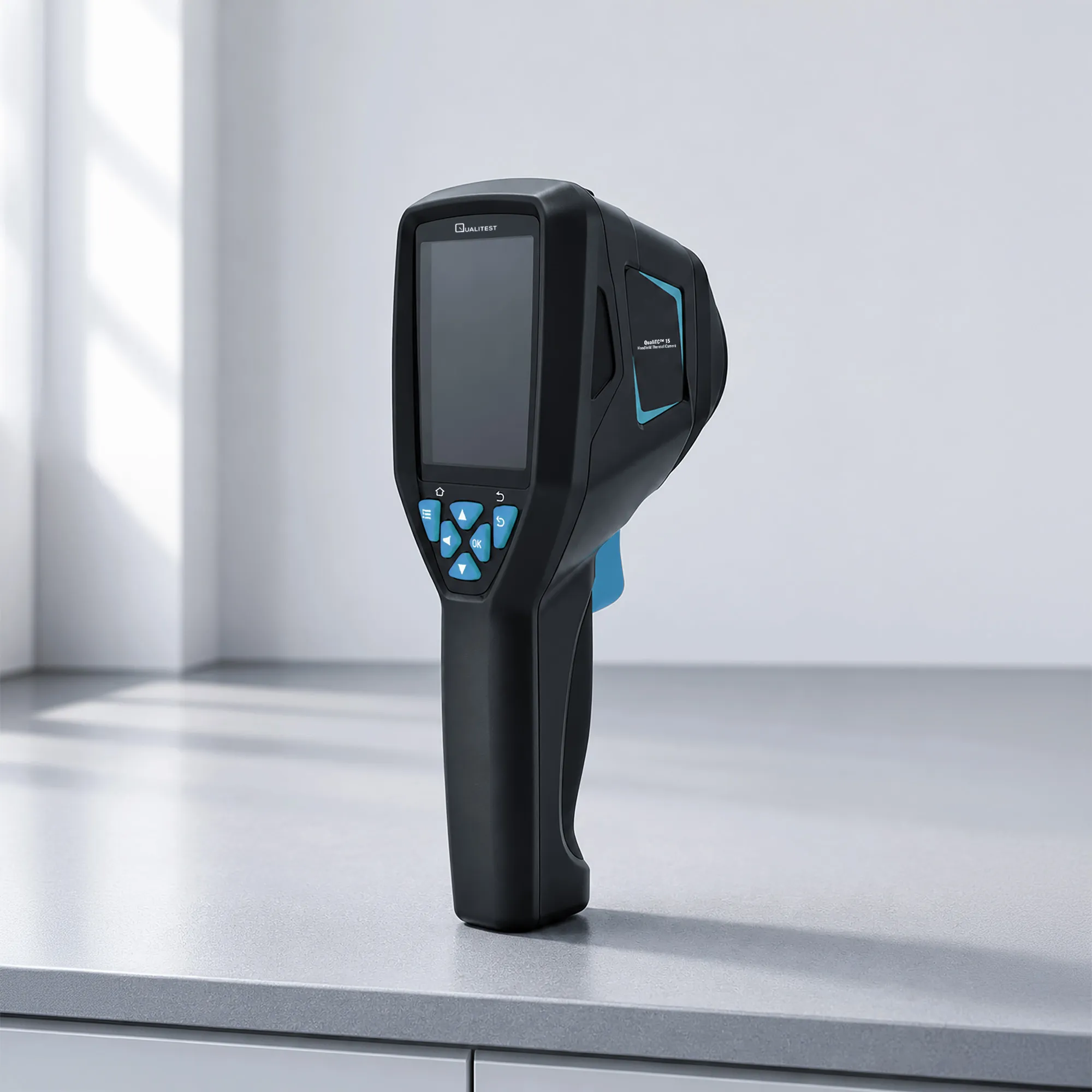

Handheld Thermal Camera - QualiTC™ 15

Handheld Thermal Camera - QualiTC™ 15 gives electricians, HVAC technicians, and building inspectors a dual-camera tool for locating hidden heat and moisture problems. The device pairs a 120×90 thermal sensor with a 720P visible light camera, so operators can view infrared and visible images side by side or blended together. This combination speeds diagnosis on electrical panels, floor heating systems, plumbing, and power distribution equipment. A measurement range of -20°C to 550°C (-4°F to 1022°F) covers electrical and mechanical inspection tasks in one device.

The QualiTC™ 15 offers outline fusion, overlay fusion, and picture-in-picture modes, letting the operator overlay a thermal reading onto the visible scene for faster fault location. A high-temperature alarm flashes and sounds when a reading crosses a set threshold, and high and low temperature tracking follows the hottest or coldest point automatically. The camera stores images and video on 8GB of built-in memory and transfers files to a PC through USB Type-C, where the included software supports real-time streaming and 3D thermal modeling.

The QualiTC™ 15 runs on a rechargeable 2600 mAh lithium battery rated for about four hours of continuous use. At 70 × 80 × 200 mm and 310 grams, the camera fits into a tool bag alongside other test equipment. An operating range of -10°C to 60°C and a storage range of -40°C to 85°C suit most job-site and transport conditions, and two appearance options let buyers match the camera to their branding preferences.

Handheld Thermal Camera - QualiTC™ 15 Applications

Handheld Thermal Camera

The QualiTC™ 15 combines thermal and visible imaging to speed up diagnosis across electrical, mechanical, and residential inspection work. Image fusion makes it easier to pinpoint a problem in context, even for operators who are new to reading thermal images.

  • Electrical Inspections and Power Systems: locates overheating breakers, connectors, and distribution equipment before they cause outages or fires
  • Floor Heating and Radiant System Diagnostics: traces heating element layout and identifies cold spots or failed zones under flooring
  • Plumbing and Water Leak Detection: reveals moisture patterns and temperature differences behind walls and under floors without demolition
  • Mechanical Equipment Monitoring: flags overheating motors, bearings, and pumps during predictive maintenance rounds
  • Building and Home Inspection: documents insulation gaps, air leaks, and moisture intrusion for real estate and energy audits, with the visible image adding context for the client report
  • HVAC System Diagnostics: checks compressors, coils, and ductwork for airflow restrictions and refrigerant issues
Handheld Thermal Camera

Handheld Thermal Camera - QualiTC™ 15 Key Features

The QualiTC™ 15 pairs thermal and visible imaging with alarm and analysis tools built for a full day of field inspection work.

  • Dual Infrared and 720P Visible Cameras: captures a matched thermal and visual image for faster, more confident fault location
  • Outline Fusion, Overlay Fusion, and Picture-in-Picture Modes: places thermal readings in visible context without switching devices

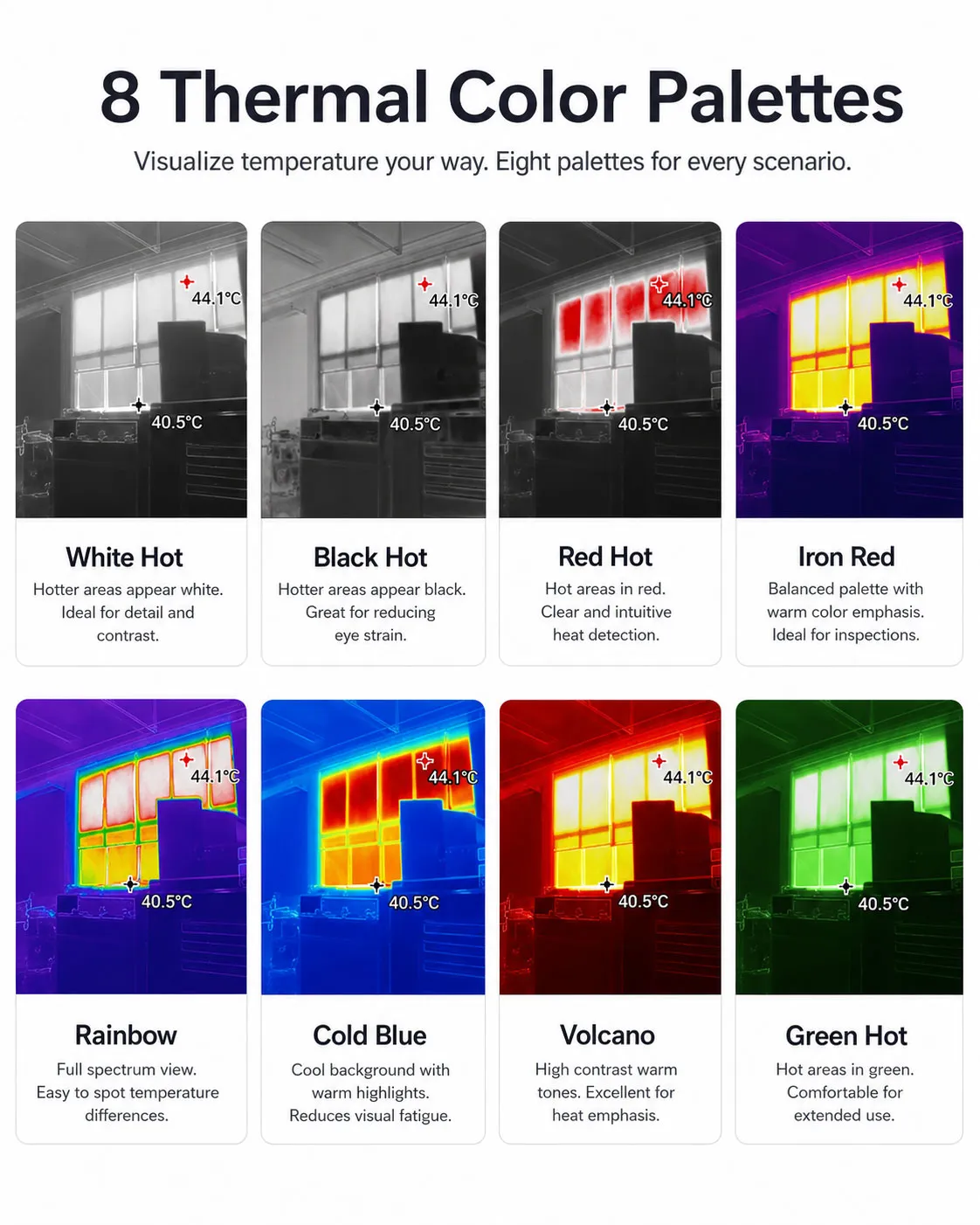

  • Eight-Color Palette Selection: including Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, and Lava, to match the display to the target and lighting
  • High-Temperature Alarm: flashes and sounds when a reading exceeds a set threshold, drawing attention to a developing fault
  • High and Low Temperature Tracking: follows the hottest or coldest point in the frame automatically as conditions change
  • 8GB Built-In Storage: holds more than 20,000 images for photo and video documentation without external media
  • Direct PC Connection: streams video in real time and transfers files through a single USB Type-C cable
  • Included PC Analysis Software with 3D Modeling: builds a spatial thermal model from captured images and supports offline reporting
  • 2.8-Inch Display: gives operators enough screen space for clear on-site review
  • Two Appearance Options: gives buyers a choice of housing styles with the same imaging performance

Theory and Method

Every surface above absolute zero emits infrared radiation in proportion to its temperature, and the QualiTC™ 15 captures this energy in the 8 to 14 micrometer long-wave infrared band using a 120×90 microbolometer array. Each detector element changes electrical resistance as it absorbs infrared radiation, and the onboard processor converts that resistance change into a temperature value for every pixel, then renders the result as a false-color thermal image.

A second, 720P visible light camera captures a standard photograph of the same scene at the moment of the thermal image. The processor corrects for parallax between the two camera positions and scales the visible image to align with the thermal image pixel for pixel. Outline fusion overlays visible-image edges onto the thermal image, overlay fusion blends the two images at an adjustable ratio, and picture-in-picture displays a thermal window inside the visible frame, giving the operator three ways to place a reading in context.

Selecting full-screen, center point, or regional measurement mode changes which pixels the processor samples for its displayed reading, while high and low temperature tracking continuously searches the frame for the extreme values. The 3D thermal analysis feature in the companion software reconstructs a spatial model from a series of captured images, letting an operator review temperature distribution across a surface rather than a single flat frame after the inspection is complete.

Handheld Thermal Camera - QualiTC™ 15 Technical Specifications

ParameterSpecification
IR Resolution120 × 90
Lens2.3 mm, F/1.1
Wavelength8 to 14 μm
Image AlgorithmTisoView image algorithm set
NETD60 mK @ 25°C
Field of View (Thermal)38° (H) × 50° (V)
Visible Light Resolution720P
Visible Light Field of View55° (H) × 83° (V)
Measurement Range-20°C to 550°C (-4°F to 1022°F)
Frame Rate25 Hz
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, center point, and regional temperature measurement
Temperature CompensationDistance compensation within 2 meters
Image ModesOutline fusion, overlay fusion, picture-in-picture, thermal image, visible image
Color PalettesIron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, Lava
Screen Size2.8 inch
Language SupportEnglish, French, German, Spanish, Russian, Portuguese, Dutch, Arabic, Japanese, Korean, Chinese
InterfaceUSB Type-C (charging and data transfer)
BatteryBuilt-in lithium battery, 2600 mAh rechargeable
Working HoursApproximately 4 hours, depending on environment
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
Storage Capacity8GB built-in memory (approximately 6.19GB available), stores more than 20,000 images
Product Dimensions70 × 80 × 200 mm
Net Weight310 g
Image and Video FormatImage: JPG; Video: MP4
