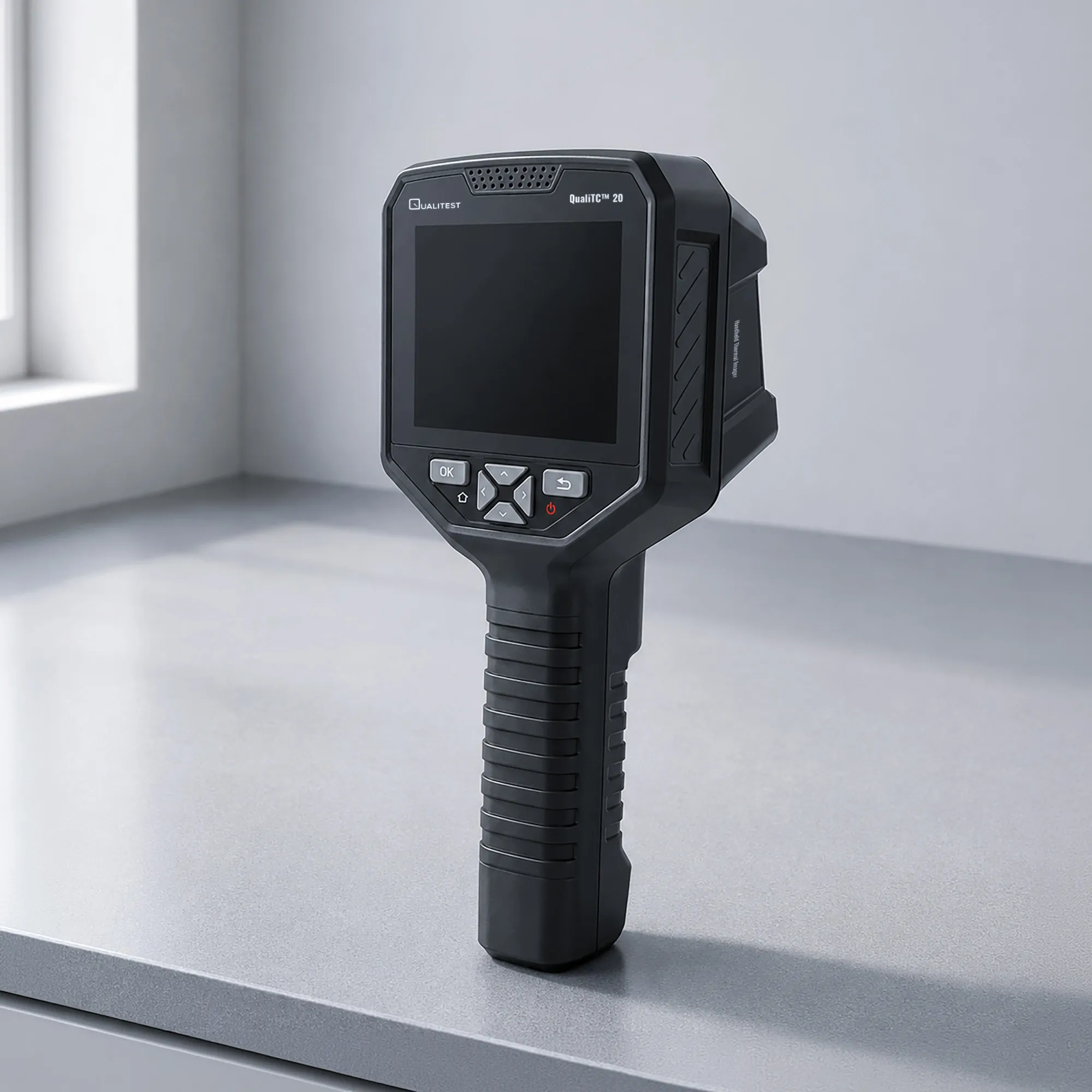

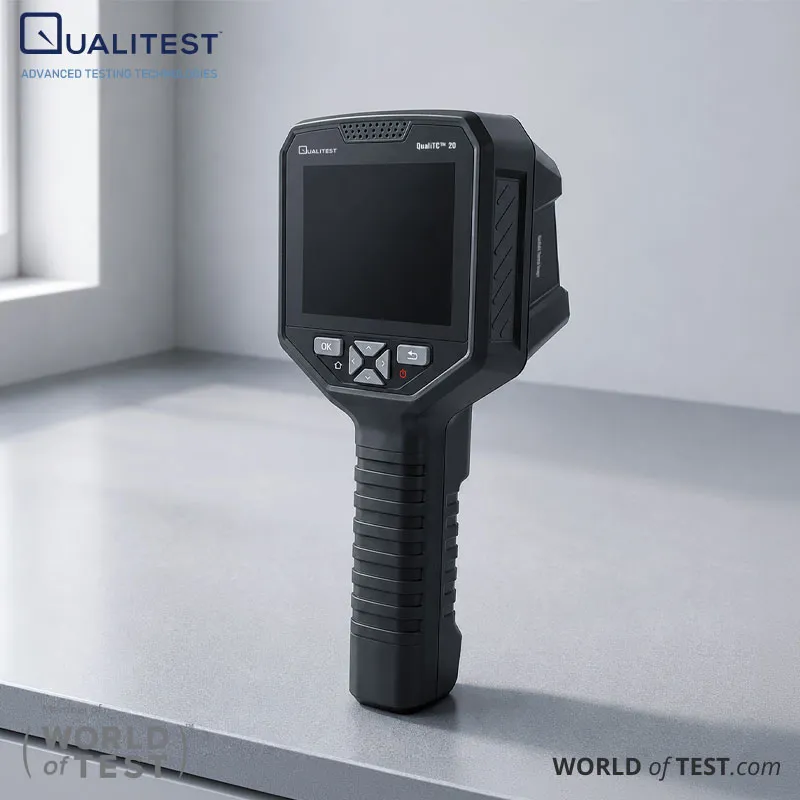

Handheld Thermal Imager - QualiTC™ 20

Handheld Thermal Imager - QualiTC™ 20 is built for electricians, HVAC technicians, and building inspectors who need a bigger, clearer view during an inspection. The device pairs a 256×192 thermal sensor with a 720P visible light camera on a 3.5-inch display, the largest screen in the QualiTC handheld series. This combination speeds diagnosis on electrical panels, floor heating systems, plumbing, and power distribution equipment. A measurement range of -20°C to 550°C (-4°F to 1022°F) covers electrical and mechanical inspection tasks in a single device.

The QualiTC™ 20 offers outline fusion, overlay fusion, and picture-in-picture modes, letting the operator overlay a thermal reading onto the visible scene for faster fault location. A wide 83° by 55° visible light field of view captures more of the surrounding area for easier orientation. Distance compensation extends to 5 meters, keeping readings accurate at typical inspection distances. The camera stores images and video on 8GB of built-in memory, then transfers files to a PC through USB Type-C for review in the included software.

The QualiTC™ 20 runs on a built-in lithium battery rated for about four hours of continuous use. An operating range of -10°C to 60°C and a storage range of -40°C to 85°C suit most job-site and transport conditions. Eight selectable color palettes and eleven-language support round out a display built for teams working across different sites and crews. Qualitest built the QualiTC™ 20 for technicians who need a larger screen without giving up portability

Handheld Thermal Imager - QualiTC™ 20 Applications

The QualiTC™ 20 combines thermal and visible imaging with a large 3.5-inch display to speed up diagnosis across electrical, mechanical, and residential inspection work. Its wide field of view and 5-meter distance compensation suit both close-up panel work and targets that sit farther from the operator.

  • Electrical Inspections and Power Systems: locates overheating breakers, connectors, and distribution equipment before they cause outages or fires
  • Floor Heating and Radiant System Diagnostics: traces heating element layout and identifies cold spots or failed zones under flooring
  • Plumbing and Water Leak Detection: reveals moisture patterns and temperature differences behind walls and under floors without demolition
  • Mechanical Equipment Monitoring: flags overheating motors, bearings, and pumps during predictive maintenance rounds
  • Building and Home Inspection: documents insulation gaps, air leaks, and moisture intrusion for real estate and energy audits, with the visible image adding context
  • Power Line and Substation Spot Checks: the 5-meter distance compensation supports accurate readings on equipment that sits farther from the operator
Handheld Thermal Imager

Handheld Thermal Imager - QualiTC™ 20 Key Features

The QualiTC™ 20 pairs thermal and visible imaging with a large display built for extended field use.

  • 3.5-Inch Display: the largest screen in the QualiTC handheld series, for clear on-site review of thermal and visible images
  • 256×192 Thermal Resolution: resolves fine detail on small or distant targets
  • Dual Infrared and 720P Visible Cameras: captures a matched thermal and visual image for faster, more confident fault location
  • Outline Fusion, Overlay Fusion, and Picture-in-Picture Modes: places thermal readings in visible context without switching devices
  • Wide 83° × 55° Visible Light Field of View: captures more of the surrounding scene for easier orientation
  • 5-Meter Distance Compensation: keeps readings accurate on targets that sit farther from the operator
  • Eight-Color Palette Selection: including Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, and Lava, to match the display to the target and lighting
  • 8GB Built-In Storage: holds more than 20,000 images for photo and video documentation without external media
  • USB Type-C Charging and Data Transfer: charges the camera and moves photos and video to a PC through a single cable
  • Included PC Analysis Software: lets technicians review and report on captured thermal images after the field inspection

Theory and Method

Every surface above absolute zero emits infrared radiation in proportion to its temperature, and the QualiTC™ 20 captures this energy in the 8 to 14 micrometer long-wave infrared band using a 256×192 microbolometer array. Each detector element changes electrical resistance as it absorbs infrared radiation, and the onboard processor converts that resistance change into a temperature value for every pixel, then renders the result as a false-color thermal image on the 3.5-inch display.

A second, 720P visible light camera captures a standard photograph of the same scene at the moment of the thermal image. The processor corrects for parallax between the two camera positions and scales the visible image to align with the thermal image pixel for pixel. Outline fusion overlays visible-image edges onto the thermal image, overlay fusion blends the two images at an adjustable ratio, and picture-in-picture displays a thermal window inside the visible frame, giving the operator three ways to place a reading in context.

Distance compensation corrects the calculated temperature for signal loss as infrared energy travels through air, and the QualiTC™ 20 extends this correction to 5 meters. A NETD rating of 50 mK at 25°C means the sensor distinguishes temperature differences as small as 0.05°C, which lets the camera separate a genuinely hot component from normal background variation.

Handheld Thermal Imager - QualiTC™ 20 Technical Specifications

ParameterSpecification
IR Resolution256 × 192
Lens3.2 mm, F/1.1
Wavelength8 to 14 μm
Image AlgorithmTisoView image algorithm set
NETD50 mK @ 25°C
Field of View (Thermal)56° (H) × 42° (V)
Visible Light Resolution720P
Visible Light Field of View83° (H) × 55° (V)
Measurement Range-20°C to 550°C (-4°F to 1022°F)
Frame Rate25 Hz
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, center point, and regional temperature measurement
Temperature CompensationDistance compensation within 5 meters
Image ModesOutline fusion, overlay fusion, picture-in-picture, thermal image, visible image
Color PalettesIron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, Lava
Screen Size3.5 inch
Language SupportEnglish, French, German, Spanish, Russian, Portuguese, Dutch, Arabic, Japanese, Korean, Chinese
InterfaceUSB Type-C (charging and data transfer)
BatteryBuilt-in lithium battery
Working HoursApproximately 4 hours, depending on environment
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
Storage Capacity8GB built-in memory (approximately 6.19GB available), stores more than 20,000 images
Image and Video FormatImage: JPG; Video: MP4
