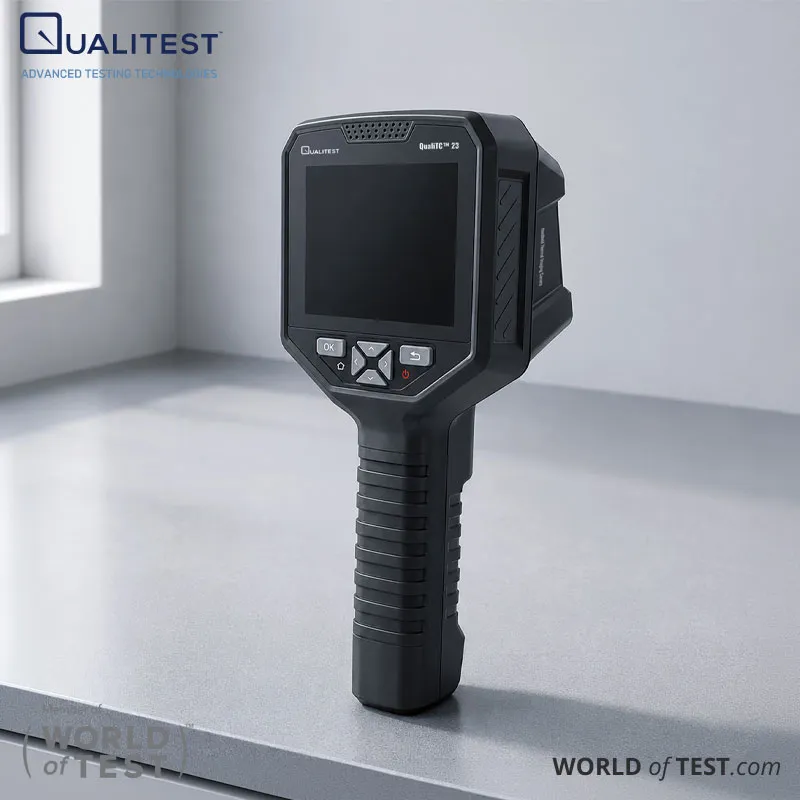

Handheld Thermal Imaging Camera - QualiTC™ 23

Handheld Thermal Imaging Camera - QualiTC™ 23 is a WiFi thermal imaging camera built for electricians, HVAC technicians, and plumbing crews. The device pairs a 220×160 thermal sensor with a 640×480 visible light camera, and wireless transmission lets operators send images straight from the camera to a connected device. This speeds diagnosis on electrical panels, floor heating systems, plumbing, and power distribution equipment. A measurement range of -20°C to 450°C (-4°F to 842°F) covers most electrical and mechanical inspection tasks.

The QualiTC™ 23 offers outline fusion, overlay fusion, and picture-in-picture modes, letting the operator overlay a thermal reading onto the visible scene for faster fault location. Full-screen hotspot, cold spot, center point, and regional measurement modes give operators several ways to read a scene. Distance compensation extends to 5 meters, keeping readings accurate at typical inspection distances. The camera stores images on 8GB of built-in memory and saves them in TIFF format, which keeps more original image data for detailed review.

The QualiTC™ 23 runs on a built-in lithium battery rated for about four hours of continuous use. An operating range of -10°C to 60°C and a storage range of -40°C to 85°C suit most job-site and transport conditions. Eight selectable color palettes and eleven-language support round out a camera built for teams working across different sites and crews. Qualitest built the QualiTC™ 23 for technicians who need fast, wireless image sharing in the field.

Handheld Thermal Imaging Camera - QualiTC™ 23 Applications

The QualiTC™ 23 combines thermal and visible imaging with wireless transmission to speed up reporting across electrical, mechanical, and residential inspection work. TIFF image export keeps more original detail available for closer review after the site visit.

  • Electrical Inspections and Power Systems: locates overheating breakers, connectors, and distribution equipment before they cause outages or fires
  • Floor Heating and Radiant System Diagnostics: traces heating element layout and identifies cold spots or failed zones under flooring
  • Plumbing and Water Leak Detection: reveals moisture patterns and temperature differences behind walls and under floors without demolition
  • Power Inspections: checks connectors, transformers, and distribution equipment for early signs of overheating
  • Building and Home Inspection: documents insulation gaps, air leaks, and moisture intrusion for real estate and energy audits, with WiFi transfer speeding up report turnaround
  • Field Reporting and Remote Review: wireless image transmission lets a technician share a finding with a supervisor or client without returning to the office first

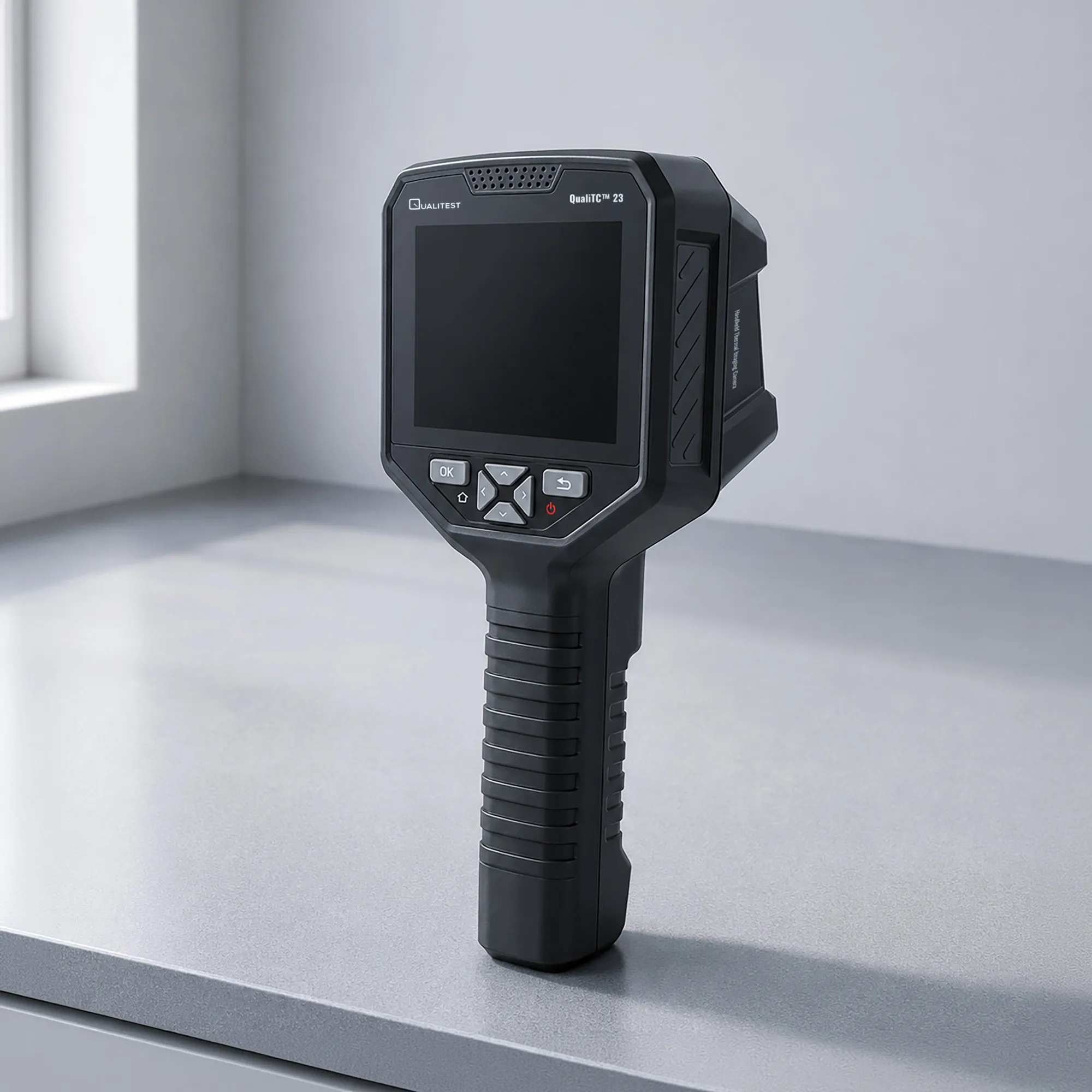

Handheld Thermal Imaging Camera

Handheld Thermal Imaging Camera - QualiTC™ 23 Key Features

The QualiTC™ 23 pairs thermal and visible imaging with wireless connectivity built for fast field reporting.

  • WiFi Image Transmission: sends captured images directly to a connected device without a physical cable
  • TIFF Image Format: preserves more original image data than a compressed format, supporting closer post-capture review
  • 220×160 Thermal Resolution: resolves clear thermal detail for everyday electrical, plumbing, and building inspections
  • Dual Infrared and Visible Cameras: captures a matched thermal and visual image for faster, more confident fault location
  • Outline Fusion, Overlay Fusion, and Picture-in-Picture Modes: places thermal readings in visible context without switching devices
  • 5-Meter Distance Compensation: keeps readings accurate on targets that sit farther from the operator
  • Eight-Color Palette Selection: including Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, and Lava, to match the display to the target and lighting
  • 3.5-Inch Display: gives operators a clear view for on-site review of thermal and visible images
  • 8GB Built-In Storage: holds more than 20,000 images for photo and video documentation without external media
  • USB Type-C Charging and Data Transfer: charges the camera and moves files to a PC through a single cable
  • Included PC Analysis Software: lets technicians review and report on captured thermal images after the field inspection

Theory and Method

Every surface above absolute zero emits infrared radiation in proportion to its temperature, and the QualiTC™ 23 captures this energy in the 8 to 14 micrometer long-wave infrared band using a 220×160 microbolometer array. Each detector element changes electrical resistance as it absorbs infrared radiation, and the onboard processor converts that resistance change into a temperature value for every pixel, then renders the result as a false-color thermal image at a 9Hz refresh rate.

A second, 640×480 visible light camera captures a standard photograph of the same scene at the moment of the thermal image. The processor corrects for parallax between the two camera positions and scales the visible image to align with the thermal image pixel for pixel. Outline fusion overlays visible-image edges onto the thermal image, overlay fusion blends the two images at an adjustable ratio, and picture-in-picture displays a thermal window inside the visible frame.

Saving captured images in TIFF format avoids the compression that JPEG applies, so more of the original pixel data survives for later analysis in the included PC software. Distance compensation corrects the calculated temperature for signal loss as infrared energy travels through air, extending accurate readings out to 5 meters from the target.

Handheld Thermal Imaging Camera - QualiTC™ 23 Technical Specifications

ParameterSpecification
IR Resolution220 × 160
Lens4 mm
Wavelength8 to 14 μm
NETD70 mK @ 25°C
Field of View (Thermal)35° (H) × 26° (V)
Visible Light Resolution640 × 480
Visible Light Field of View79.3° (H) × 59.5° (V)
Measurement Range-20°C to 450°C (-4°F to 842°F)
Frame Rate9 Hz
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, center point, and regional temperature measurement
Temperature CompensationDistance compensation within 5 meters
Image ModesOutline fusion, overlay fusion, picture-in-picture, thermal image, visible image
Color PalettesIron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, Lava
Screen Size3.5 inch
Language SupportEnglish, French, German, Spanish, Russian, Portuguese, Dutch, Arabic, Japanese, Korean, Chinese
InterfaceUSB Type-C (charging and data transfer)
WirelessWiFi image transmission
BatteryBuilt-in lithium battery
Working HoursApproximately 4 hours, depending on environment
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
Storage Capacity8GB built-in memory (approximately 6.19GB available), stores more than 20,000 images
Image FormatTIFF
