Heat Seal Tester QualiSeal-A

Heat Seal Tester QualiSeal-A
Parent Product
Heat Seal Tester
Standards
ASTM F2029
QB/T 2358
YBB 00122003
Download PDF Brochure
Heat Seal Tester QualiSeal-A (PDF)

Experience precise heat sealing control with the QualiSeal-A Heat Seal Tester. Featuring independent temperature regulation, pneumatic drive, and customizable seal bars, this advanced tester ensures reliable results for plastic films, packaging, and more. Explore automatic/manual modes, anti-sticking upgrades, and easy temperature calibration. Enhance quality control effortlessly with the QualiSeal-A.

Heat Seal Tester QualiSeal-A

Heat Seal Tester QualiSeal-A
Heat Seal Tester QualiSeal-AHeat Seal Tester QualiSeal-AHeat Seal Tester QualiSeal-A

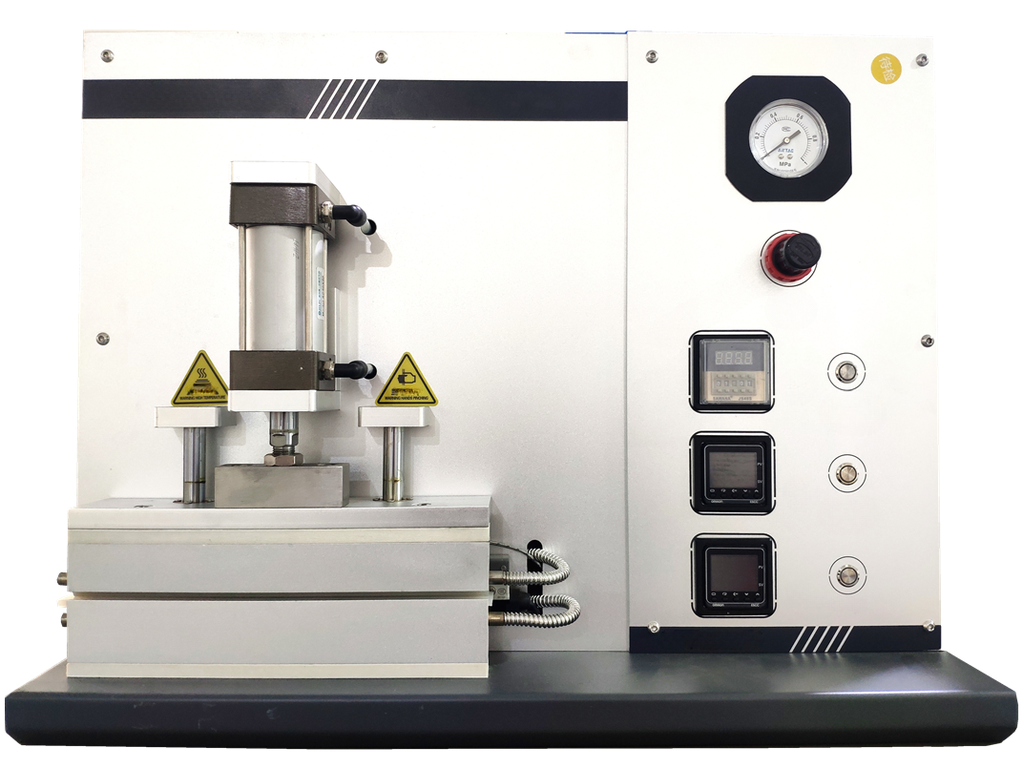

The QualiSeal-A Heat Seal Tester, meticulously designed to precisely evaluate the heat sealing parameters crucial for a range of materials including plastic film, flexible packaging composite film, coated paper, aluminum foil, and more. This cutting-edge device accurately measures heat seal temperature range, seal strength, appropriate sealing speed, and sealing pressure.

Widely embraced by quality control departments across plastic film production facilities, food and pharmaceutical manufacturers, as well as esteemed universities, research institutes, and R&D departments, the QualiSeal-A Heat Seal Tester ensures adherence to stringent quality standards.

Compliant with industry benchmarks such as ASTM F 2029, QB/T 2358, and YBB 00122003, it guarantees reliable and consistent results, empowering businesses and institutions to deliver excellence in their products and research endeavors.



Heat Seal Tester QualiSeal-A Key Features:

  • Independent temperature control for upper and lower heat seal jaws, allowing separate settings.
  • Utilizes compressed air and pneumatic drive for efficient operation.
  • Offers both automatic and manual modes, with a foot switch for manual control.
  • Flexibility to accommodate custom sizes, shapes, and smoothness levels of heat seal bars.
  • Option to upgrade heat seal bars with anti-sticking functionality.
  • Simple temperature calibration process for accuracy and reliability.

Setup and Operation Requirements:
To set up and use the QualiSeal-A Heat Seal Tester effectively, customers will need:

  • An Air Compressor
  • High-pressure air pipe (Φ8mm plastic pipe)
  • Air filter (to remove dust, oil, and water from the air supply)

Heat Seal Tester QualiSeal-A Technical Specifications:

ItemTechnical parameters
Temperature rangeRoom temperature~250℃
Temperature Precision±1℃
Seal time range0.01s~99.99h
Pressure range(0~1)Mpa
Heat seal areaUpper and lower bar: 300mm × 5.5mm, smooth surface;
(the lower bar has a silicone pad as a buffer)
Heat seal methodTwo ways: automatic or manual, external air cylinder
Gas sourceCompressed air
Power1200W
Power supplyAC220V 50Hz (110V also available)
Weight45 kg
Instrument size730mm × 400mm × 540mm
