Heat Seal Tester QualiSeal-F

Heat Seal Tester QualiSeal-F
Parent Product
Heat Seal Tester
Standards
ASTM F2029
QB/T 2358
YBB 00122003
Download PDF Brochure
Heat Seal Tester QualiSeal-F (PDF)

The Heat Seal Tester QualiSeal-F is utilized to assess the temperature, pressure, and duration required for heat sealing various film materials. Its applications span across quality inspection departments, pharmaceutical control institutions, research institutes, packaging companies, thin film manufacturers, food producers, pharmaceutical corporations, the personal care industry, and other relevant sectors.

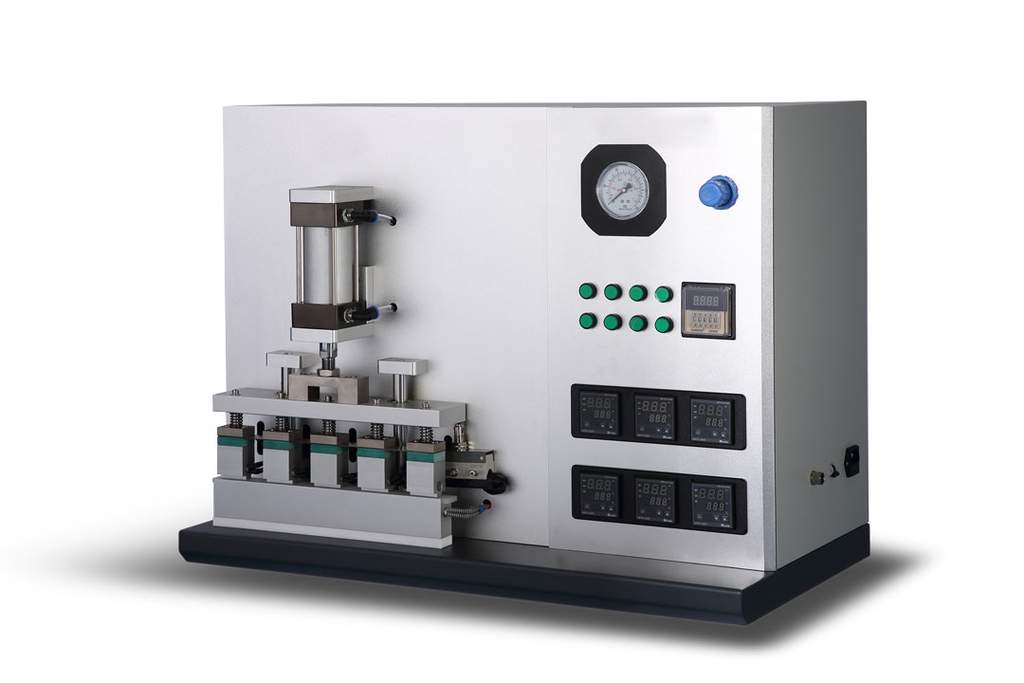

Heat Seal Tester QualiSeal-F

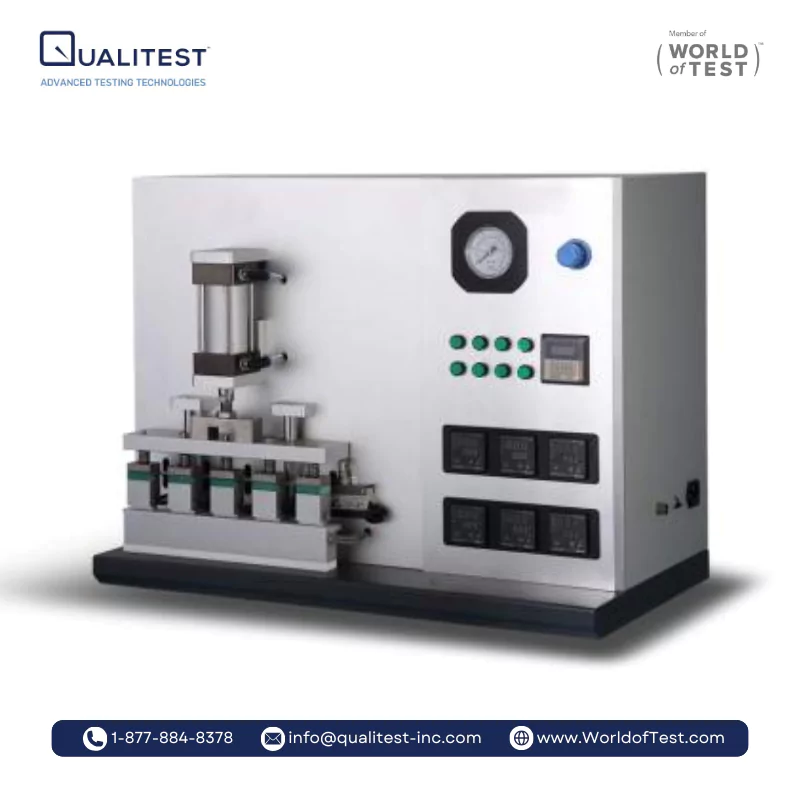

QualiSeal-F Heat Seal Tester

Application:

The Heat Seal Tester QualiSeal-F is utilized to assess the temperature, pressure, and duration required for heat sealing various film materials. Its applications span across quality inspection departments, pharmaceutical control institutions, research institutes, packaging companies, thin film manufacturers, food producers, pharmaceutical corporations, the personal care industry, and other relevant sectors.

Standards:

ASTM F2029, YBB 00122003, QB/T 2358,

Features of Heat Seal Tester QualiSeal-F

  • Heat Sealing with Five Points to Set Five Different Temperatures: Allows for heat sealing with the option to set five different temperatures at five distinct points.
  • Independent Temperature Control for Upper and Lower Heat Seal Bars: The upper and lower heat seal bars feature independent temperature control, allowing separate temperature settings for each.
  • Utilizes Compressed Air and Pneumatic Drive: Operates using compressed air and pneumatic drive, ensuring efficient and reliable performance.
  • Automatic and Manual Modes with Foot Switch: Offers both automatic and manual modes of operation. In manual mode, a foot switch is used for activation.
  • Supports Customized Size, Shape, and Smoothness of Heat Seal Bar: Allows customization of the size, shape, and smoothness of the heat seal bar to accommodate specific requirements.
  • Supports Upgrade of Heat Seal Bar with Anti-Sticking Function: Capability to upgrade the heat seal bar with an anti-sticking function for enhanced performance.
  • Simple Temperature Calibration: Temperature calibration is straightforward and user-friendly, ensuring accurate temperature control.

Technical Specifications of Heat Seal Tester QualiSeal-F

ItemTechnical parameters
Temperature rangeRoom temperature~250℃
Temperature precision±1℃
Seal time range0.01s~99.99h
Pressure range0~1Mpa
Heat seal areaUpper bar: 35×10mm × 5 sections,
lower bar has silicone pad as buffer; (customize
available)
Heat seal methodTwo ways: automatic or manual, external air cylinder
Gas sourceCompressed air
Power1300W
Power supplyAC220V 50Hz (110V also available)
Weight55 kg
Instrument size730mm × 400mm × 540mm

Customer to provide:

Air Compressor specification 2.5HP, 8KG pressure, High-pressure air pipe（Φ8mm plastic pipe), Air filter（filter dust, filter oil, filter water) for setup and installation.
