Heat Seal Tester QualiSeal-F1

Heat Seal Tester QualiSeal-F1
Parent Product
Heat Seal Tester
Standards
ASTM F2029
QB/T 2358
YBB 00122003
Download PDF Brochure
Heat Seal Tester QualiSeal-F1 (PDF)

Our brand new Heat Seal Tester QualiSeal-F1 is specifically engineered to assess the temperature, pressure, and duration required for heat sealing a variety of film materials. It finds application in quality inspection organizations, pharmaceutical control institutions, research institutes, packaging companies, thin film manufacturers, food producers, pharmaceutical corporations, the personal care industry, and beyond.

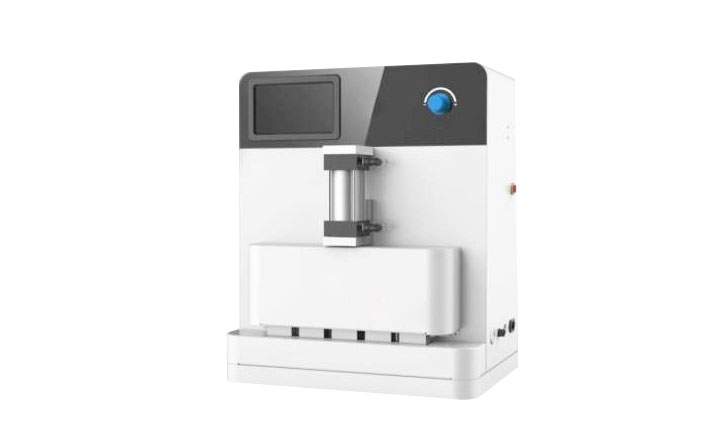

Heat Seal Tester QualiSeal-F1

QualiSeal-F1 Heat Seal Tester

Our brand new Heat Seal Tester QualiSeal-F1 is specifically engineered to assess the temperature, pressure, and duration required for heat sealing a variety of film materials. It finds application in quality inspection organizations, pharmaceutical control institutions, research institutes, packaging companies, thin film manufacturers, food producers, pharmaceutical corporations, the personal care industry, and beyond.

Standards:

ASTM F 2029, YBB00122003, QB/T 2358,

Features of Heat Seal Tester QualiSeal-F1

  • Five-Point Heat Seal: Capable of setting six different temperatures simultaneously (one for the lower bar and five for the upper bars).
  • Independent Temperature Control for Upper and Lower Heat Seal Bars: Each upper and lower heat seal bar has independent temperature control and setting capabilities.
  • Digital P.I.D. Temperature Control: Utilizes digital P.I.D. temperature control for enhanced accuracy. The temperature sensor is easily calibrated for precise temperature control.
  • Compressed Air and Pneumatic Drive: Operates using compressed air and pneumatic drive. Pressure testing allows convenient adjustment of pressure according to customer samples.
  • Automatic and Manual Modes: Offers both automatic and manual operation modes. The manual mode utilizes a foot switch for activation.
  • Upgradeable Heat Seal Bar with Anti-Sticking Function: Supports the upgrade of heat seal bars with anti-sticking functionality. Additionally, the heat seal bars can be customized in terms of size, shape, and smoothness.
  • Touch Screen Display: The touch screen interface displays the current temperature, heat sealing temperature, heat sealing pressure, and heat sealing time for both the upper and lower bars.

Technical Specifications of Heat Seal Tester QualiSeal-F1

ItemTechnical parameters
Temperature rangeRoom temperature~250℃
Temperature precision± 0.1℃
Seal time range0.1s~99h 59min 59.9s
Pressure range0.1~0.8Mpa
Heat seal areaUpper bar 35×10 mm × 5 sections;
lower bar has silicone pad as buffer; ( Customize available )
Heat seal methodTwo ways: automatic or manual, external air cylinder
Power supplyAC220V 50Hz (110V also available)
Instrument size500(L)×330(B)×570(H)mm
