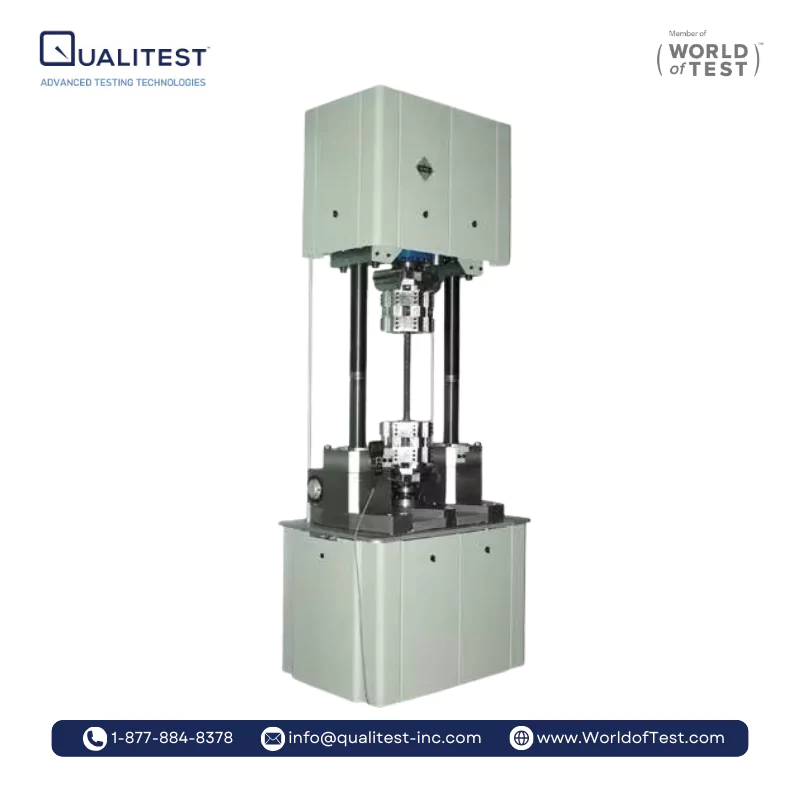

Resonant Fatigue Testing Machine VIBRRO-FORTE is the latest development in the world of Fatigue Testing. The design of the Vibro-Forte Resonant Fatigue Testing Machine - High Capacity Fatigue Tester is based on a strict further development of the resonant system MAGNODYN. An ideal solution has be found to test long shape components like fasteners, reinforcement steel bars, etc. and round and flat specimens. The changeable frequency range is between 50 and 160 Hz depending on the stiffness of the specimen. Noteworthy is the low weight of a testing machine at this high capacity.

Applications

Resonant Fatigue Tester Machines are very often used for fatigue tests (S/N - curves) or in the fracture mechanics for pre cracking and crack propagation tests. This principle has many advantages compared to servo-hydraulic machines.

All types of tests with a Mid number of load cycles are beneficial applications for resonant testing machines because of the Mid testing frequency and as a result very short testing time as well as very low power consumption.

The additional advantage in comparison to servo-hydraulic systems with its actuators, valves and pumps is that maintenance is not required due to the wear-resisting construction.


Tests on flat specimen with clamping device HydroGrip 500 kN



Tests on reinforced bar with clamping device PowerGrip



Special device for connecting rods



Chain testing



Special device for compression tests at elevated temperatures

Features/Advantages
  • bipolar concept of dynamic drive thus low total weight as well as a very high dynamic performance
  • simple and solid construction at a very attractive price • low total height (3060 mm with a vertical test area of 1100 mm) as well as a very ergonomic working height
  • big and adjustable test area, ideal system for different specimens and components (rebars, conrods, chains, fasteners etc.)
  • two spindle static drive, no restrictions regarding maximum static load of 500 kN resp. 550 kN (calibration up to nominal load possible)
  • gripping devices for rebars, conrods, fasteners, chains etc. available thus reliable grips for all high load applications
  • latest digital electronics TOPP (Tests with Optimized Power and Precision) assuring highest accuracy and reliability
  • Software running under LabVIEW for easy and simple test execution and evaluation of dynamic materials testing
Technical Specification
Max. peak value of load 500 / 550 / 700 kN
Max. static load 500 / 550 kN
Max. dynamic load 500 / 550 kN
Max. stroke 4 mm
Approx. weight 4100 kg
Power requirements 3x400 V / 16 A
