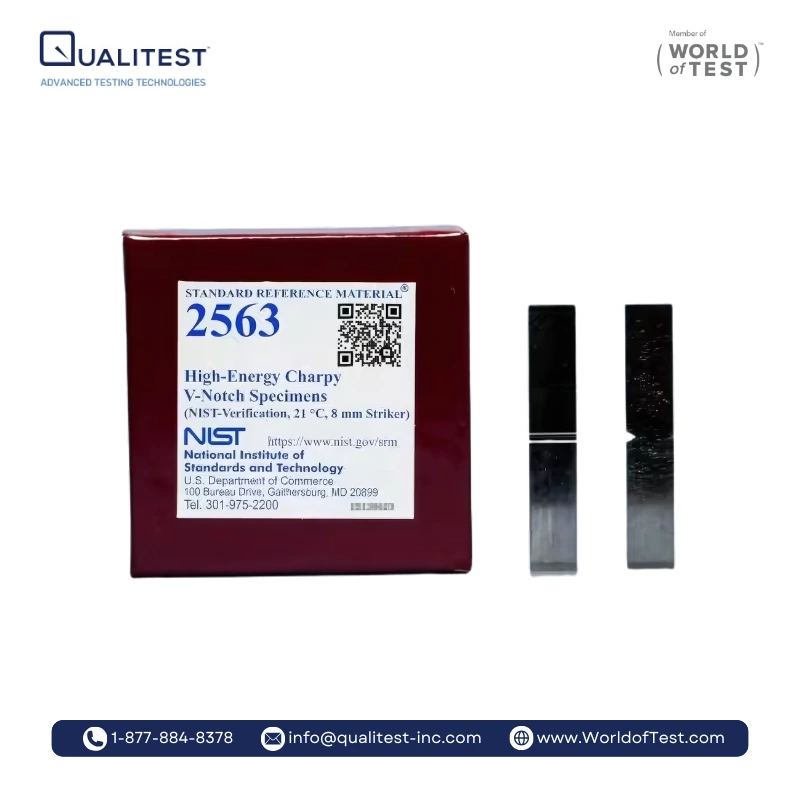

Indirect verification of pendulum impact testing machines under ASTM E23 and ISO 148-2 relies on certified High-Energy Charpy V-Notch Specimens that exhibit predictable dynamic fracture behavior. As part of Qualitest's Certified Charpy V-Notch Impact Test Specimens line, high-energy reference sets, such as SKU 2563 (SRM 2563), establish SI-traceable benchmarks in the 100 J to 200 J+ absorbed energy range.
Theoretical Basis of High-Energy Reference Specimens
Dynamic impact testing evaluates the total mechanical work required to fracture a standardized 10 × 10 × 55 mm metallic test block under sudden high-velocity loading. For precision-machined AISI 4340 alloy steel reference specimens, energy absorption scales according to specimen cross-section and remaining cross-sectional ligament geometry:
Absorbed Energy (E) ∝ (Ligament Length)2 × (Specimen Thickness)
+-------------------------------------+
| Dynamic Impact Mass (8 mm Striker) |
+-------------------------------------+
|
v
+-----------------------------------------------------+
| High-Energy Charpy V-Notch Specimen (10x10x55 mm) |
+-----------------------------------------------------+
/ \
v v
+-----------------------------+ +-----------------------------+
| 45° V-Notch Contour | | 8 mm Unnotched Ligament |
| Localized Stress Triaxiality| | (Plane Strain Core Region) |
+-----------------------------+ +-----------------------------+
\ /
v v
+-----------------------------------------------------+
| Total Absorbed Energy & Plastic Deformation Response|
+-----------------------------------------------------+
During dynamic impact by an 8 mm pendulum striker, the V-notch root (45° angle, 0.25 mm root radius) induces high stress triaxiality. While plane-stress states develop along the outer surfaces of the specimen, the interior core remains under rigid plane-strain conditions. This interior stress state governs the balance between elastic deformation, plastic yielding, and shear fracture propagation across the heat-treated alloy steel core.
Manufacturing & Dimensional Controls for Reference Specimens
Because minor structural or dimensional variations alter recorded energy values, manufacturing High-Energy Charpy V-Notch Specimens requires tight tolerance management across every lot.
| Parameter | Reference Specification | Impact on Energy Measurement |
|---|
| Material Matrix | Precision heat-treated AISI 4340 alloy steel | Ensures uniform microstructural response and stable high-energy absorption in the 100 J to 200 J+ range. |
| Notch Depth & Profile | 2.00 ± 0.025 mm depth, 45° ± 1° angle, 0.25 ± 0.025 mm root radius | Governs stress concentration; dimensional variations directly shift total absorbed energy. |
| Machining Method | Precision broaching or surface grinding | Eliminates surface micro-tearing and residual stress variations, maintaining narrow energy scatter bands. |
| Specimen Dimensions | 10 ± 0.075 mm × 10 ± 0.075 mm × 55 +0/-2.5 mm | Maintains constant cross-sectional ligament area behind the notch root. |
Indirect Verification Methodology & Testing Practice
Indirect calibration verifies whether an impact testing machine's total energy losses (including friction, windage, frame compliance, anvil alignment, and striker geometry) fall within acceptable international thresholds.
Typical Instrumented Dynamic Force-Time Curve
Force (kN)
|
Fm | * (Peak Dynamic Force)
| / \
| / \ Crack Propagation Phase
| Crack Initiation / \
| (~40% Fm) * / \
| / / \
| Inertial / / \
| Peak / / \________
+----------*---*---------------------------> Time (ms)
| Testing Consideration | Protocol Standard | Operational Requirement |
|---|
| Temperature Control | ASTM E23 / ISO 148-2 | Reference sets (SKU 2563 / SRM 2563) must be thermalized and tested consecutively at 21 ± 3 °C. |
| Sample Set Size (nSS) | Lot Certification | Tested as a dedicated set containing 5 to 7 specimens, with the exact statistical quantity determined during lot certification. |
| Striker Configuration | ASTM / ISO Specifications | Evaluated using an 8 mm radius striking edge (or 2 mm striker depending on machine specification). |
| Acceptance Criteria | Indirect Machine Calibration | The average absorbed energy of the test set must fall within ±1.4 J or ±5% of the certified reference value, whichever is greater. |
| Instrumented Data | SI Traceability | Strain-gaged strikers record real-time force-time curves (Wt), capturing the initial inertial peak, crack initiation at approximately 40% of peak load (Fm), and total energy partition. |
| Post-Test Evaluation | Quality Assurance | Includes post-test verification services where users submit completed questionnaires and digital fracture surface photos for technical evaluation. |
