Core Mechanisms of High Speed Dispersers

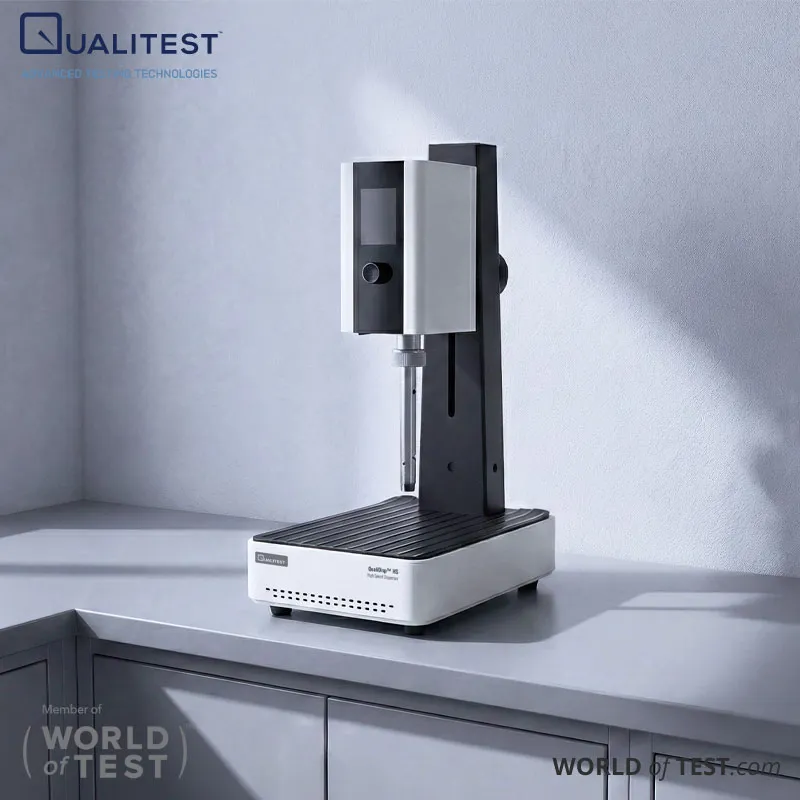

A high speed disperser achieves particle size reduction, powder drawdown, and droplet breakdown by driving fluid through a high-shear rotor-stator gap. Equipment like the QT-SHSD Super High-Speed Disperser utilizes a high-torque motor reaching speeds up to 20,000 rpm, while the benchtop QualiDisp™ HS Series (built on the XHF-DY platform) and handheld QualiDisp™ PHS Series utilize specialized rotor-stator tool heads to homogenize, emulsify, and deagglomerate soft solids and liquids.
The primary working mechanism concentrates kinetic energy dissipation inside a narrow mechanical gap between the fast-spinning rotor blade and stationary stator ring. Fluid entering this active shear zone undergoes four distinct physical breakup stages:
- Suction: The motor-driven rotor draws liquid or slurry directly into the central high-shear zone.
- Elongation: High velocity gradients stretch liquid droplets and agglomerate clusters into thin sheets and tendrils.
- Shear Breakup: Hydrodynamic drag and intense fluid friction snap these tendrils cleanly into uniform micro-droplets.
- Dispersal: The intense radial velocity ejects wetted particles back into the main batch, increasing interfacial surface area.
For solid-liquid powder drawdown, the rotating blade creates a deep surface vortex that draws light, floating powders straight down into the rotor-stator teeth. This prevents floating material on the surface and completes particle wetting in a short processing cycle.
Operating Variables and Performance Factors
Optimizing sample preparation and production quality on a high speed disperser depends on controlling key mechanical variables. Units like the QT-SHSD feature auto lift distance control and large touch screen speed management, while the QualiDisp™ HS Series incorporates stepless speed adjustment and built-in execution timers to standardize daily laboratory workflows and eliminate operator variation.
| Parameter | Machine Feature & Dynamic Action | Impact on Disperser Performance |
|---|
| Rotational Velocity | Stepless digital control up to 20,000 rpm | Increasing peripheral tip speed generates higher shear rates, significantly reducing mean droplet sizes and accelerating particle deagglomeration. |
| Tool Head Geometry | Interchangeable rotor-stator generators | Selecting specific head sizes on portable units like the QualiDisp™ PHS matches shear intensity directly to vessel volumes and fluid viscosities. |
| Execution Timing | Built-in digital timers | Digital timer controls standardize daily testing cycles, ensuring batch-to-batch repeatability across operators. |
| Solids Loading | High-torque motor drive | High-torque motor drives maintain high shear rates even when processing heavy solid loadings up to 40% solids. |
| Immersion Depth | Auto lift distance control | Adjusting blade immersion height prevents vortex collapse and eliminates air entrainment while preventing sluggish unmixed flow zones. |
Lab-to-Production Scale-Up & Application Limits
Modeling flow dynamics across different high speed disperser configurations ensures consistent results when transitioning formulations from R&D testing to commercial production:
- Computational Fluid Dynamics: CFD simulations and mass transfer correlations help predict local energy dissipation rates and droplet size distributions across varying rotor tooth profiles.
- Scale-Up Rules: Scaling from a handheld QualiDisp™ PHS or benchtop QualiDisp™ HS to production equipment like the Multifunction High Speed Disperser requires maintaining equivalent tip speed velocities and volumetric energy input rather than simple geometric scaling.
- High-Tech Material Applications: High speed dispersers process battery cathode slurries, pigment dispersions, carbon nanotube suspensions, cosmetic emulsions, and biological tissue samples without damaging primary crystal structures.
- Shear Sensitivity Limits: Excessive shear speeds can shear long-chain polymer backbones or break down fragile emulsions. Utilizing stepless speed controls allows matching shear energy directly to material sensitivity thresholds to deliver consistent, high-yield results.
