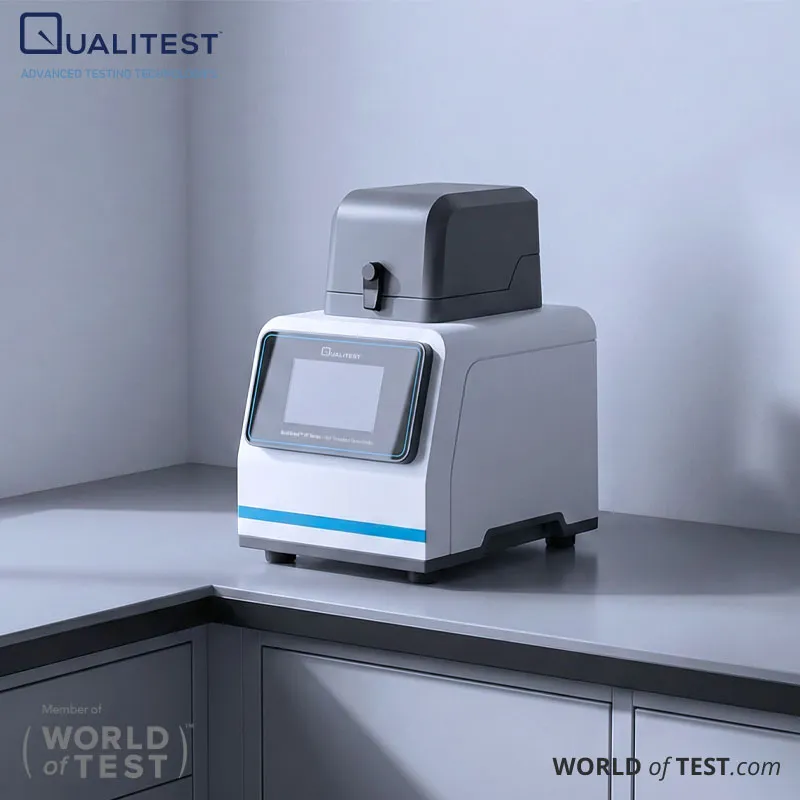

High Throughput Tissue Grinder – QualiGrind™ HT Series

A Tissue Grinder in the QualiGrind™ HT Series is a high-throughput bead-beating system built for fast, repeatable sample disruption and homogenization in standard tubes and plate formats. It uses high-frequency vertical oscillation to generate shear and impact forces between the sample and grinding beads, supporting efficient breakdown for downstream workflows like DNA/RNA and protein extraction.

Multiple configurations scale from small batch processing to plate-based workflows, with optional adapters, cryogenic accessories, and different bead materials to match sample hardness and heat sensitivity. Built-in programs, touchscreen control (model-dependent), and safety interlocks support consistent day-to-day lab operation.

High Throughput Tissue Grinder – QualiGrind™ HT Series Applications

  • Tissue and organ homogenization
    • Processes animal tissues such as brain, heart, liver, muscle, bone, and hair for rapid disruption prior to extraction, quantification, or QC workflows.
  • Microbial lysis
    • Supports microorganism processing such as yeast and E. coli, helping break tough cell walls when paired with suitable bead type and run parameters.
  • Plant sample grinding
    • Handles roots, stems, leaves, flowers, fruits, and seeds for consistent homogenates that improve extraction repeatability across batches.
  • Environmental sample preparation
    • Prepares soil, sediment, sludge, and related matrices for analytical workflows where uniform particle size and minimized cross-contamination matter.
  • Food, pharma, polymer, and industrial materials
    • Works for tablets and food materials, plus plastics and polymers such as PE and PS, where controlled grinding supports testing and formulation development.
High Throughput Tissue Grinder

Standards

  • IEC 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use.
  • IEC 61326-1: EMC requirements (immunity and emissions) for measurement, control, and laboratory electrical equipment.

High Throughput Tissue Grinder – QualiGrind™ HT Series Key Features

  • High-throughput processing with rapid cycle capability for multi-sample grinding.
  • Low contamination workflow using enclosed processing and independent sample movement to reduce cross-sample carryover.
  • Flexible accessories including multiple adapters, tube/plate configurations, and optional cryogenic support for temperature-sensitive samples.
  • Program-based control for repeatable parameter setup, with data storage for run records (model-dependent).
  • Safety-focused operation using lid-open protection and emergency braking features.
  • Noise-conscious design intended to reduce lab disruption during operation.

Theory and Method

QualiGrind™ HT Series uses high-frequency vertical oscillation. Samples sit in adapters using common centrifuge tubes or plate formats. Grinding beads collide with the sample to generate shear and impact forces that disrupt tissue and cells, producing a uniform homogenate that supports reliable extraction workflows.

High Throughput Tissue Grinder – QualiGrind™ HT Series Technical Specification

ParameterQualiGrind™ HT 12QualiGrind™ HT 24QualiGrind™ HT 48AQualiGrind™ HT 60QualiGrind™ HT 48B
Voltage220V / 50Hz (110V is also available)
Rated power100 W80 W80 W180 W80 W
Time setting1–9999 s
Speed / Frequency300–2100 rpm (10–70 Hz)
Data storageStores 50 data sets
Clamp stroke / Fixture travel40 mm (vertical)34 mm (vertical)
Sample capacity (standard)2 mL adapter (12-hole)2 mL adapter (24-hole); 5 mL adapter (12-hole)2 mL adapter (48-pin); 5 mL adapter (12-pin)2 mL adapter (60 pins); 5 mL adapter (12 pins)1–2 mL 48-well (standard config)
Sample capacity (optional)5 mL adapter (6-hole); 5/10/15/25 mL grinding jars; freezing adapter5/10/15/25/50/100 mL grinding jars; freezing adapter5 mL adapter (24-pin); 2 mL adapter (24-pin); 5/10/15/25/50/100 mL grinding jars; freezing adapter5 mL adapter (24 pins); 2 mL adapter (48 pins); 5/10/15/25/50/100 mL grinding jars; optional cryoadaptor and plate adapters0.2–0.5 mL 2×96 wells; 5 mL 2×24 wells; 10/15/25/50/100 mL grinding jars; freezing adapter
Grinding methodWet grinding, dry grinding, pre-freeze grinding
Grinding beadsStd: φ3 mm stainless steel balls (1000 pcs); optional: φ6 mm stainless steel balls (1000 pcs) or zirconia oxide balls
Display4.3 in TFT touchscreen7 in TFT touchscreen
ProtectionLid-open protection; emergency stop function
Dimensions (L×W×H)225×275×390 mm360×320×500 mm360×320×500 mm360×400×520 mm360×320×550 mm
Weight≤12 kg≤29 kg≤29 kg≤40 kg≤35 kg
