Plasma Generation and Excitation Theory
In Inductively Coupled Plasma Optical Emission Spectroscopy (or ICP-OES), elemental quantification relies on atomizing and exciting sample constituents inside a high-energy argon plasma torch. A 27.12 MHz solid-state Radio Frequency (RF) generator delivers 800W to 1600W of continuous power (with real-time 1W tuning), energizing argon gas into a thermal plasma core that reaches approximately 10,000 Kelvin.
When liquid aerosol enters this high-temperature zone, it undergoes four immediate thermodynamic stages:
- Desolvation: Liquid solvents evaporate instantly from micro-fine droplets produced by the nebulizer.
- Vaporization & Atomization: Solid micro-particles break down into free gaseous atoms.
- Ionization & Thermal Excitation: Extreme thermal energy promotes outer-shell electrons of atoms and ions into excited orbital energy states.
- Photon Emission: Relaxing species drop back to ground state, releasing photons at quantized, element-specific wavelengths.
Photon wavelength determines the specific element identity, while total photon count correlates directly with concentration levels across target elements.
Optical Dispersion and Detection Method
Light emitted from the plasma torch enters the optical dispersion system to separate complex light mixtures into discrete spectral lines across a 165–900 nm wavelength range:
- Czerny-Turner Optical Layout: Utilizes double holographic gratings for high-resolution single-channel scanning (featured in the PLASMA 1500).

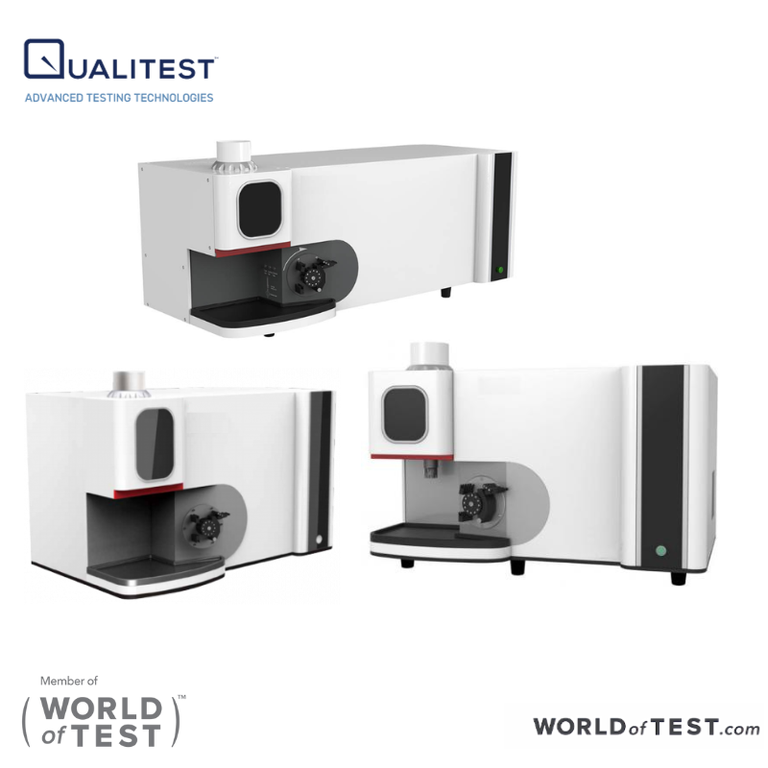

- Echelle Polychromator Layout: Utilizes an echelle grating paired with a crossed prism dispersion structure for simultaneous, full-spectrum light separation (featured in the PLASMA 2000 and PLASMA 3000).
The dispersed light lands on solid-state detectors, such as large-area CCD arrays stabilized by triple-stage Peltier cooling down to -30°C, or dual-channel photomultiplier tubes (PMT). Solid-state CCD pixels convert photon intensity into digital counts across all target wavelengths in a single exposure.
Plasma Viewing Configuration and Interference Control
Optical light collection from the argon torch utilizes three primary viewing geometries:
- Axial Viewing (Straight-Down): Captures photon emission along the torch axis, expanding the optical path length for high sensitivity at parts-per-billion trace levels.
- Radial Viewing (Side-Looking): Captures light perpendicular to the torch, reducing matrix background emissions when measuring high-salinity brines, heavy sludges, or volatile organic solvents.
- Vertical Torch Dual View: Features a cooled cone interface to eliminate cool plasma tail interference, combining axial trace sensitivity and radial matrix tolerance in a single analytical run (featured in the PLASMA 3000).
Mass flow controllers (MFC) manage carrier, auxiliary, and cooling argon gas flows with pin-point stability, while background-subtraction algorithms clear away overlapping spectral lines from complex sample matrices.
