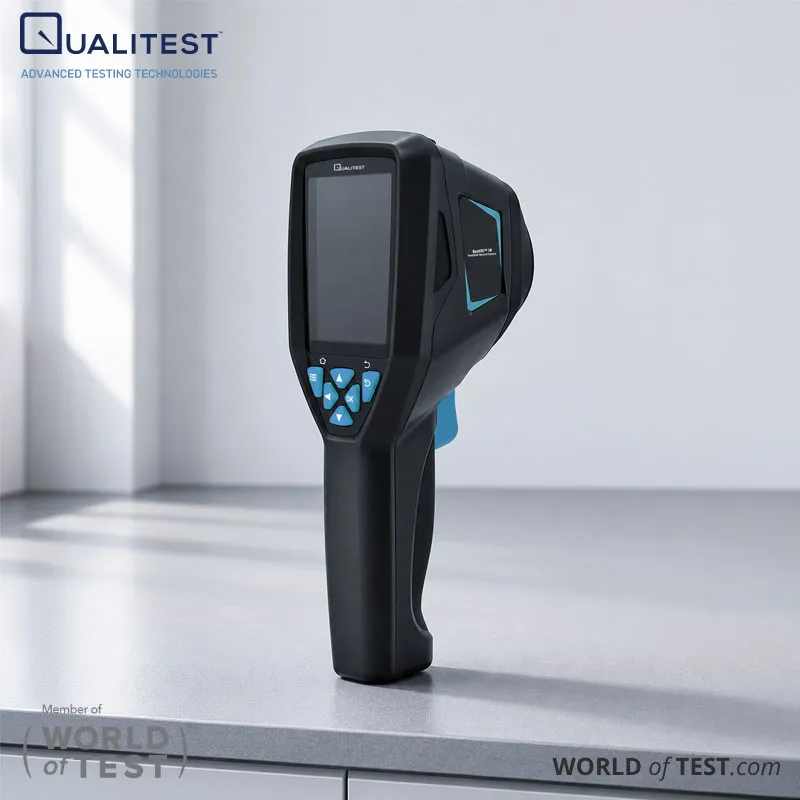

Infrared Thermal Imaging Camera - QualiTC™ 10

The Infrared Thermal Imaging Camera - QualiTC™ 10 gives electricians, HVAC technicians, and maintenance engineers a handheld tool for non-contact temperature measurement. This single infrared light device converts thermal radiation into a visible image, revealing hotspots, cold spots, and abnormal temperature patterns before they cause failures. A 120×90 IR resolution paired with the built-in TisoView image enhancement algorithm sharpens detail. The -20°C to 550°C (-4°F to 1022°F) measurement range covers tasks from HVAC ductwork to hot industrial surfaces.

Beyond thermal imaging, the QualiTC™ 10 stores photos and video on 8GB of built-in memory, enough for more than 20,000 images. Files transfer to a PC through USB Type-C for review in the included analysis software. A laser indicator marks the exact measurement point, while full-screen hotspot, cold spot, center point, and regional modes give operators multiple ways to read a scene. Eight color palettes, including Iron Red, Rainbow, and Lava, match the display to the task, and support for eleven languages suits multinational teams.

The QualiTC™ 10 ships in two appearance options and runs on a built-in lithium battery rated for about four hours of continuous use. Distance compensation within two meters keeps readings accurate as the operator moves toward or away from the target. An operating range of -10°C to 60°C and a storage range of -40°C to 85°C suit most field and transport conditions. Qualitest built the QualiTC™ 10 for technicians who need dependable, field-ready infrared imaging.

Infrared Thermal Imaging Camera - QualiTC™ 10 Applications

Infrared Thermal Imaging Camera

The QualiTC™ 10 supports non-contact temperature measurement across a wide range of maintenance, inspection, and quality-control tasks. Its -20°C to 550°C range and full-screen hotspot detection suit both routine facility checks and higher-temperature industrial work.

  • Electrical Inspections and Maintenance: locates overheating breakers, loose connections, and overloaded circuits before they cause outages or fires
  • Mechanical and Industrial Equipment Monitoring: flags overheating motors, bearings, pumps, and conveyor components during predictive maintenance rounds
  • HVAC System Diagnostics: checks compressors, coils, and ductwork for airflow restrictions, refrigerant issues, and insulation gaps
  • Building and Energy Audits: identifies heat loss, air leaks, and insulation deficiencies around windows, doors, and building envelopes
  • Automotive and Vehicle Diagnostics: reveals uneven engine temperatures, exhaust leaks, and brake or bearing overheating during inspection
  • High-Temperature Industrial Surfaces: measures process equipment, furnaces, and piping up to 550°C where contact thermometers cannot safely reach
  • Research and Quality Control: documents the thermal behavior of components and assemblies during product development and incoming inspection

Infrared Thermal Imaging Camera - QualiTC™ 10 Key Features

The QualiTC™ 10 pairs core thermal imaging performance with practical tools that make field inspection faster and more reliable.

  • 120×90 IR Resolution with TisoView Enhancement: sharpens thermal detail beyond the native sensor resolution for clearer fault identification
  • 8GB Built-In Storage: holds more than 20,000 images, with approximately 6.19GB of usable capacity, for photo and video documentation without external media
  • USB Type-C Charging and Data Transfer: charges the camera and moves photos and video to a PC through a single cable
  • Included PC Analysis Software: lets technicians review, annotate, and report on captured thermal images after the field inspection
  • Laser Indicator Point Measurement: pinpoints the exact spot being measured, reducing guesswork when aiming at small targets
  • Multiple Temperature Measurement Modes: switches between full-screen hotspot, cold spot, center point, and regional measurement to match the inspection task

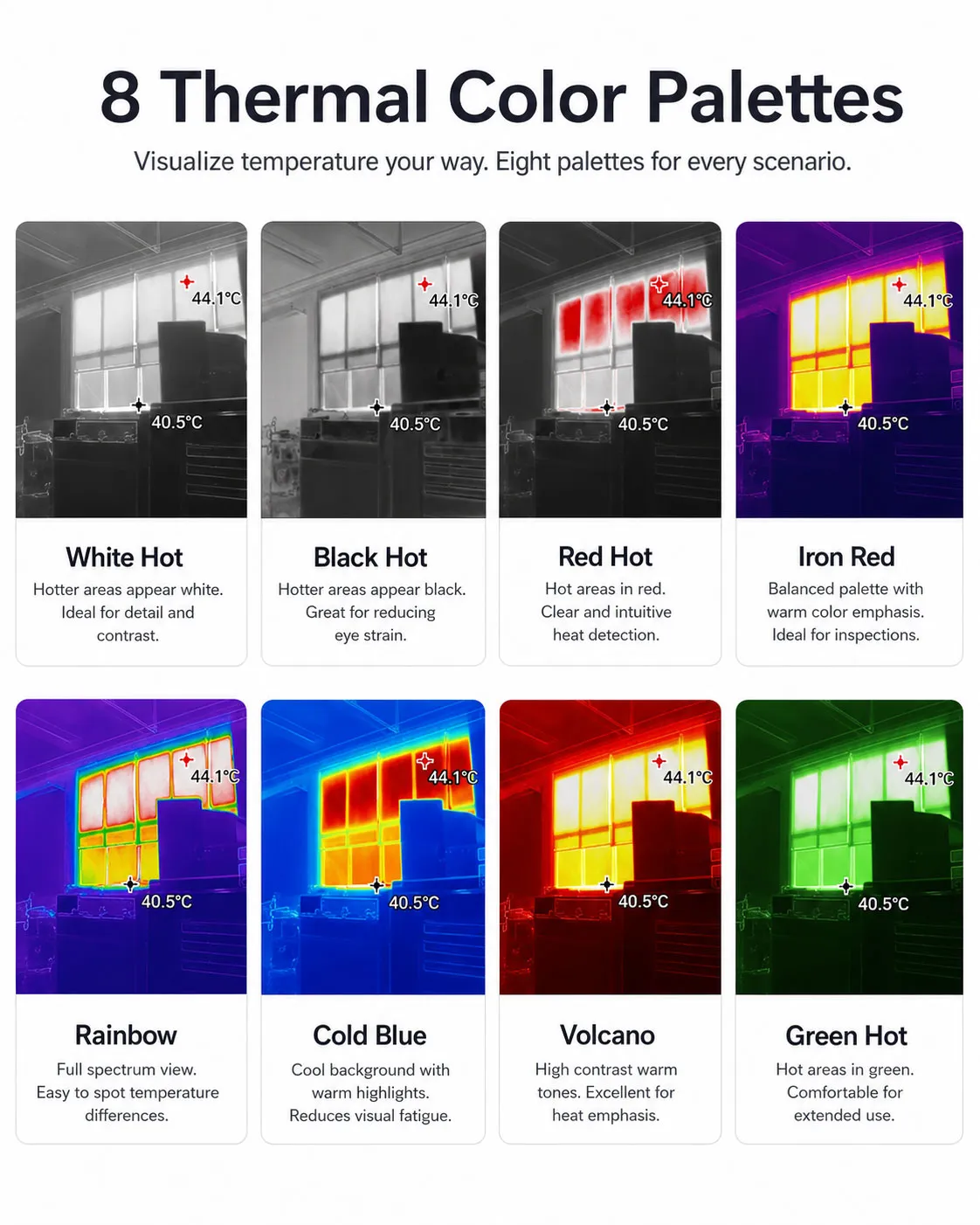

  • Eight Selectable Color Palettes: including Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, and Lava, for adapting the display to different targets and lighting conditions
  • 2.8-Inch Display: gives operators enough screen real estate for clear on-site review
  • Two Appearance Options: gives buyers a choice of housing styles with the same imaging performance
  • Eleven-Language Support: fits multinational maintenance teams and international field service operations

Theory and Method

Every object above absolute zero radiates infrared energy in proportion to its temperature, a relationship rooted in Planck's law of thermal radiation. The QualiTC™ 10 captures this energy in the long-wave infrared band, 8 to 14 micrometers, using an uncooled microbolometer detector array with 120×90 elements. Each element in the array changes electrical resistance as it absorbs incoming infrared radiation, and the camera's processor converts that resistance change into a temperature value for every pixel in the scene.

Raw pixel values become a usable thermal image once the onboard TisoView algorithm applies non-uniformity correction and contrast enhancement, sharpening detail across the 38° × 50° field of view. A NETD rating of 60 mK at 25°C means the sensor distinguishes temperature differences as small as 0.06°C, which lets the camera separate a genuinely hot component from normal background variation. Distance compensation adjusts the reading within two meters of the target, correcting for signal loss as infrared energy travels through air.

The laser indicator adds a visible reference point so the operator can confirm exactly where the center-point reading is being taken, since infrared and visible light do not always align perfectly on a handheld optical path. Combined with the camera's full-screen hotspot, cold spot, and regional measurement modes, this lets a single scan return both an overall thermal picture and a precise numeric reading at the location that matters most.

Infrared Thermal Imaging Camera - QualiTC™ 10 Technical Specifications

ParameterSpecification
IR Resolution120 × 90
Lens2.3 mm, F/1.1
Wavelength8 to 14 μm
Image AlgorithmTisoView image algorithm set
NETD60 mK @ 25°C
Field of View (FOV)38° (H) × 50° (V)
Measurement Range-20°C to 550°C (-4°F to 1022°F)
Frame Rate25 Hz
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, center point, and regional temperature measurement
Temperature CompensationDistance compensation within 2 meters
Color PalettesIron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, Lava
Screen Size2.8 inch
Image ModeThermal image
Language SupportEnglish, French, German, Spanish, Russian, Portuguese, Dutch, Arabic, Japanese, Korean, Chinese
InterfaceUSB Type-C (charging and data transfer)
Laser PointerSupported
BatteryBuilt-in lithium battery
Working HoursApproximately 4 hours, depending on environment
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
Storage Capacity8GB built-in memory (approximately 6.19GB available), stores more than 20,000 images
Image and Video FormatImage: JPG; Video: MP4
