Instant Vision System – QualiVS™ Ins Series
An Instant Vision System is a high-speed Vision System that measures multiple features in one capture. QualiVS™ Ins Series uses a cantilever bridge design, dual telecentric optics, and automated measurement software to support fast 2.5D inspection in production QC and metrology.
This Machine Vision System keeps the workpiece stationary while the imaging system handles measurement, which helps reduce handling error and operator variation. Two platform sizes and multiple configurations support different part sizes, throughput targets, and inspection workflows.

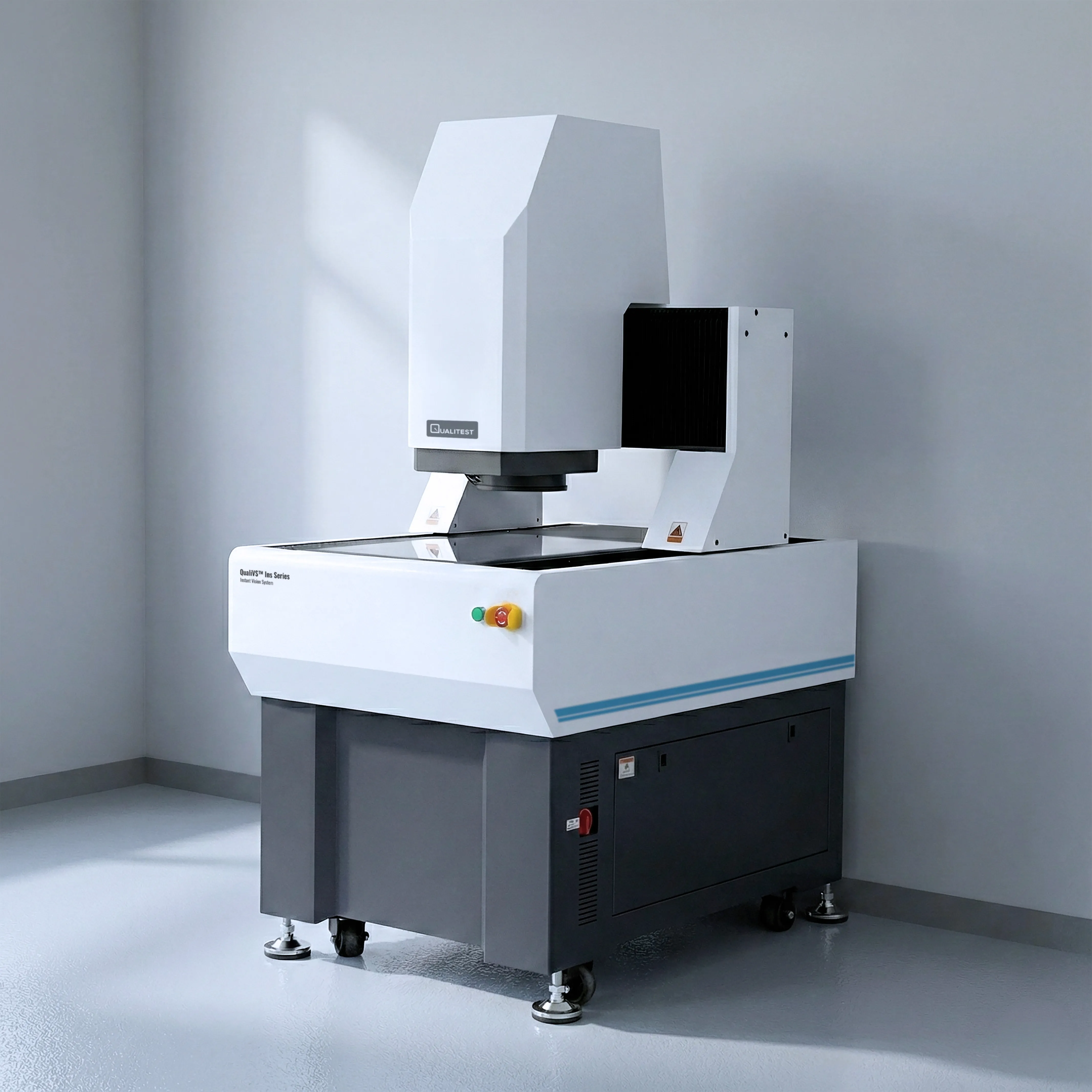

QualiVS™ Ins Series is a cantilever instant vision measuring system designed for rapid dimensional inspection of precision components. Dual 20 MP cameras and dual telecentric lenses support clear, repeatable imaging across wide-field and high-precision measurement modes.
Metus Flash Vision software supports program-based measurement, tolerance evaluation, and reporting for QC documentation. A multi-source illumination system includes contour lighting plus liftable multi-zone surface lighting and low-angle lighting to improve edge definition on mixed finishes.
