Load the Model CNC program model, support DXF import |  |
 | Place the workpiece No need to position, just place it |

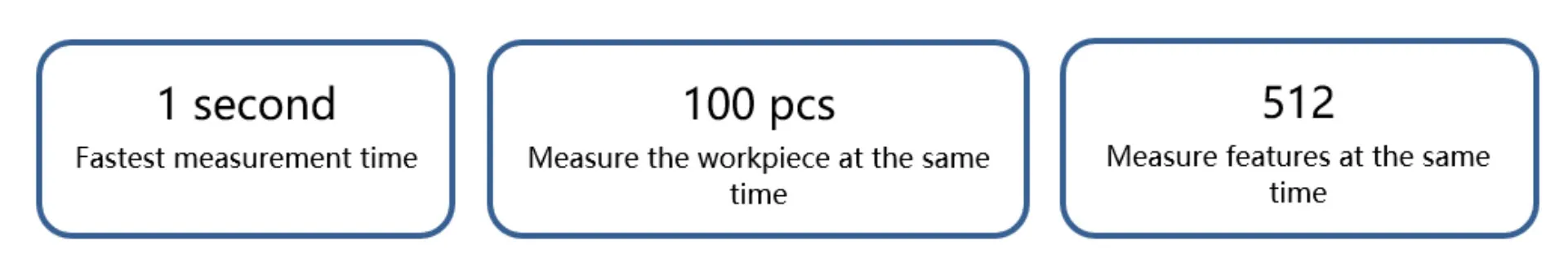

One-click measurement Press the Measure key or press the spacebar |  |
 | Low-distortion Bi-telecentric Double Lens |
Low-distortion Dual Telecentric Double Lens  |
Bi-telecentric double lens | Traditional telecentric lens |
Automatic Optical Focus  |
Before | After |
The new large-format image imaging has more pixels per unit size and higher accuracy  |
Traditional telecentric lens | Bi-telecentric double lens |
Optical system that can be switched at any time with dual field of view  |
Large field of view measurement | High-precision measurement |
Subpixel image processing  |
No subpixel processing | With subpixel processing |
Automatically remove anomalies  |
Edge fitting algorithm | Outlier removal |
Four kinds of Lighting System Green parallel bottom transmits  Gap light on the upper surface  Liftable gap light on the upper surface  Zero-degree gap illumination  |
