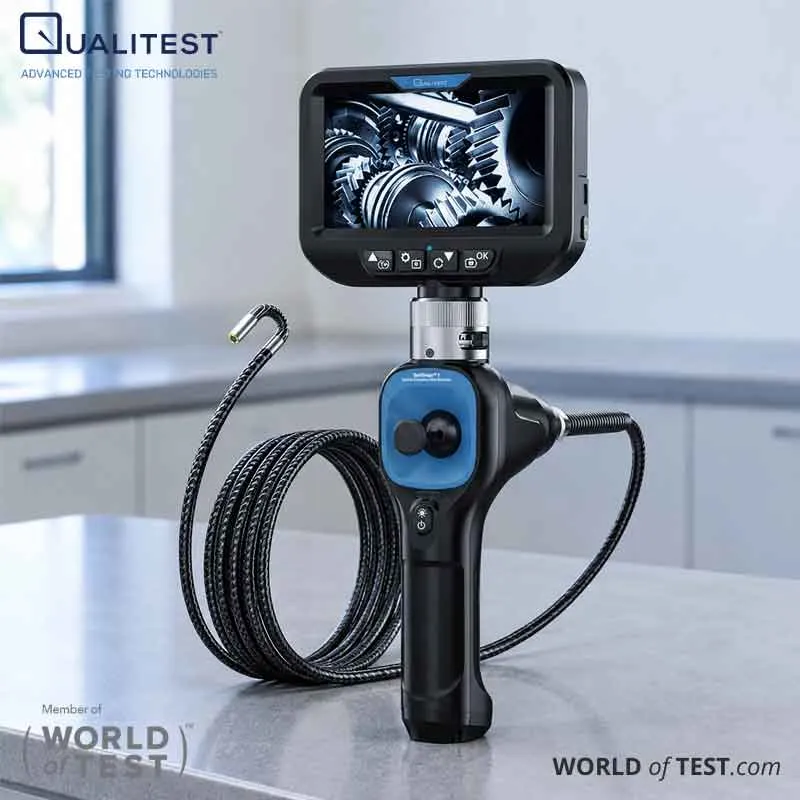

Joystick Articulating Video Borescope - QualiScope™ J

Joystick Articulating Video Borescope, model QualiScope™ J, gives inspectors one-handed 360° control of the probe tip to reach angled welds, turbine blades, and cavities that fixed-tip scopes miss. A thumb-operated joystick steers the articulating tip in any direction, so one hand sweeps around obstructions without moving the insertion point. Two probe options, 6.2 mm and 3.9 mm, cover large engine cavities and narrow tubing. The unit pairs an American OmniVision CMOS sensor and sapphire-glass lens for clear 1280×720 imaging in oily, wet conditions.

QualiScope™ J ships in two build formats to match different workflows. The Mobile Version streams live video to Android and iOS devices, while the Screen Version has an integrated display for standalone field use. Both formats capture photos and video, generate inspection reports on the device, and run on a detachable 3.7 V, 5,200 mAh lithium battery for extended shifts. A high-temperature alarm warns the operator and triggers automatic power-off before heat can damage the electronics.

The replaceable snake tube and detachable battery keep the QualiScope™ J serviceable in the field, so a damaged probe or a depleted cell does not sideline the whole unit. Quality-control teams across aerospace, precision casting, and automotive manufacturing use it for routine remote visual inspection without disassembling the equipment under test.

Joystick Articulating Video Borescope - QualiScope™ J Applications

Joystick Articulating Video Borescope

The Joystick Articulating Video Borescope supports remote visual inspection across manufacturing, maintenance, and quality-control settings where internal surfaces sit out of direct line of sight.

  • Aerospace and Aviation Maintenance: inspects turbine blades, combustion chambers, and compressor sections of aircraft and helicopter engines without teardown, cutting downtime during scheduled checks
  • Automotive Manufacturing and Repair: examines cylinder bores, valves, and combustion chambers for carbon buildup, scoring, and wear during assembly-line QC or workshop diagnostics
  • Precision Casting and Foundry Work: checks internal passages and cored cavities of castings for shrinkage porosity, inclusions, and surface defects before machining
  • Power Generation: surveys industrial gas turbines, steam turbines, and heat exchangers for cracks, corrosion, and blade erosion
  • Weld Inspection: verifies internal weld quality and root penetration inside pipes, tubes, and pressure vessels
  • Oil, Gas, and Petrochemical: inspects pipework, valves, and vessel interiors for corrosion, pitting, and deposit formation at confined access points
  • General Machinery and Equipment Maintenance: locates debris, wear, and damage inside gearboxes, pumps, and hydraulic assemblies during predictive maintenance

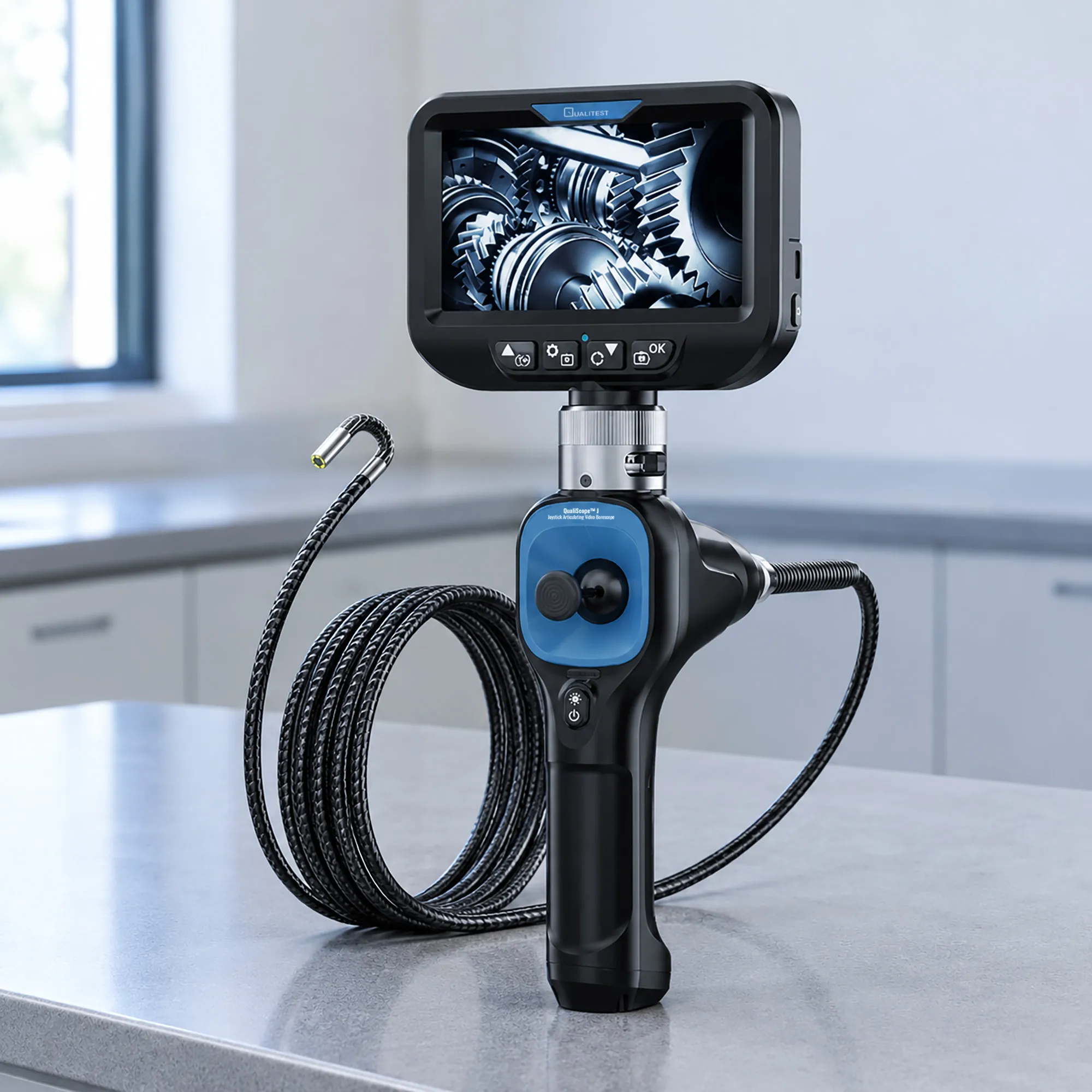

Joystick Articulating Video Borescope

Joystick Articulating Video Borescope - QualiScope™ J Key Features

The Joystick Articulating Video Borescope combines steering, imaging, and protection features aimed at fast, repeatable field inspection.

  • 360° Joystick Articulation: high-sensitivity thumb control steers the tip in every direction, so one hand navigates around bends and off-axis targets
  • American OmniVision CMOS Sensor: delivers clear 1280 × 720 imaging with dependable color and low-light response for defect detection
  • Sapphire-Glass Lens: resists scratches and repels oil and water, holding image clarity in engines, castings, and wet environments
  • High-Temperature Alarm and Auto Power-Off: warns the operator in hot cavities and shuts down before heat damages the probe, protecting the tool
  • Android and iOS Compatibility (Mobile Version): streams live video to a phone or tablet the technician already carries, removing the need for a separate monitor
  • On-Device Report Generation: compiles captured images and video into inspection reports, speeding up documentation and hand-off
  • Replaceable Snake Tube: swaps a worn or damaged probe without replacing the handset, lowering long-term cost of ownership
  • Detachable Lithium Battery: a 5,200 mAh cell powers long shifts and swaps out quickly to keep inspections running
  • IP67-Rated Insertion Tube: seals the probe against dust and water immersion for work in harsh, wet conditions
  • Dual Probe Diameters (4 mm and 6 mm): matches probe size to the access opening, from narrow tubing to larger engine cavities

Theory and Method

Joystick articulation works through control cables that run the length of the insertion tube to the bending section at the tip. Four cables sit at 90° intervals around the probe, and the joystick links to all four. Moving the joystick toward a target pulls the cable on that side and pays out the opposite one, so the tip curves in the same direction. Diagonal input tensions two cables at once, producing smooth motion through a full 360° cone.

At the tip, a 1/9-inch CMOS image sensor captures the view through a sapphire-glass lens. The sensor converts reflected light into a 1280 × 720 digital signal that travels back up the tube to the display or the paired smart device. Integrated LED illumination lights the cavity, since internal surfaces receive no ambient light. The sapphire lens resists scratching and blocks oil and water, which keeps the image clean inside engines and wet machinery.

Probe selection sets the reachable geometry and the usable focus range. The 6.2 mm probe offers a 90° field of view and a 20 to 100 mm depth of field for larger cavities, while the 3.9 mm probe gives an 80° field of view and a 50 to 80 mm depth of field for tighter access. Depth of field defines the distance band over which features stay in focus, so operators match probe size and standoff distance to the detail they need to resolve.

Joystick Articulating Video Borescope - QualiScope™ J Technical Specifications

ParameterQualiScope™ J6QualiScope™ J4
Lens DiameterØ6.2 mmØ3.9 mm
Snake Tube Length1 m / 2 m / 3 m1 m / 2 m / 3 m
Snake Tube MaterialElastic metal hoseTungsten wire braided mesh
Depth of Field (DOF)20 to 100 mm50 to 80 mm
Field of View (FOV)90°80°
Image Sensor1/9" CMOS
Pixel Resolution1280 × 720
Battery3.7 V / 5,200 mAh lithium
Operating Temperature-10°C to +50°C
Protection RatingHost: non-waterproof; Snake tube: IP67
FunctionsHigh-temp power-off, temperature display, report generation, photo/video capture
Available VersionsMobile (Android / iOS) and Screen
