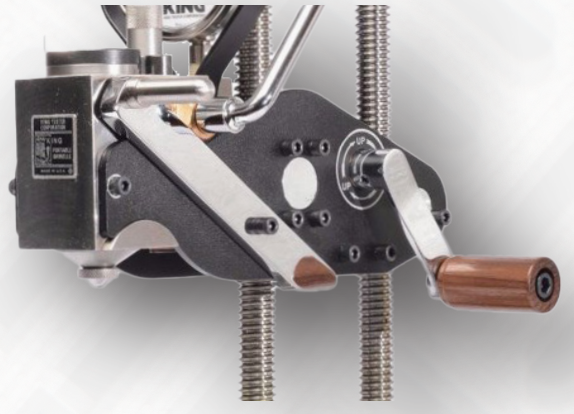

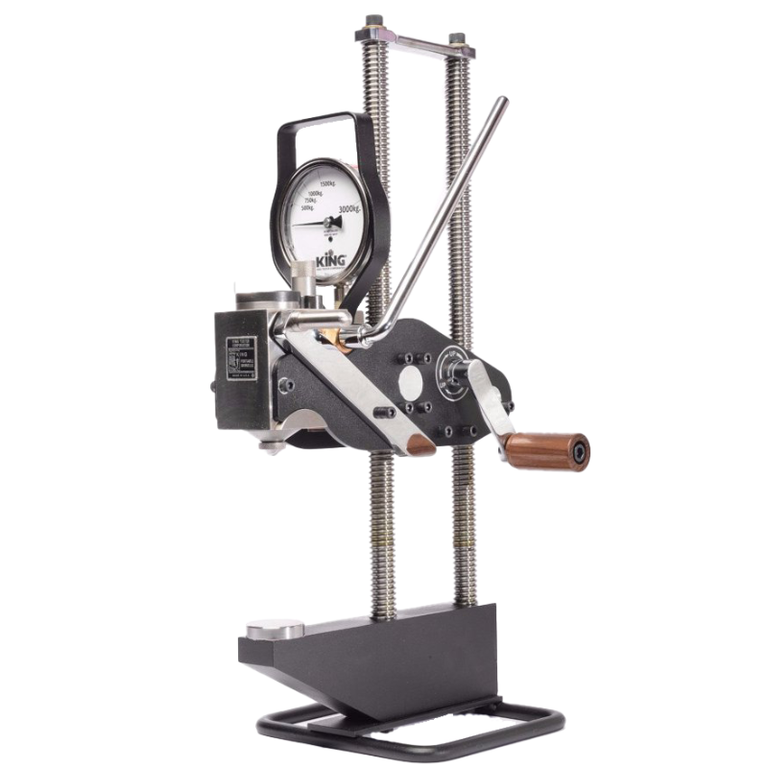

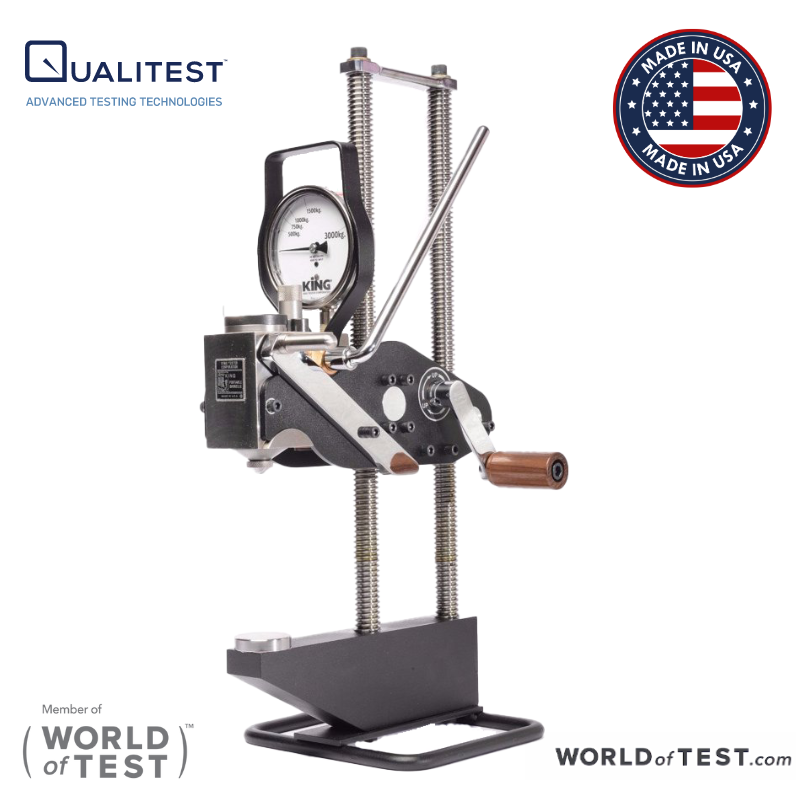

King Brinell Tester Buy Now Parent Product Portable Hardness Tester Brinell Hardness Tester Standards ASTM E110 The King Portable Brinell Tester is the most reliable, user-friendly, and affordable portable Brinell tester and the ONLY portable Brinell tester on the market that is Directly Verifiable. Applications Features/Advantages Theory/Method Technical Specifications Video Versatile enough to test virtually any size and shape of metal specimen, these testers are easy to use. The operator simply places the specimen between the anvil and the test head, cranks the test head down onto the specimen, locking the tester in place, closes the pressure release valve, and pulls the hydraulic lever until desired load is reached.The tester applies up to a 3,000 kg load on a 10mm ball, making a lasting impression, which is available for re-reading at any time. A by-pass valve is automatically activated at the calibrated load, eliminating the chance of overloading.The impression is then read and recorded by the operator using a Brinell microscope such as "Deep reading microscope" or KingScan®IV automatic Brinell microscope. This portable Brinell hardness tester meets all international standards for Brinell testing including ASTM E-110, British Standard #240, Pt.2, Sect.1 and JIS Standards, and is calibrated to 1/2 of 1% of load on equipment traceable to NIST Standards.Optional Adapters and Component PartsKING Portable Brinell Testers are versatile enough to test any size and shape of metal.Long Ram Test Head for easy access into recessed areas or over raised edges.Low Pressure Test Head for softer metals, can be calibrated to release loads of 62.5 kgf, 125 kgf, 250 kgf, 500 kgf, 750 kgf or 1000 kgf.Chain Adapter for testing an unlimited range of differently sized parts. Comes with 4’ of chain. Longer lengths available.KING Tester Bases allow testing of your tallest and widest metal pieces.C-1 Standard Base - 13 1⁄2” Gap with 4” Throat for metal or round parts with a max. dia. of 8”.C-5 Base - 13 1⁄2” Gap with 6” Throat for wide parts including pipes with a max. dia. of 12”.C-6 Base - 20” Gap with 4” Throat for tall parts, such as pipes with large openings.C-7 Base - 20” Gap with 6” Throat for your largest parts on the shop floor or in the field.KING Tester microscopes and automatic readers fit your every need.KingScope requires less surface preparation because of the nose piece design.KingScope 100 rugged, portable ASTM Type A scope with 0.01 mm accuracy. LED illumination allows for easy and quick focus.KingScope automatic digital microscope, reads impressions to within 0.001 mm accuracy. Uses digital camera and computer software to record and save data.KING Tester Test Blocks are traceable, serialized, affordable and meet ASTM E-10 standards of 1% tolerance. Our patented, etched, crosshair design improves test accuracy.KING Master Test Block (2” x 6”) is available in multiple formats including HB 30, HB 15, HB 10, and HB 5.KING Master Test Block (4” x 4”) is available for all Brinell scales. The larger block size reduces your cost per indent. The etched alphanumeric grid improves record keeping accuracy King Brinell Tester Features:ACCURATEManufactured to the most exacting tolerances ensuring consistent, repeatable resultsCertifications/Standards ASTM E-10, ASTM E-110, ISO 17025Calibrated with traceability to NISTCalibrated to build, then release, a load of 3000 kgf of pressurePermanent impression can be checked and recheckedHas a 360° orientation and is self-aligningDURABLETungsten carbide ball certified for density and roundnessStroke limiter for reduced operator error and provides consistent performance between operatorsOne-year Limited WarrantyCalibration and service plans availableVERSATILECan be used in virtually any position; right side up, upside down, or even sideways.Portable so either the part can be moved to the tester or you can take the tester to the partLightweight and easy to maneuverFully interchangeable with multiple basesOnly one operator requiredFlat, dome and “V” anvils supplied as standard equipment This test method includes requirements for the use of portable Brinell hardness testing machines that measure Brinell hardness by the Brinell hardness test principle and can meet the requirements of this test method, including the direct and indirect verifications of the testing machine. Operation Method/PrincipleBrinell (Tungsten Carbide ball with a manual hydraulic applied load)Certifications/StandardsASTM E-10, ASTM E-110, ISO 17025Dimensions & Weight23.5” x 11” x 12”; 38 lbs.ScalesHB30, HB15Loads3000 kgf, 1500 kgfLoad ApplicationManualTester Base Capacity4” horizontal reach and 13.5” vertical (larger bases available) RequestQuotation King Brinell Tester First Name Last Name / Surname Position Email Phone Number Company Name Company Type - None -ManufacturerResellerGovernmentUniversity Country - Select -AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua & BarbudaArgentinaArmeniaArubaAscension IslandAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBosnia & HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBritish Virgin IslandsBruneiBulgariaBurkina FasoBurundiCambodiaCameroonCanadaCanary IslandsCape VerdeCaribbean NetherlandsCayman IslandsCentral African RepublicCeuta & MelillaChadChileChinaChristmas IslandClipperton IslandCocos (Keeling) IslandsColombiaComorosCongo - BrazzavilleCongo - KinshasaCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d’IvoireDenmarkDiego GarciaDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard & McDonald IslandsHondurasHong Kong SAR ChinaHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKosovoKuwaitKyrgyzstanLaosLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacao SAR ChinaMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmar (Burma)NamibiaNauruNepalNetherlandsNetherlands AntillesNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorthern Mariana IslandsNorth KoreaNorth MacedoniaNorwayOmanOutlying OceaniaPakistanPalauPalestinian TerritoriesPanamaPapua New GuineaParaguayPeruPhilippinesPitcairn IslandsPolandPortugalPuerto RicoQatarRomaniaRussiaRwandaRéunionSamoaSan MarinoSarkSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia & South Sandwich IslandsSouth KoreaSouth SudanSpainSri LankaSt. BarthélemySt. HelenaSt. Kitts & NevisSt. LuciaSt. MartinSt. Pierre & MiquelonSt. Vincent & GrenadinesSudanSurinameSvalbard & Jan MayenSwedenSwitzerlandSyriaSão Tomé & PríncipeTaiwanTajikistanTanzaniaThailandTimor-LesteTogoTokelauTongaTrinidad & TobagoTristan da CunhaTunisiaTurkmenistanTurks & Caicos IslandsTuvaluTürkiyeU.S. Outlying IslandsU.S. Virgin IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVatican CityVenezuelaVietnamWallis & FutunaWestern SaharaYemenZambiaZimbabweÅland Islands State/Province Timeline - None -Less than one monthOne to three monthsFour to six monthsLonger than six months Message
