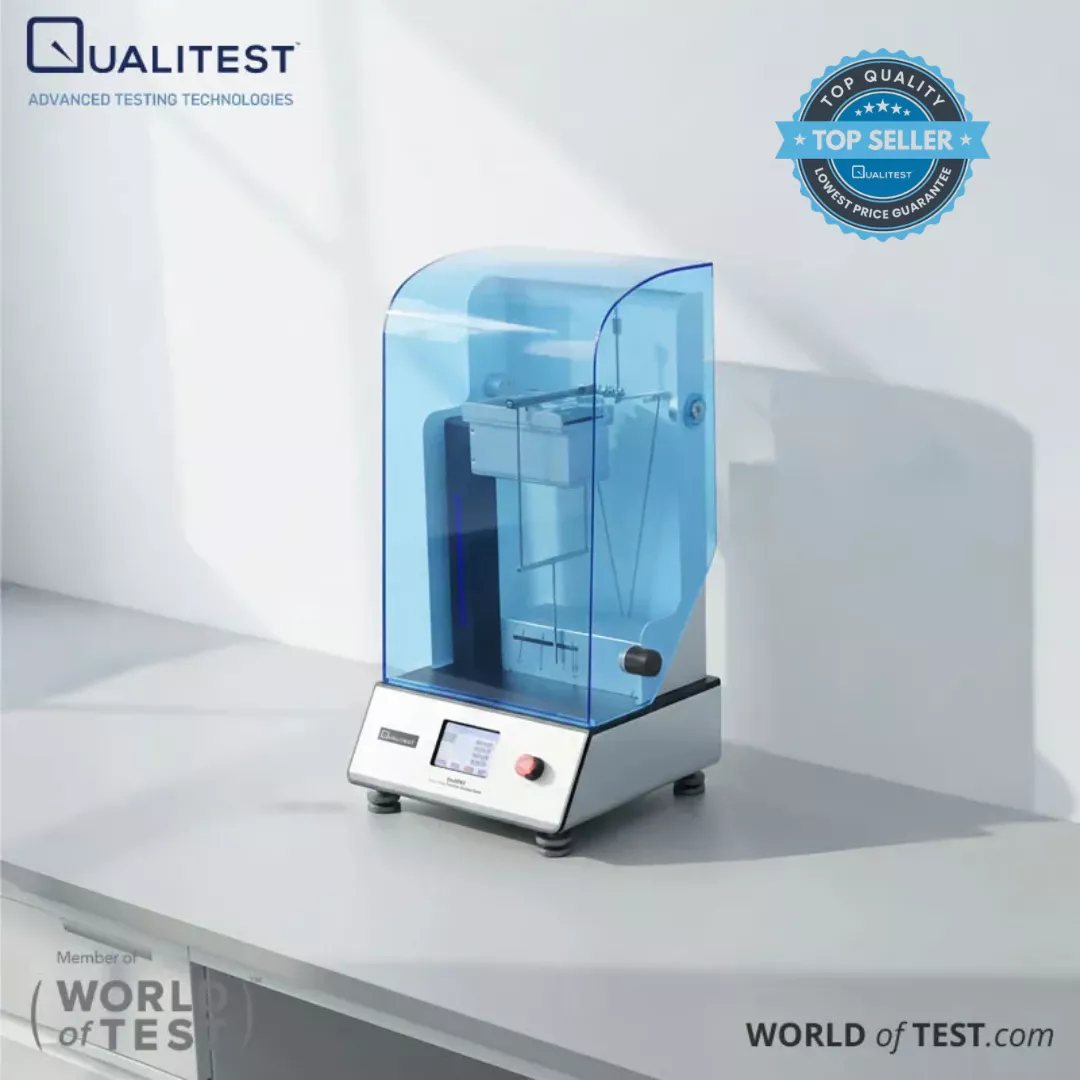

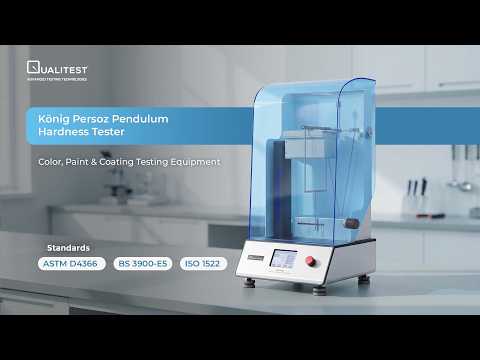

König Persoz Pendulum Hardness Tester

Features of QualiPHT™  König Persoz Pendulum Hardness Tester:

• Large capacitive touchscreen displays a wide range of testing parameters, along with ambient temperature and humidity, presented in a clear and user-friendly layout.
• One-touch start automatically initiates the test. The pendulum moves to the release position, test panels are clamped, and the process completes automatically—streamlining operation and minimizing the risk of human error.
• The uniquely designed automatic lifting platform clamps test panels within 3 seconds, maintaining a consistent clamping force of at least 25N. The platform remains stable throughout the test, even during pendulum movement.
• The high-precision pendulum is crafted using advanced machining techniques to deliver consistent and reliable test results—on par with leading international models.
• The full lift-up acrylic door offers easy access and a larger working area, while also minimizing data fluctuation caused by airflow. A unidirectional resistance mechanism prevents sudden impacts when the door closes.
• Supports two interchangeable test methods: K pendulum (König) and P pendulum (Persoz).
• Uses an electromagnet to release the pendulum, enhancing accuracy and consistency.
• Built-in high-accuracy inclinometer (±0.05°) allows users to monitor and correct horizontal deviation directly from the touchscreen, ensuring easy and precise setup.
• Automatically tracks and displays timing in real time. The system stops the test when the deviation reaches 3° (König) or 4° (Persoz), and calculates the total test duration.
• Historical test data can be reviewed for easy comparison and analysis.
• Compatible with test panels ranging from 0.1mm to 5.5mm in thickness.
• Supplied with a calibration certificate.
