Large Capacity Freeze Dryer – QualiFD™ L Series

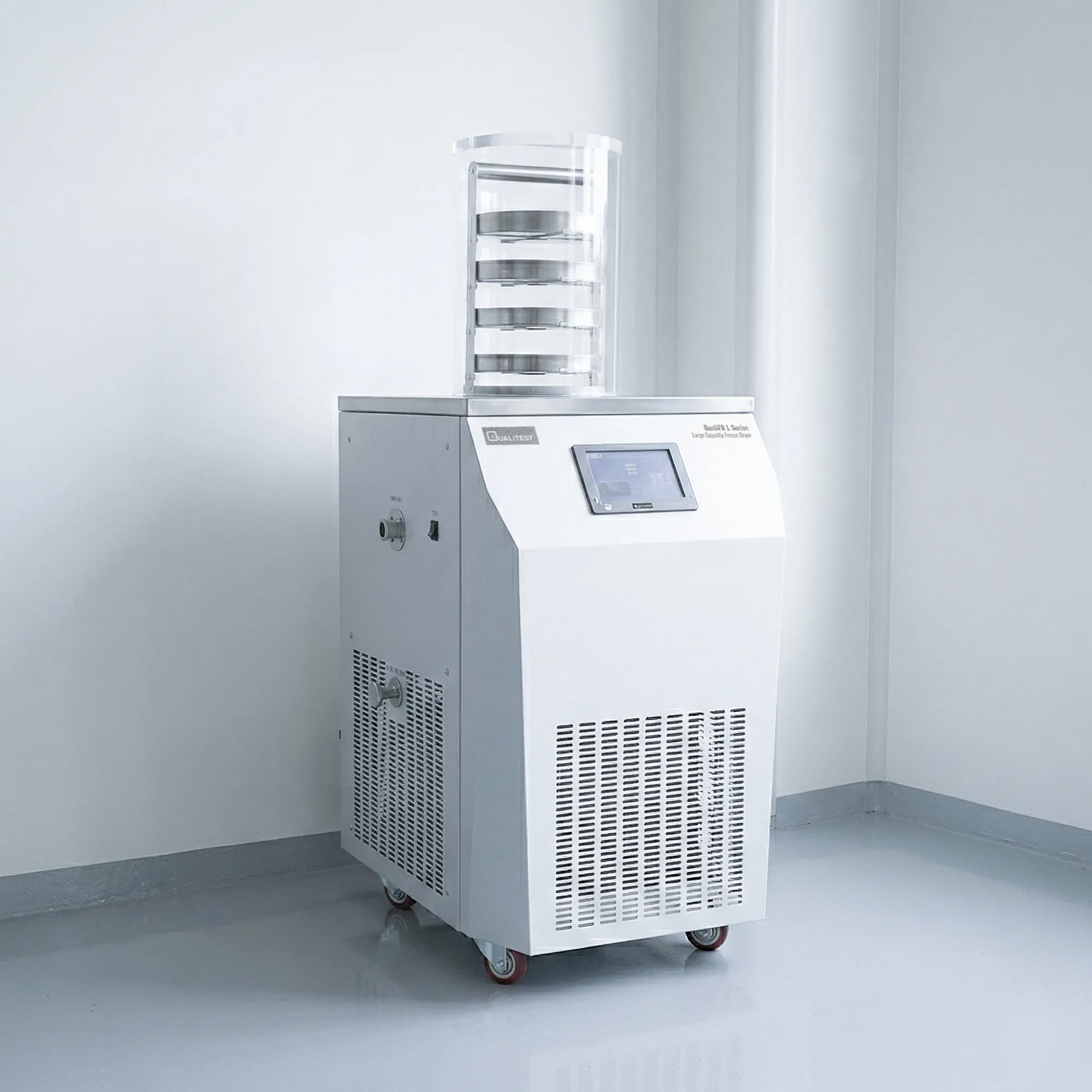

A Freeze Dryer from the QualiFD™ L Series is a floor-standing Freeze Dryer Machine built for higher-throughput lab lyophilization when benchtop capacity is not enough. The series targets medicine, pharmaceuticals, biological research, chemistry, and food labs that need a larger freeze-drying area and stronger daily run capacity.

Caster wheels support moving the unit between work areas in shared lab environments. QualiFD™ L Series is an integrated, floor model designed to handle routine freeze-drying with an expandable drying area up to 0.27 m².

The cold trap and work surface use stainless steel to support cleaning and corrosion resistance in daily use. Product-contact materials are described as inert for GLP-oriented lab work. A large cold-trap opening and pre-freeze capability support many workflows without a separate low-temperature freezer. A touchscreen controller displays and records cold trap temperature, sample temperature, and vacuum curves for traceable runs.

Large Capacity Freeze Dryer – QualiFD™ L Series Applications

  • Pharmaceutical and medical research: Freeze drying helps stabilize APIs, excipients, and formulation trials that degrade in solution. The top-press configuration supports vial workflows where vials can be stoppered after drying under vacuum. Logged process curves help R&D teams compare cycles and document batch-to-batch consistency.
  • Biology and biotechnology: Labs freeze-dry biological samples and reagents to support longer storage and easier transport. The ampoule-tube configuration is designed for microorganism preservation workflows such as bacteria and fungi. A larger-capacity platform helps labs process more samples per run while keeping the process in a controlled vacuum environment.
  • Chemistry and materials development: Freeze drying supports solvent removal at low temperature for heat-sensitive compounds, suspensions, and porous materials. Manifold configurations allow drying in external bottles or containers when your workflow uses multiple vessels. Stainless cold trap and work surfaces support routine cleaning when working with common lab solvents.
  • Food and ingredient R&D: Freeze drying is used for pilot studies on ingredients where heat-based drying can change texture or aroma. The larger tray area supports higher sample volume screening for process development. Mobility helps teams share one Freeze Dryer Machine across multiple R&D rooms or departments.
Large Capacity Freeze Dryer – QualiFD™ L Series

Standards

  • ISO 13408-3 (Aseptic processing, Part 3: Lyophilization)
  • ASTM E3250 (Instrumentation best practices for pharmaceutical freeze drying)
  • IEC 61010-1 (General safety requirements for laboratory electrical equipment)

Large Capacity Freeze Dryer – QualiFD™ L Series Key Features

  • Integrated one-piece construction intended to reduce leak points and simplify installation in lab spaces
  • GLP-oriented design notes with inert product-contact materials
  • Stainless steel cold trap and work surface for corrosion resistance and easier cleaning
  • All-stainless venting valve design intended to reduce leak risk and support safer operation
  • Pre-freeze workflow support using a large cold-trap opening and pre-freezing function
  • Gas flow control approach intended to improve ice capture uniformity in the cold trap
  • 7-inch touchscreen controller with real-time curves and export for review, printing, and reporting
  • Built-in alarms and protection logic for runtime, temperature, and component status monitoring
  • Electric defrost function intended to shorten turnaround time between runs
  • Caster-wheel base for easier relocation around the lab

Theory and Method

Freeze drying removes solvent from a frozen product using vacuum so ice can sublimate rather than melt. A typical cycle includes freezing, primary drying (sublimation under controlled pressure), then secondary drying to reduce bound moisture.

Vapor is captured on the cold trap, and cold-trap temperature plus chamber pressure affect capture efficiency and drying rate. Sample temperature monitoring helps you keep product below its formulation limits during primary drying. After drying, the chamber is vented back to atmospheric pressure before unloading and sealing.

Large Capacity Freeze Dryer – QualiFD™ L Series Technical Specification

Large Capacity Freeze Dryer – QualiFD™ L Series

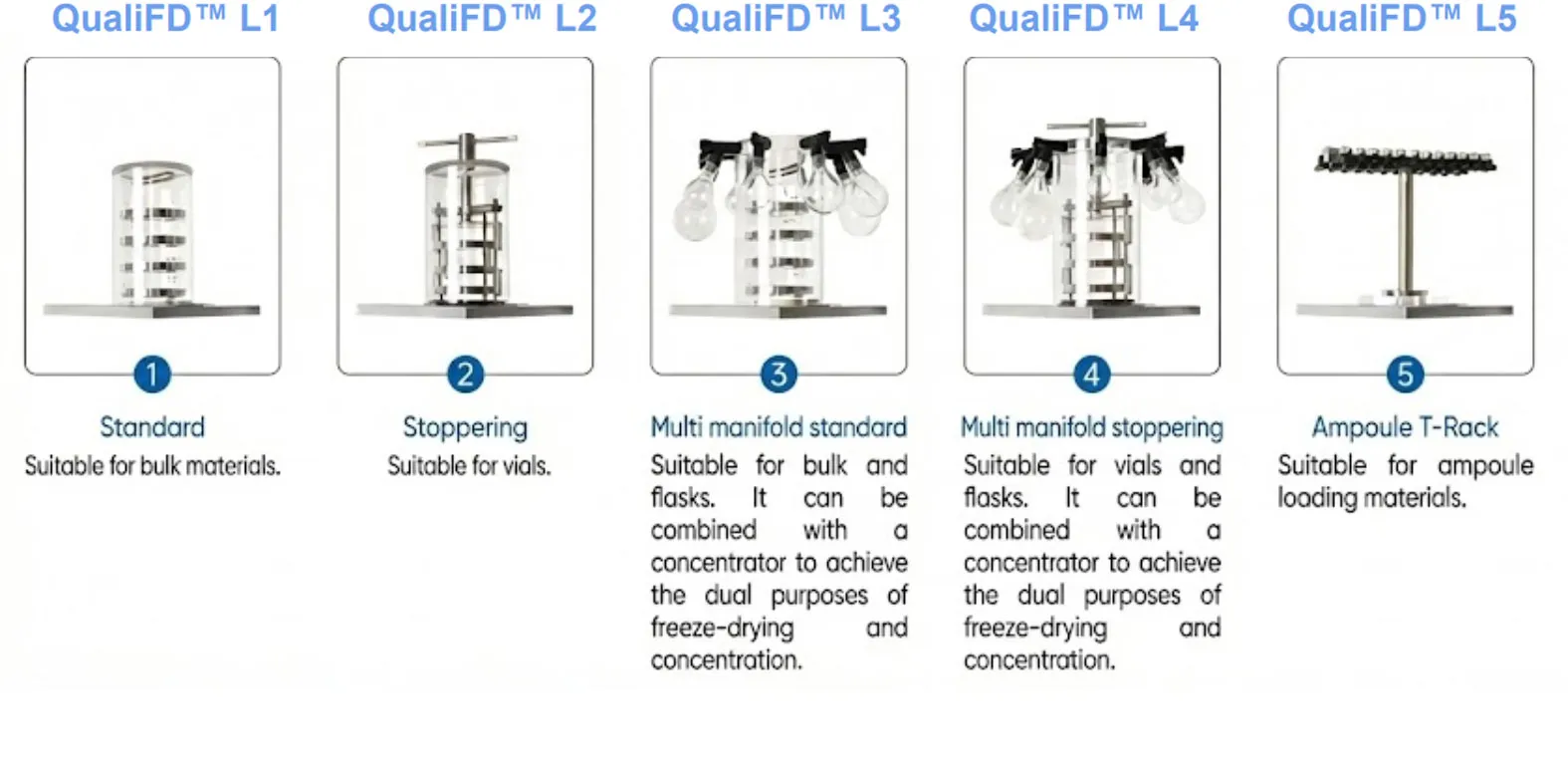

  • QualiFD™ L1 (Standard): 4–6 stainless trays for bulk materials (liquid, paste, solid).
  • QualiFD™ L2 (Top-Press): 3 trays with adjustable spacing; supports vial drying and vacuum stoppering after drying.
  • QualiFD™ L3 (Standard + Multiple Manifolds): tray drying plus external hanging bottle attachment for vials or wide-mouth bottles; attachment can be removed during use.
  • QualiFD™ L4 (Top-Press + Multiple Manifolds): combines top-press vial workflow with manifold capability.
  • QualiFD™ L5 (Ampoule Tube): 24 ampoule interfaces for microorganism preservation workflows.

Full technical parameters

SpecificationQualiFD™ L1QualiFD™ L2QualiFD™ L3QualiFD™ L4QualiFD™ L5
ConfigurationStandardTop-pressStandard + multiple manifoldsTop-press + multiple manifoldsAmpoule tube
Freeze drying area0.18 / 0.27 m²0.09 m²0.18 / 0.27 m²0.09 m²—
Cold trap temperature≤ -60 °C (optional ≤ -80 °C, ≤ -110 °C no-load)
Ultimate vacuum< 5 Pa (no-load)
Water capture capacity6 kg/24 h
Material tray240 mm, 4 layers (optional 6)200 mm, 3 layers240 mm, 4 layers (optional 6)200 mm, 3 layers—
Overall power1400 W
Main unit weight105 kg
Dimensions (W×D×H)630×580×970 mm + (445 drying chamber)630×580×970 mm + (540 drying chamber)630×580×970 mm + (445 drying chamber)630×580×970 mm + (540 drying chamber)630×580×970 mm + (440)
Loadable materials (10 mm thickness reference)1.8 / 2.7 L0.9 L1.8 / 2.7 L0.9 L—
Loadable vials (tray reference)Φ12: 615; Φ16: 345; Φ22: 183Φ12: 615; Φ16: 345; Φ22: 183———
