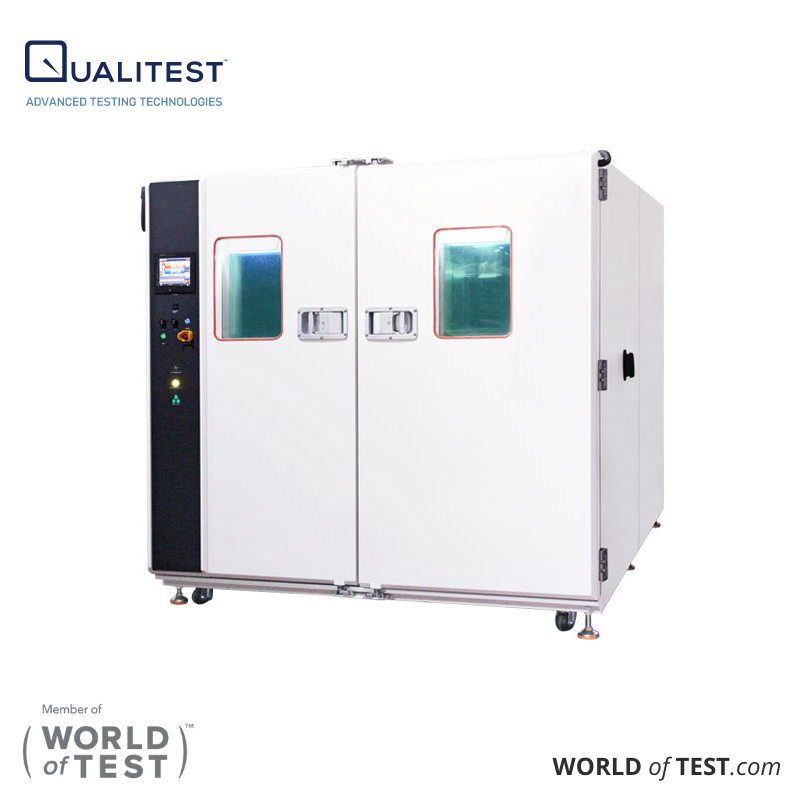

Large Capacity Landing-type Temperature and Humidity Test Chambers
Large Capacity Landing-type Temperature and Humidity Test Chambers

Large Capacity Landing-type Temperature and Humidity Test Chambers
Parent Product
Temperature & Humidity Test Chambers
Standards
IEC 61215
IEC 61646 10.11
JIC C 8938
JIS C-8917
JIS C-8990

Our Landing-type Large Capacity Temperature and Humidity Test Chambers, with capacities from 1,000L to 8,000L are suitable to test relatively large test samples with high performance and control. These chambers are popular for applications such as solar PV module testing, and they are available in 6 standard capacities.

Meeting various testing conditions, these features of these Large sized Landing-type Temperature and Humidity Test Chamber can be adjusted. They offer a wide temperature range (-70°C to +180°C), a large observation window, and a user-friendly control panel. Remote control capabilities are also available via mobile app or PC.

Large Capacity Landing-type Temperature and Humidity Test Chambers

Large Capacity Landing-type Temperature and Humidity Test Chambers

Standard:

  • JIS C-8917 Thermal cycling test A-1
  • JIC C-8938 Thermal resistance test B-1, Moisture resistance test B-2
  • IEC 61215 (JIS C-8990) 10.11 Thermal cycling test 10.12 Humidity-freeze test 10.13 Damp-heat test
  • IEC 61646 10.11 Thermal cycling test 10.12 Humidity-freeze test 10.13 Damp-heat test
Large Capacity Landing-type Temperature and Humidity Test ChambersLarge Capacity Landing-type Temperature and Humidity Test Chambers

Large Capacity Landing-type Temperature and Humidity Test Chambers Technical Specifications:

ModelQT-THC-1000LQT-THC-1800LQT-THC-2520LQT-THC-3600LQT-THC-5000LQT-THC-8000L
Inner Volume1000 L1800 L2520 L3600 L5000 L8000 L
Inner chamber size (WxhxD) mm1000*1000*10001000*1500*12001200*1500*14001200*2000*15001500*1800*18502000*2000*2000
Outer chamber size (WxhxD) mm1200*1550*24501200*2000*26501400*2000*28501400*2350*29501700*2150*33002300*2450*3600
Temperature range-70°C ~ 180°C (A:0°C ~ 180°C; B: -20°C ~ 180°C; C: -40°C ~ 180°C; D: -70°C ~ 180°C)
Humidity range20.0%RH~98.0%RH
