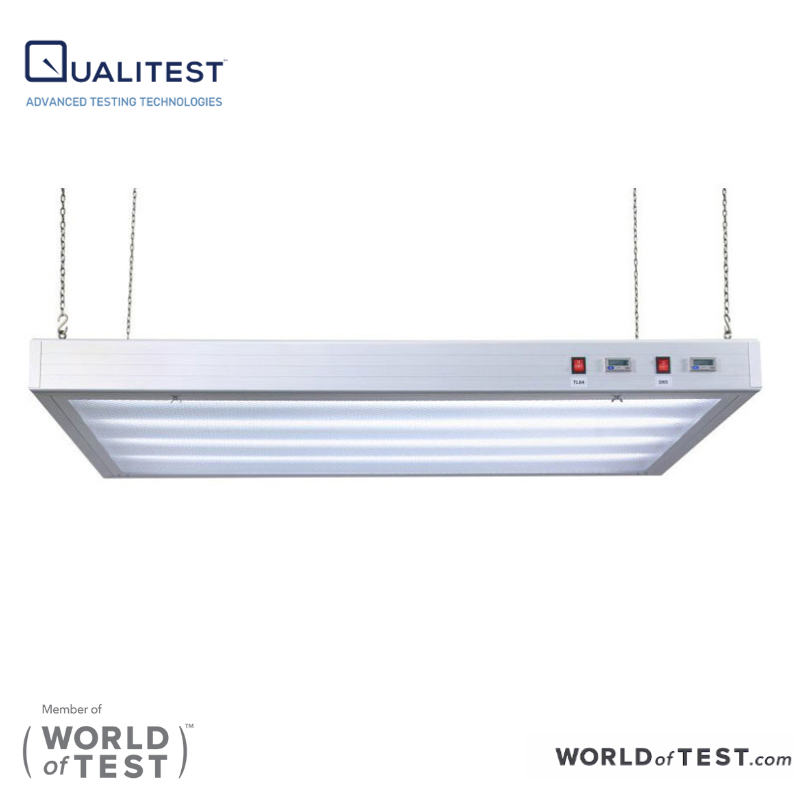

Hanging Color Assessment Viewer QT-CC120-W

Operation Instructions:

1. Insert the power cord and the docking station into the power socket located at the top of the Color Viewer. Ensure the other end is connected to a mains power supply that matches the Color Viewer's indicated input power.
2. To activate a specific light source, press the corresponding light source switch. The respective light source lamp illuminates, and the Color Viewer's timer starts counting. To switch between light sources, turn off the current light source and press the switch for the desired light source. To activate multiple light sources simultaneously, press their respective switches together.
3. Position the item to be inspected at the center of the table. When comparing colors of multiple items, place them side by side on the table and align them as centrally as possible. Avoid placing unrelated items on the tabletop during work to prevent interference with color perception.
4. After completing the test, turn off all activated light source switches. Power off the Color Viewer when not in use, and if it won't be used for an extended period, unplug the power cord.
5. When replacing the lamp tube, locate the two white cap screws on the front of the light-transmissive glass. Unscrew these and gently lower the light-transmissive glass. Remove the lamp that needs replacement and install the new one, ensuring correct positions for different light sources to avoid errors.

Considerations for Daily Use and Maintenance of the Color Viewer:

1. Standard light source usage: Allow the light source lamp to illuminate for 30 minutes to reach optimal color temperature, color rendering index, and illuminance. Avoid frequent switching unless necessary to extend the lamp's lifespan.
2. Light source lamp lifespan: After 2000-3000 hours of use, the standard light source lamp's color temperature, color rendering index, and illuminance will diminish. It's advisable to replace it promptly to maintain the desired color effect.
3. Cleaning and maintenance: Before cleaning or performing maintenance, disconnect the power plug to ensure safety. Use a standard cleaning agent and a clean, soft cloth to wipe the device. Avoid direct washing with water.

Warranty Description:

1. The light source products are guaranteed for one year. If there's any product quality issue within this period, our company will take responsibility for repair or replacement.
2. All our products come with standardized packaging. If the user discovers damage to the package or the product inside, please contact us immediately for assistance.
3. Replace the professional standard light source lamp if it becomes damaged within the warranty period.
4. For any installation or usage issues, please directly contact our technical engineers for assistance.

Lamp Introduction:

Specially designed artificial daylight sources for printing:

1. D50 standard light source lamp - Simulates Warm Daylight
   • High color rendering index CRI≥95 or CRI=98
   • Complies with ISO 3664:2009 printing standard observation conditions
   • Designed exclusively for use with imported printing machines like Graphica Pro and COLOR proof series
   • Available in 60cm 18W/950 T8 Graphica Pro imported from Europe
   • Also available in 120cm 36W/950 T8 Graphica Pro imported from Europe
2. D65 standard light source lamp - Simulates Cold Daylight
   • High color rendering index CRI≥95 or CRI=98
   • Conforms to ISO 3664:2009 printing standard observation conditions
   • Specially designed light source for color viewers and color light boxes, such as T60+, P60+, CC120 series
   • Available in 60cm 18W/965 T8 Graphica Pro imported from Europe
   • Also available in 120cm 36W/965 T8 Graphica Pro imported from Europe

Other Common Light Sources:

1. CWF light source lamp (4150K, cool white fluorescent, used in US stores as a light source)
2. TL84 light source lamp (4000K, commonly used in European and Japanese store lighting)
3. U30 light source lamp (3000K, utilized in American store lighting)
4. U35 light source lamp (3500K, designated light source for United States Target Department)
5. Light source tube (UV source for detecting products using fluorescent and whitening dyes)
6. A light source bulb (2856K, used in American shop window spotlights/home incandescent lighting, serves as a color reference light source)
