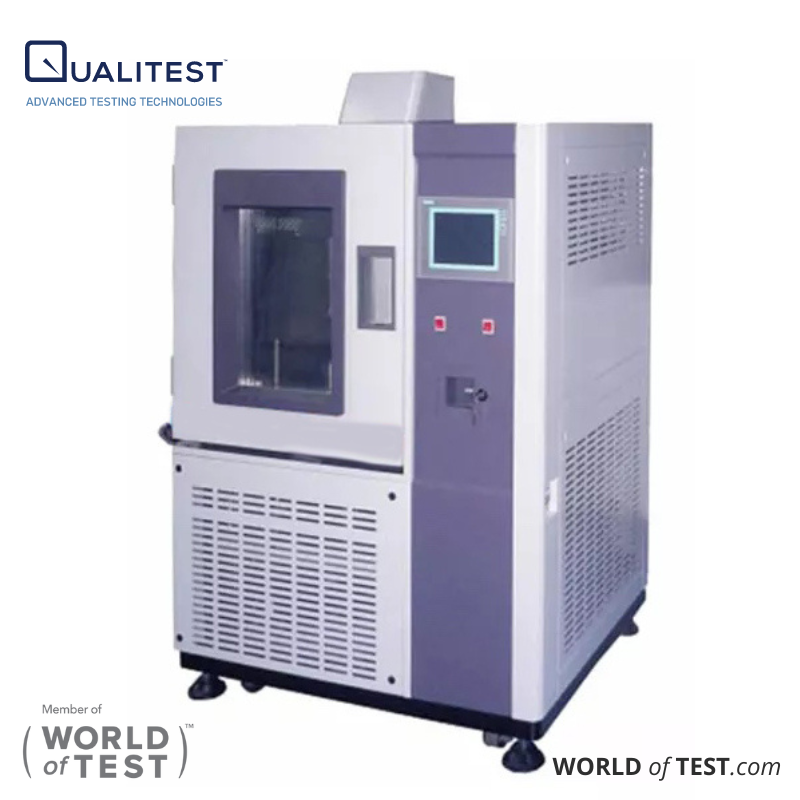

In sub-zero operating environments down to -50 °C, rubber seals, O-rings, automotive gaskets, and elastomeric components experience combined thermal contraction and mechanical stress decay. If sealing force drops below system line pressure, joint leakage occurs. The Qualitest Low Temperature Stress Relaxation Tester – Creep Tester (-50°C~0°C) quantifies these viscoelastic responses through two primary testing routines:
- Stress Relaxation (Method 1: Fixed Displacement): Evaluates how sealing force decay (F(t) / F₀) occurs over time while maintaining a fixed compression height.
- Creep (Method 2: Constant Load): Evaluates how continuous compressive strain accumulates over time while maintaining a fixed mechanical load.
Viscoelastic Sealing Mechanics & Interconversion
Rubber materials exhibit time- and temperature-dependent viscoelastic behavior. When compressed inside a flange at sub-ambient temperatures (-50 °C to 0 °C), internal polymer chains rearrange, causing initial elastic sealing force to decay into relaxed viscous equilibrium:
Sealing Force Decay Ratio: R(t) = F(t) / F₀
Creep Compliance: D(t) = ε(t) / σ₀
Viscoelastic Interconversion & TTS Master Curves
Linear viscoelastic theory connects stress relaxation modulus E(t) with creep compliance D(t). If short-term stress relaxation data is captured across multiple sub-zero steps (-50 °C to 0 °C) using the machine's BTC temperature control system (±2.0 °C accuracy, ±1.0% FS uniformity), Time-Temperature Superposition (TTS) shifts these curves along a log-time axis to construct a multi-year sealing service master curve.
METHOD 1: STRESS RELAXATION (Fixed Clamp Height)
Applied Displacement (0-30mm) ──> | Locked Height (ε₀)
|___________________ Time (t)
Measured Sealing Force (0-10kN)──>| \
| \___ Force Decay F(t)/F₀
|______\____________ Time (t)
METHOD 2: CREEP (Constant Compressive Load)
Applied Load (0-10kN) ───────────>| Constant Force (σ₀)
|___________________ Time (t)
Measured Deformation (0.01mm) ──> | /--- Strain Accumulation
|_______/-----______ Time (t)
Primary Test Execution Methods
The Qualitest Low Temperature Stress Relaxation Tester – Creep Tester automates two standard test modes via its integrated PLC control system and HMI touch interface:
Method 1: Compression Stress Relaxation (Fixed Displacement)
- Pre-Compression: The drive system compresses the elastomer sample (thickness T = 1.0 mm to 5.0 mm) to a set strain height (0.001 mm to 30.000 mm stroke) at a controlled rate of 1.0 mm/min.
- Thermal Stabilization: The chamber maintains sub-zero temperature (-50 °C to 0 °C) using a cascade two-stage refrigeration system and PID + SSR control.
- Force Tracking: High-precision load cells (10kN load capacity, ±0.5% accuracy) continuously capture counter-sealing force decay over time, generating relaxation curves without chamber disturbance through a 5-layer vacuum heated glass window.
Method 2: Compression Creep (Constant Load)
- Load Application: The drive system applies a sustained compressive load (up to 10kN) onto the test specimen at target temperature.
- Deformation Tracking: A magnetic scale sensing system (0.01 mm displacement resolution) monitors progressive height loss over time, logging creep strain curves directly into automated reporting software.
Sub-Zero Physical Phenomena in Elastomers
Testing inside sub-ambient temperature windows (-50 °C to 0 °C) isolates key physical mechanisms affecting seal longevity:
| Physical Mechanism | Impact on Sealing Performance | Test Method & Parameter |
|---|
| Glass Transition (Tg) Stiffening | Polymer chains freeze into rigid states, causing rapid drop-off in elasticity. | Method 1: Peak force decay rate shift |
| Thermal Contraction Stress | Volumetric shrinkage drops physical contact pressure against flange walls. | Method 1 & 2: Combined thermal and load tracking |
| Physical Crystallization | Slow molecular alignment at steady cold temperatures accelerates stress decay over extended exposure. | Method 1: Long-term force retention R(t) |
| Compression Set Accumulation | Unrecoverable viscous flow leads to permanent seal flattening after load removal. | Method 2: Residual height deformation |
Accelerated Sealing Life Prediction
Conventional multi-year field testing of elastomeric gaskets is impractical for fast product release. Short-term Compression Stress Relaxation (CSR) runs performed under controlled sub-zero steps generate stress-versus-strain-rate datasets across a single 24-hour cycle:
- Single-Specimen Multi-Temperature Runs: Sequential short relaxation steps across temperature steps eliminate specimen-to-specimen variance.
- Regression Calibration: Smooth mathematical regression applied to raw force decay curves prevents numerical differentiation noise when deriving equivalent creep rates.
Relevant International Testing Standards
The Qualitest Low Temperature Stress Relaxation Tester – Creep Tester (-50°C~0°C) complies with international standards for rubber, seal, and polymer testing:
- ISO 3384-1 / ISO 3384-2: Rubber, vulcanized or thermoplastic – Determination of stress relaxation in compression (Method A: ambient/sub-ambient application; Method B: counter-force verification).
- ASTM D6147: Standard Test Method for Vulcanized Rubber and Thermoplastic Elastomer – Determination of Force Decay (Stress Relaxation) in Compression.
- ISO 6914: Rubber, vulcanized – Determination of stress relaxation in tension.
- ASTM D2990 / ISO 899-1: Standard Test Methods for Tensile, Compressive, and Flexural Creep of Plastics.
- ISO 2921 / ASTM D1329: Rubber property – Low-temperature retraction testing (TR test).
