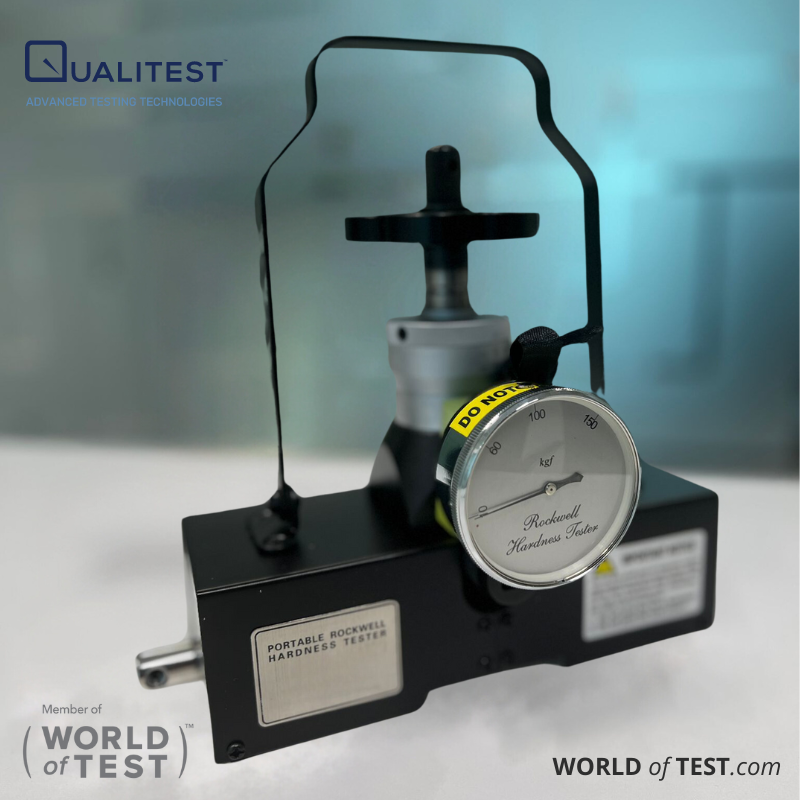

Magnetic Rockwell Hardness Tester - QualiMag-R

Magnetic Rockwell Hardness Tester - QualiMag™ R
Parent Product
QualiMag™ Series Magnetic Type Portable Hardness Testers

Magnetic Rockwell Hardness Tester - QualiMag™ R apply in on-site quick test body hardness of steel parts Test steel plate, steel pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available.

Magnetic Rockwell Hardness Tester - QualiMag™ R Overview

Magnetic Rockwell Hardness Tester - QualiMag-R

Fix Rockwell test head to the surface of iron and steel parts to test the hardness by applying magnetic force. Follow Rockwell hardness test method completely and the test condition complies with standard of ISO 6508 and ASTM E18.

Apply in on-site quick test body hardness of steel parts Test steel plate, steel pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available. Test hardness of weld joint in boiler, pressure vessels, and pressure pipes. Replace low accurate and reliable Leeb hardness testers.

Apply in on-site quick test body hardness of steel parts Test steel plate, steel pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available. Test hardness of weld joint in boiler, pressure vessels, and pressure pipes. Replace low accurate and reliable Leeb hardness testers.

Magnetic Rockwell Hardness Tester - QualiMag™ R Technical Specifications:

Preliminary test force

10Kg

Total test force

60Kg, 100Kg, 150Kg

Test head

120°diamond cone indenter (uncertified), 1.588mm hard alloy ball

Indication Error

complying with ISO 6508 and ASTM E18

Repeatability Error

complying with ISO 6508 and ASTM E18

Test Resolution

0.5HR

Weight

4.7Kg

Surface

Flat:  Area≥180mm×60mm, Thickness≥5mm

Cylinder:  Diameter≥60mm, Lenghth≥200mm, Thickness≥8mm

Standard assembly

  • Tester
  • 120°diamond cone indenter (uncertified)
  • 1.588mm hard alloy ball indenter (uncertified)
  • Rockwell hardness block
  • Adapter
  • Microscope with light
  • Carrying case

Optional accessories

  • 1.588mm hard alloy ball indenter
  • Rockwell hardness block (HRB, HRC high value, HRC middle value, HRC low value)
  • Microscope with light
  • Special Adapter (customized by required size)
