A scaffold tie or safety harness anchor can look secure and still fail under load if nobody proof-tested it. On a Saudi job site racing a giga-project deadline, that gap between "installed" and "verified" is exactly where accidents happen.
Qualitest supplies an anchor bond strength pull tester in Saudi Arabia built to close that gap. It gives site engineers a fast, repeatable way to confirm every safety-critical fixing before it carries real load.
Why Fixing Verification Matters on Saudi Arabia's Giga-Projects
The Kingdom's construction pipeline is enormous. Industry trackers put active Vision 2030 project value near $1.6 trillion. Roughly $342 billion of that is under construction in 2026 alone, spread across NEOM, the Red Sea Project, Qiddiya, and Diriyah Gate.
That volume of concrete and steel means a matching volume of drilled, resin, and mechanical anchors going into base plates, facades, and safety systems every week.
The Ministry of Human Resources and Social Development's Decision No. 4780 specifically governs scaffolding and working-at-height safety on Saudi sites. The Saudi Standards Metrology and Quality Organization plays a direct role in scaffolding requirements as well.
On projects like Jeddah Tower and NEOM's steel-intensive builds, automated fall-arrest blocks and double-lanyard systems are now standard protocol. Every anchor point behind them needs documented proof-load data before a worker clips in.
Riyadh's skyline projects and King Salman International Airport add further pressure, pulling curtain wall, cladding, and signage anchors into the same testing queue as scaffolding and fall-protection points. Contractors juggling several giga-projects at once cannot afford a fixing failure that halts a schedule measured in months, not years.
Choosing an Anchor Bond Strength Pull Tester in Saudi Arabia
International consultants on Saudi giga-projects typically specify testing regimes drawn from British and Australian anchor codes, since these dominate site-testing guidance worldwide. Qualitest's QualiAnchor and QualiScaffold ranges are built around exactly those frameworks.
Selecting the right anchor bond strength pull tester in Saudi Arabia starts with matching the fixing type to the correct testing standard, not just the load capacity:
| Standard | Scope |
|---|
| BS 8539 | Selection, installation, and site testing of post-installed anchors in concrete and masonry |
| BS 7883:2019 / BS EN 795:2012 | Personal fall-protection anchor devices and eye bolt systems |
| AEFAC-TN05 | Site testing guidelines for post-installed anchors, aligned with BS 8539 and CFA practice |
| NASC TG4:19 / TG20:21 | Anchorage systems for scaffold ties |
These are not Saudi national standards. They do form the reference framework most EPC contractors and independent testing labs working in the Kingdom already specify, particularly on projects with UK- or Australia-trained design consultants.
For contractors bidding into Aramco-affiliated projects or NEOM's own vendor programs, a calibrated test report against a named standard often matters as much as the pass result itself. A tester with no traceable calibration record can leave a QA file incomplete at handover.
Matching Tester Capacity to the Fixing
Not every fixing sees the same pull-out load. A safety harness eye bolt and a resin anchor holding a crash barrier carry very different forces, so Qualitest offers four capacity tiers on one testing platform.

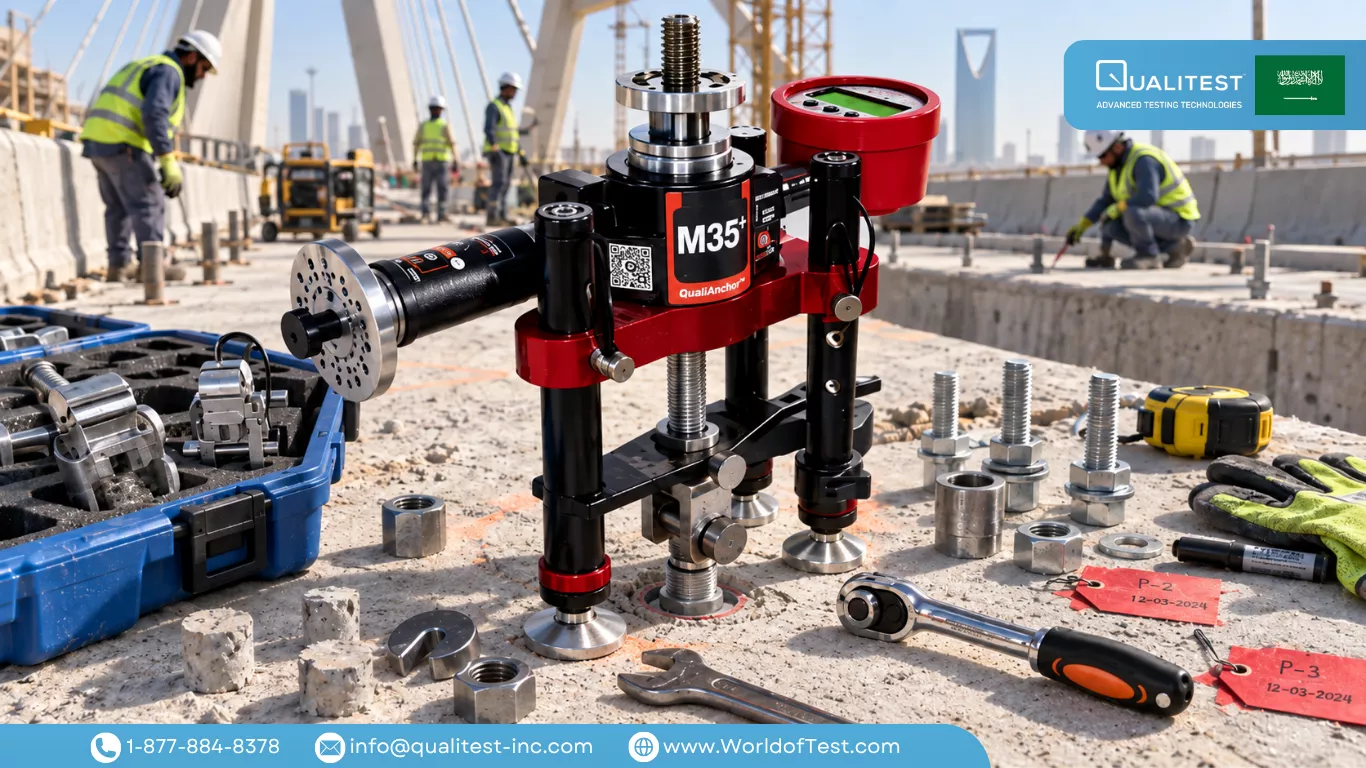

Each kit uses a dual-scale digital gauge with a detachable head for calibration, plus a load-spreading bridge that isolates the fixing from surrounding reaction loads for a cleaner reading.
Contractors standardizing on one testing platform across capacity tiers also cut training time. The gauge, companion App, and calibration workflow stay the same from the 25kN scaffold kit up to the 145kN heavy-duty unit. Crews move between fixing types without learning a new tool each time.
Where These Testers Earn Their Keep on Site
Saudi contractors run these testers across a wide range of fixing types, not only concrete anchors:
- Scaffold ring bolts and tie fixings on multi-story tower cladding and access scaffolds
- Safety harness eye bolts for fall-arrest anchor points on high-rise and steel erection work
- Base plate and column lighting fixings on stadium, transport, and utility infrastructure
- Crash barrier and bridge parapet anchors on the Kingdom's expanding highway network
- Rebar pull-out verification on structural concrete, using the optional rebar adaptor set
Coastal humidity along the Red Sea corridor and the extreme summer heat inland both accelerate corrosion checks on older fixings. That is why remedial wall-tie testing on existing buildings has become a recurring line item alongside new-build scaffolding work.
Every kit ships with a 12-month gauge calibration certificate, which matters when contractors document compliance for Aramco, NEOM, or an independent third-party inspector. Explore the full anchor tester and bond strength pull tester range to compare kits side by side.
Equip Your Team for Confident Anchor Verification
Saudi Arabia's construction timelines leave little room for rework, and a failed fixing discovered after handover costs far more than one caught during installation. A pull tester matched to your fixing type turns that risk into a documented pass or fail on site.
Qualitest FZE is our GCC and Middle East regional office, based in Jebel Ali Free Zone, Dubai. The team supports Saudi contractors with guidance on selecting the right capacity tier and adaptor kit for a given project scope.
Contact Qualitest to discuss your anchor testing requirements and request a quotation for your next Saudi Arabia project.
