A consignment of rebar leaves Alexandria bound for a regional reconstruction contract. The consultant receiving it wants tensile certificates traceable to a recognized method. A rejected shipment costs far more than the test itself.

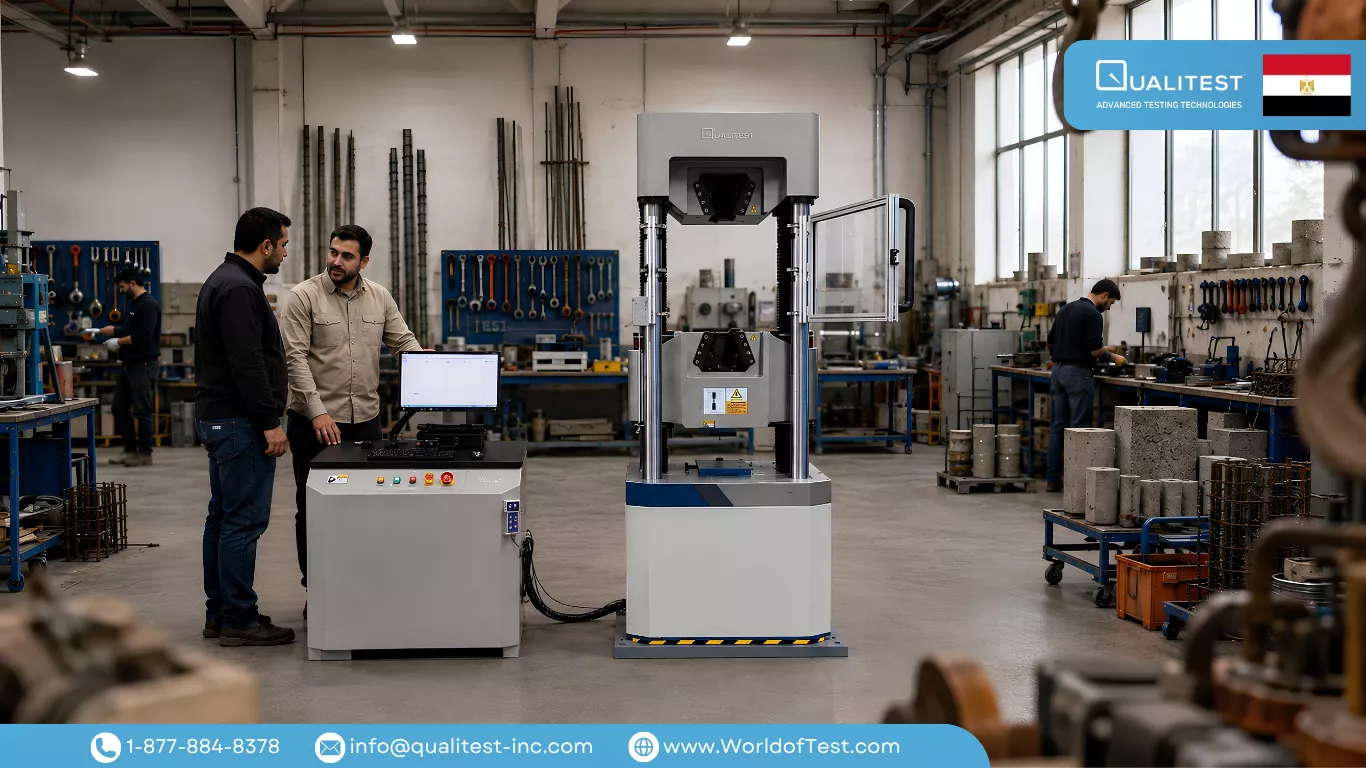

A universal testing machine in Egypt puts that certificate inside your own laboratory. Qualitest supplies tensile and compression testing systems from 300 N benchtop frames up to 3000 kN hydraulic load frames.
Egypt Supplies the Region's Rebuilding
Egypt produces roughly 10 million tonnes of crude steel a year, the largest output on the African continent. Rebar and wire rod account for a substantial share of that volume.
Installed cement capacity also sits well above domestic demand. As a result, Egyptian producers look outward, and construction materials move steadily toward North African and Levantine markets rebuilding after conflict and disaster.
Domestic demand has not slowed either. The New Administrative Capital, the national road program, and industrial plots inside the Suez Canal Economic Zone keep steel, precast, and cable plants running.
Both streams share one requirement. Whoever buys the material wants mechanical test data attached to it.
Outsourcing that work slows a production schedule. An in-house frame returns yield and tensile figures the same shift, which keeps releases moving and shortens the gap between rolling and dispatch.
Testing Obligations Sit at Several Points in the Chain
Responsibility for tensile data does not rest with one party. Different operations need different frame capacities, as the table shows.
| Who Tests | Typical Specimens | Frame Capacity |
|---|
| Mill and rolling plant labs | Rebar, wire rod, hot rolled sections | 600 to 3000 kN |
| Contractor site labs | Rebar coupons, mesh, couplers | 600 to 1000 kN |
| Third party accredited labs | Mixed metals, fasteners, composites | 50 to 600 kN |
| Cable and precast plants | Strand, wire, polymer compounds | 0.1 to 50 kN |
| Packaging and pipe converters | Film, tape, extruded coupons | 0.3 to 20 kN |
A mill laboratory and a cable plant both run tensile tests, yet they need different machines. Buying one frame to cover both ends of that range usually satisfies neither.
Engineering faculties and research centers add a further group of buyers. Their work leans toward programmable control and data capture rather than the throughput a production laboratory needs.
Matching a Universal Testing Machine in Egypt to Each Duty
Heavy structural work sets the top of the range. The QT-HW2 hydraulic frames handle rebar, wire strand, mesh, tubes, plates, and fasteners at capacities from 600 kN to 2000 kN.
Their dual space design lets an operator move between tension and compression without stripping heavy fixtures off the machine. For metallurgy and large structural sections, the 3000 kN hydraulic system extends that range further.
Routine quality control on metals and composites usually sits lower. The QM-Series frames span 20 kN to 600 kN, with D2 controllers for pass and fail checks, M1F for laboratory reporting, and M2F for cyclic and research work.
Polymer, cable, and packaging laboratories work lower still. The QE-Series single column machines cover tension, compression, flexure, shear, tear, and peel below 10 kN, while the QTens-Series suits film, paper, and tape at 300 N to 1500 N.
Capacity alone will not finish the job. Confirm that jaw sets cover your full bar diameter and plate thickness, and that clip-on or long stroke extensometers suit the gauge lengths your method specifies.
Documentation That Travels With the Shipment
Egyptian standards come from the Egyptian Organization for Standardization and Quality, and GOEIC handles inspection on goods crossing the border. Meanwhile, EGAC accredits laboratories to ISO/IEC 17025, and the Housing and Building National Research Center anchors building materials research.
Your buyer, however, may cite an international method instead of a national one. Machine capability therefore has to align with the standard named in the contract rather than the one nearest to hand.
Load measurement accuracy on the QT-HW2 frames meets ISO 7500-1, ASTM E4, EN 10002-2, and JIS B7721, and the series is built to the requirements of ASTM E8. Strain measurement meets ASTM E83 and ISO 9513.
Auditors tend to examine records before they examine machines. Organized paperwork therefore protects a contract as effectively as an accurate load cell does.
Keep the supporting documentation in order from day one:
- Calibration certificate: file it with the machine and schedule the next verification immediately
- Load cell traceability: buyers auditing a mill lab will ask for it
- Report templates: configure software output to match the fields your client expects
- Operator records: document who ran each test and under which method
Specify Your Frame Around the Standard Your Client Cites
Egyptian producers rarely choose which method a foreign buyer names. A frame that satisfies one consultant's specification and fails another's wastes capital that a growing export book cannot spare.
Qualitest serves Egypt through its regional office in Jebel Ali Free Zone. Our engineers match grips, extensometers, fixtures, and software reporting to the exact method your contracts reference, then arrange installation and operator training.
Configuration questions surface early in an export program, and they are cheaper to answer before purchase than after installation.
Tell us which standards your buyers cite and what specimens you run daily. Reach Qualitest FZE at +971 488 19252 or uae@qualitest-inc.com, or contact Qualitest to request a quotation.
