A mill certificate says 316L. The spool sitting on your receiving dock might be 304. If that mismatch reaches a chemical service line, the failure investigation will cost far more than the material ever did.
Elemental verification closes that gap in seconds. An XRF analyzer in the USA now works in scrap yards, refinery turnarounds, receiving docks, and compliance labs, because American regulators and customers want numbers rather than assurances.
What Drives U.S. Demand for Elemental Analysis
Four sectors account for most XRF purchases across the American market. Each one runs against a hard number that somebody has to measure.
- Recycled steel: electric arc furnaces produce roughly 70 percent of U.S. steel, and the Steel Manufacturers Association expects that share to reach 90 percent by 2040. Melt chemistry starts with correct scrap sorting.
- Refining and fuel distribution: federal sulfur limits apply from the refinery gate through the terminal rack.
- Consumer goods importers: lead and restricted substances trigger recalls, penalties, and lost retail accounts.
- Environmental consulting: soil screening on brownfield and remediation projects follows EPA Method 6200.
Mills tracked by the American Iron and Steel Institute produced more than 89.3 million tons of raw steel in 2025. Scrap feeds most of it, so grade separation carries real margin.
Positive Material Identification for Fabrication and Refining
PMI programs in U.S. plants trace back to API RP 578, the recommended practice for material verification in piping systems. ASTM E1476 covers the general practice for metal identification and analysis.

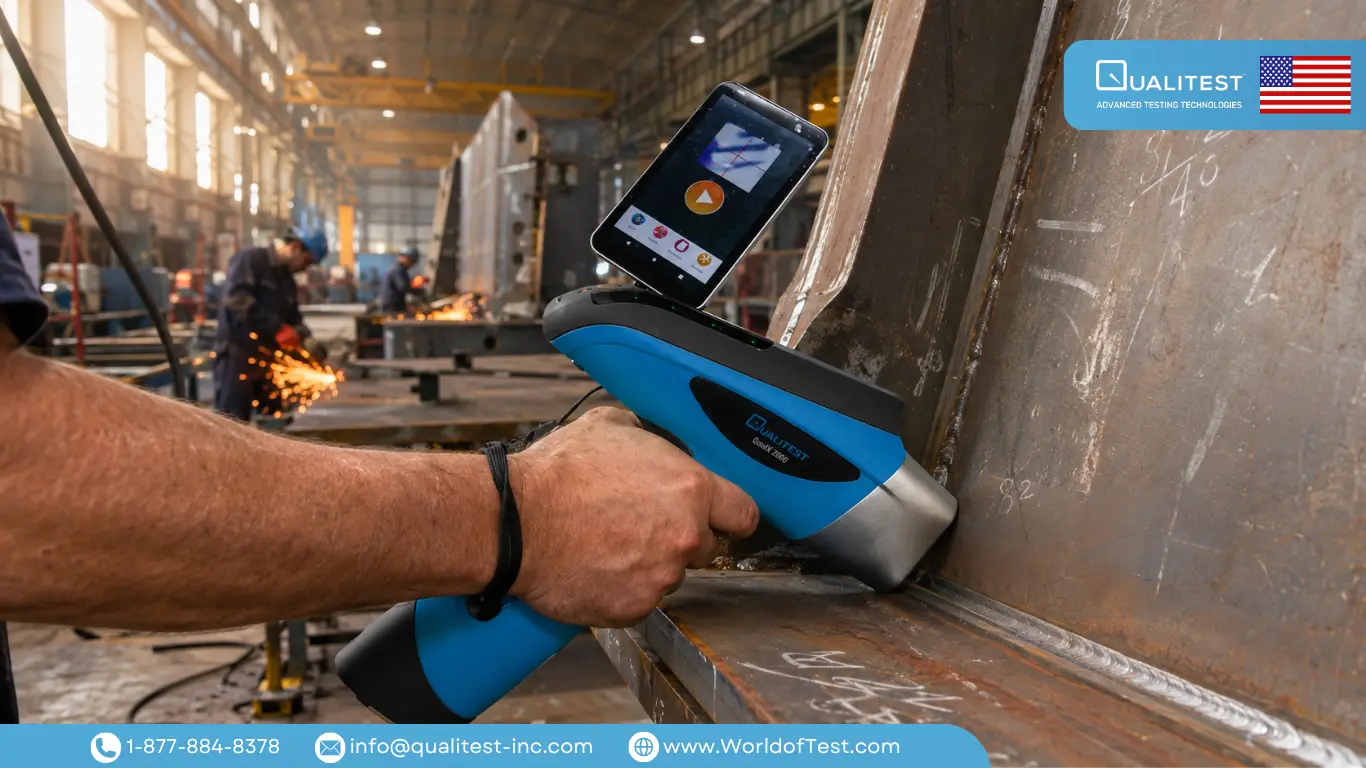

The handheld XRF analyzer from Qualitest reads magnesium through uranium and returns a grade call in one to sixty seconds. It weighs under 2 kg, so inspectors can carry it up a rack or into a pipe trench.
Alloy verification matters most at three points: incoming material acceptance, weld filler confirmation, and post-turnaround reinstallation checks. GPS tagging on each reading builds a defensible record for the audit file.
Silicon drift detectors resolve closely spaced peaks in complex alloy matrices. Fundamental parameters calibration then converts raw counts into concentrations without a matching reference standard on hand.
Meeting U.S. Fuel Sulfur Limits
American fuel specifications leave little measurement headroom. Refiners, terminals, and independent labs test constantly because the tolerances are tight and the penalties are not small.
| U.S. Requirement | Sulfur Limit |
|---|
| Gasoline, annual average at refinery gate (Tier 3) | 10 ppm |
| Gasoline, per batch at refinery gate | 80 ppm |
| Gasoline, downstream of the refinery | 95 ppm |
| On-road diesel (ULSD) | 15 ppm |
The sulfur in oil analyzer QualiX SU-II measures sulfur and chlorine from 1 ppm to 20 percent. Qualitest builds it for ASTM D7039, ASTM D4294, ASTM D6445, and ASTM D2262, plus ISO 8754, ISO 20847, IP 336, and IP 531.
Its vacuum system needs no helium, which removes a recurring consumable cost. The unit fits in a truck as easily as a lab bench, so terminal operators can test where the product moves.
Repeatability data published for the instrument shows a standard deviation near 0.6 ppm at the 5 ppm and 10 ppm levels, which suits work close to federal limits.
Screening for Lead and Restricted Substances
Under the CPSIA, children's products in the United States must stay below 100 ppm total lead in substrate materials and 90 ppm in surface coatings. The Consumer Product Safety Commission relies on XRF and ICP-OES for its own lead measurements.
Treat XRF as a screening tool here, not a certification method. A children's product certificate still requires testing at a CPSC-accepted laboratory. Screening simply catches problem components before they reach that stage.
The benchtop RoHS analyzer and EDX spectrometer QualiRoHS 1800E detects sulfur through uranium down to 2 ppm. It covers eight regulated heavy metals, including lead, cadmium, mercury, chromium, arsenic, antimony, barium, and bromine.
For line-side checks, the handheld QualiX 2000R screens restricted substances following IEC 62321-3-1, the accepted XRF method for rapid pass or fail decisions on incoming components.
Choosing the Right XRF Analyzer in the USA
Buyers usually start by asking which instrument suits their throughput. The honest answer depends on sample type, testing location, and how tight the reporting limit has to be.
- Alloy sorting and PMI: handheld units win on speed and reach, especially across a scrap pile or an operating unit.
- Ore, soil, and site screening: handheld models with GPS support field mapping and EPA Method 6200 workflows.
- Restricted substances and coating thickness: benchtop EDXRF gives better counting statistics and repeatability.
- Petroleum sulfur: a dedicated sulfur analyzer beats a general purpose instrument at low ppm levels.
- Trace elements in complex matrices: wavelength dispersive systems deliver the sharpest resolution.
Review the full XRF spectrometer and metal analyzer range before committing to a configuration, since collimator sizes and detector choices vary by model.
Talk Through Your Application With Qualitest North America
Specifying an XRF analyzer in the USA gets easier once you define the elements you actually report on. A scrap yard chasing tramp copper and a toy importer chasing 100 ppm lead need very different instruments, even though both technologies share the same physics.
Qualitest supports American customers directly from Florida, with application guidance, calibration support, and configuration advice before the purchase order rather than after it.
Call 1 877 884 TEST (8378), email info@qualitest-inc.com, or contact Qualitest to discuss detection limits, sample types, and the standards your program reports against. Our office at 1323 SE 17th St., #200, Ft. Lauderdale, FL 33316 handles U.S. inquiries.
