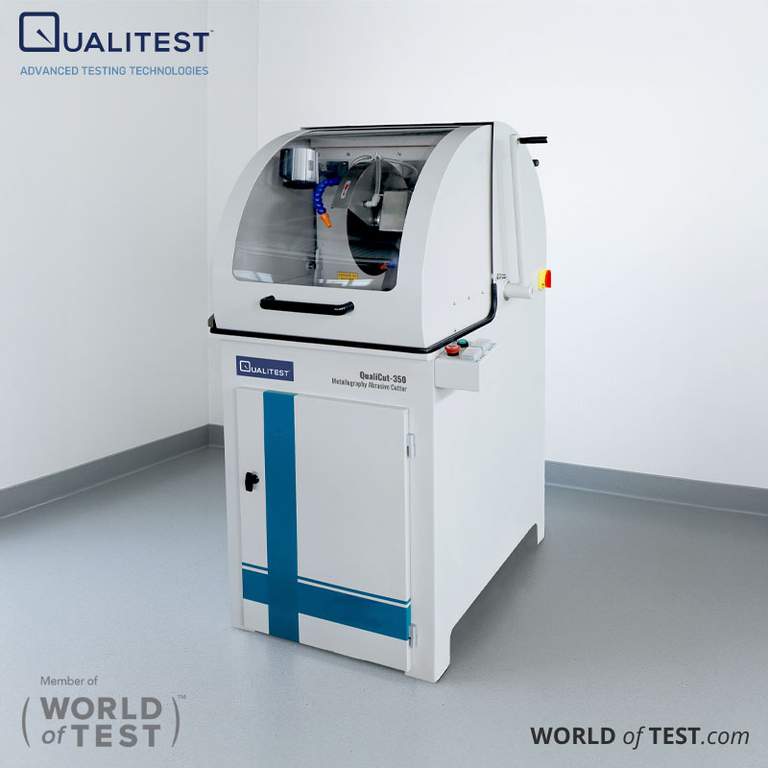

Metallography Abrasive Cutting Machine – QualiCut™ 350

Metallography Abrasive Cutting Machine – QualiCut™ 350 is built to meet European health and safety standards. This machine series includes a control panel, cutting system, lighting, cooling, and cleaning systems. Its advanced cooling system helps protect the workpiece during cutting. The machine features a high-quality switch and prioritizes operator safety.

The QualiCut™ 350 manual cutting model features a well-designed pull bar that allows for smooth cutting of large workpieces. Comparable to PRESI, it also supports extended work operations.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Metallography Abrasive Cutting Machine – QualiCut™ 350 Technical Specifications

ModelQualiCut™ 350
Input voltage380V 50HZ
Spindle speed2300RPM
Cutting axisOnly manual Z axis
Z axis movement190mm
Cut-off wheelΦ350mm × 2.5mm × 32mm
Cutting capacity (Max)Φ110mm
Input power4.4KW
Cutting motor4KW
Table Dimension400 × 320 × 46mm (cast iron material)
Dimension750mm × 1050mm × 1660mm
Net weight400kg
Pump & tank100L
Coolant flow rate100L/min
Hole size for long sample (two sides)300 × 100mm
Optional accessoriesTransversal worktable (X axis), Max. movement is 68mm / Manual type Schneider safety lock
