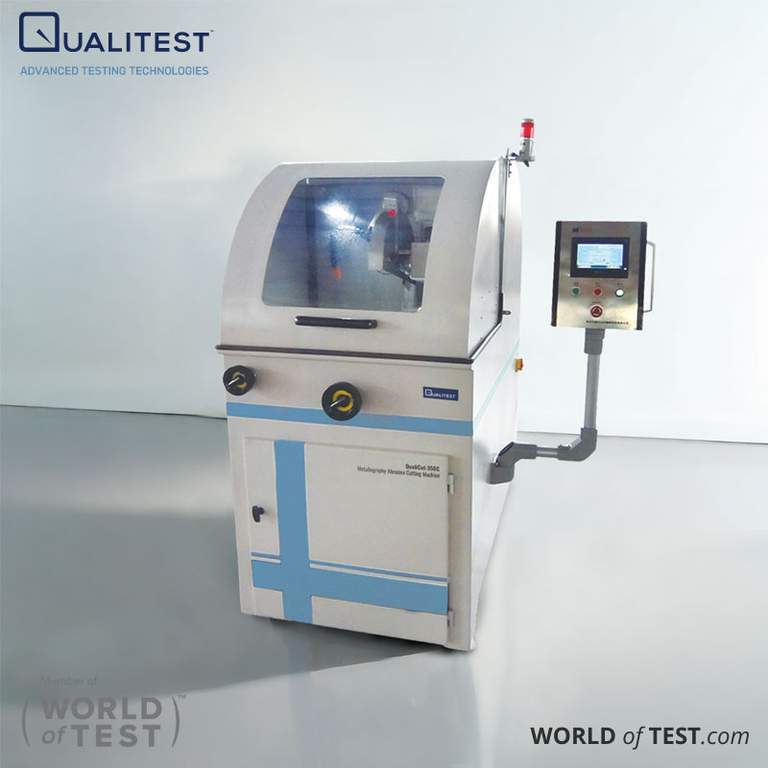

Metallography Abrasive Cutting Machine – QualiCut™ 350C

Metallography Abrasive Cutting Machine – QualiCut™ 350C designed for high-precision sectioning of a wide range of metal and non-metal materials. Built with a reliable Siemens PLC system, it offers strong control performance and features a user-friendly touchscreen interface and a high-precision stepper motor.

This machine enables accurate cutting for metallographic and core structure analysis, making it an essential tool for laboratory use.

Enhanced from the QualiCut™ 350A, this model includes manual X-axis movement, laser tool positioning, and a demisting function for improved usability and precision.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Metallography Abrasive Cutting Machine – QualiCut™ 350C Technical Specifications

ModelQualiCut™ 350C
Cutting modeChop-cutting, automatic type push cutting, manual type
Spindle speed2300RPM
Maximum movement distance in X axis70mm
Maximum movement distance in Y axis240mm
Maximum movement distance in Z axis150mm
Feed speed in Y axis0.03-0.5mm/s
Feed speed in Z axis0.03-0.5mm/s
Cutting capacity (Max)Φ110mm
Cut-off wheelΦ350×2.5×32mm
Cutting motor4KW
Cutting table470×240mm (left-right × forward-back)
Input voltage380V 50HZ
Dimension1710mm × 1420mm × 1810mm
Net weight500kg
Pump & tank100L
Coolant flow rate100L/min
Transversal worktable (X axis)Manual movement
Laser tool settingYES
OptionalMagnetic separator
