Core Physics & Structural Shock Dynamics
Micro drop testing evaluates how lightweight portable electronics, including smartphones, tablets, e-readers, electronic dictionaries, walkie-talkies, chargers, and battery modules, resist structural damage from repeated low-height desk drops. The underlying theory treats the device and its internal printed circuit board assembly (PCBA) as a single-degree-of-freedom (SDOF) dynamic system with mass, spring, and dampening properties.
[ Specimen / Circuit Board Assembly ]
│ (Panasonic Servo Height Control: 10 to 300 mm)
▼
┌───────────────────────────┐
│ Hard Impact Surface │ ◄─── Pulse Adjuster (Polyurethane, Hard Steel, or Oak)
└───────────────────────────┘
│
▼
[ Clean Half-Sine Shock Wave ] ──► Instant Deceleration: 10,000 to 100,000+ Peak Gs
Deceleration & Flexural Curvature
When dropped from minimal heights between 10 mm and 300 mm, the specimen experiences sudden deceleration upon contacting a rigid landing plate, generating transient forces from tens of thousands to hundreds of thousands of g's. Second-order differential equations model the dynamic motion, while partial differential equations evaluate board flexure upon contact:
- Natural Frequency Matching: Shock pulse durations must match the fundamental natural frequency of the internal PCBA structure. Extended pulse durations cause excessive, artificial board bending that produces misleading failure results.
- Key Performance Metrics: Maximum flexural curvature (which determines bending stress on solder ball connections) and peak acceleration spikes (which govern chip functionality).
Two-Phase Transient Response
Upon impact, internal components experience two distinct, back-to-back structural stress phases:
- Forced Immediate Bending: The exact millisecond of impact forces the main circuit board to flex and twist severely within its outer shell.
- Post-Impact Damped Vibration: Right after rebounding off the landing surface, the board continues flexing back and forth in a damped resonant pattern, subjecting solder joints to rapid cycle fatigue until kinetic energy dissipates completely.
Guided Free-Fall Pneumatic Methodology

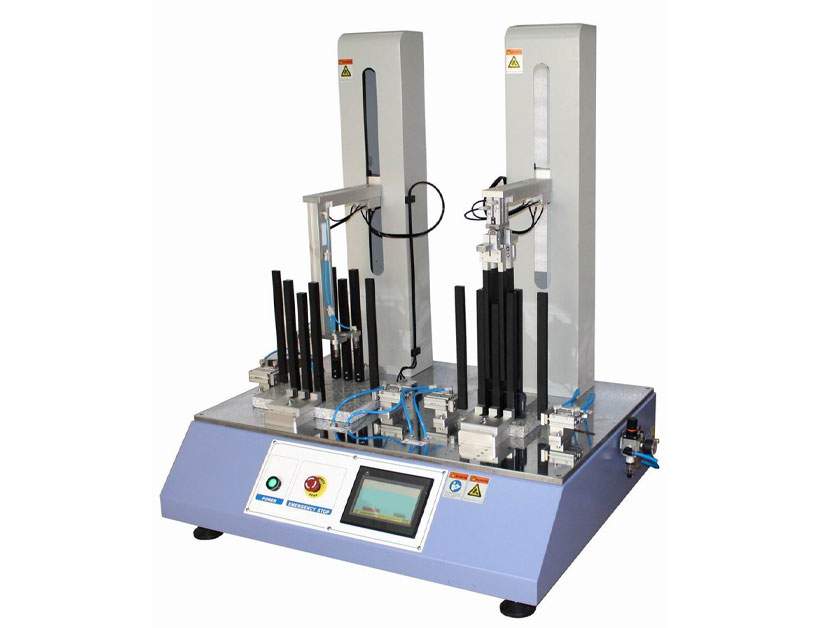

The Qualitest Micro Drop Tester (QMDT Series) executes this methodology using a guided free-fall platform paired with automated pneumatic repositioning.
1. Specimen Clamped (Vacuum / Pneumatic Gripper)
2. Servo Motor Lifts Platform to Target Height (10 to 300 mm)
3. Instant Guided Free-Fall Release onto Selected Impact Substrate
4. SMC Pneumatic Cylinders Instantly Reset Platform (1 to 20 drops/min)
Motion Control & Repeatability
- Panasonic Servo Lifting Motor: Provides continuously adjustable drop clearance from 10 mm to 300 mm with zero positioning drift, ensuring identical potential energy across every drop cycle.
- SMC Pneumatic Cylinders: Precision double-acting return cylinders reset the carriage instantly, enabling automated repetition rates from 1 to 20 drops per minute.

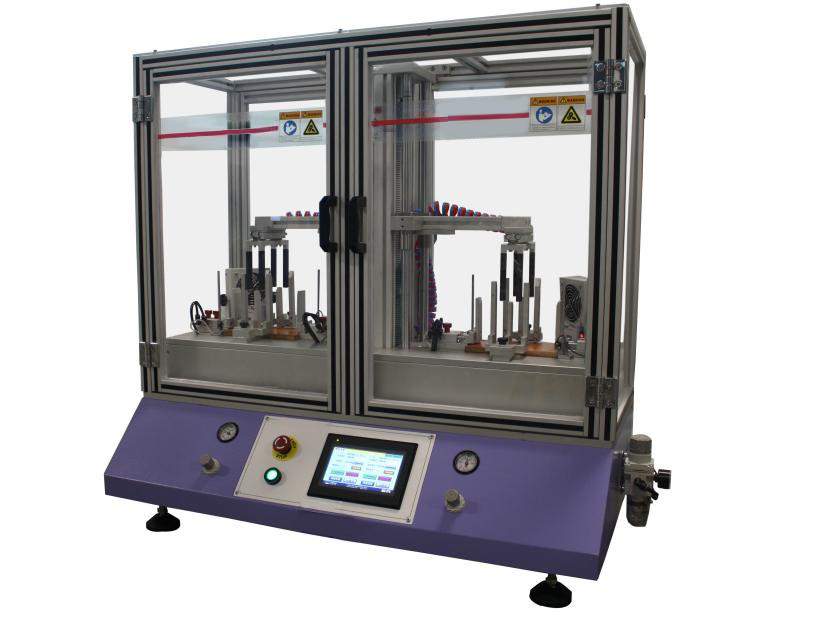

- System Operating Options: The standard QMDT-2D model at 165 kg features an open frame for quick sample swap-outs, while the QMDT-2DC model at 175 kg includes a transparent acrylic safety cover shielding technicians during high-frequency testing on battery packs or hazardous specimens.
Pulse Shaping & Multi-Axis Testing Methods
Generating a precise half-sine shock pulse requires balancing drop height, surface material stiffness, and pulse-shaper thickness.
- Impact Surface Stiffness: Swappable landing plates alter deceleration peak intensity (g). Striking rigid steel or marble creates sharp, high-g stops, whereas hardwood or rubber substrates cushion the impact.
- Pulse Shaper Thickness: Polyurethane shapers control impact duration in milliseconds. Thicker pads extend pulse duration up to 1 ms (lowering peak acceleration to 1,600 g), whereas thin or removed shapers produce sharp 100 µs pulses exceeding 30,000 g.
- Release Height Tuning: Adjusting clearance height via the Mitsubishi PLC controller changes impact velocity without altering pulse duration.
High Modulus / Thin Shaper Low Modulus / Thick Shaper
(High Peak g, Short Duration) (Lower Peak g, Longer Duration)
Acceleration (g) Acceleration (g)
▲ ▲
│ /\ │ /---\
│ / \ │ / \
│ / \ │ / \
└──/______\──► Time (ms) └────/_________\──► Time (ms)
Multi-Axis Specimen Orientation
To evaluate full outer casing and board assembly durability, specimens weighing up to 2 kg are secured using modular fixtures:
- Broad Surface Testing: Dual large-surface vacuum fixtures secure specimens flat to evaluate front and rear faces.
- Narrow Edge Testing: Dual mechanical side clamps lock thin profiles to test four narrow side edges.
- Corner Drop Testing: An optional corner fixture holds specimens at precise angles to evaluate corner impact points.
In-Situ Failure Analysis Methods
Detecting split-second electrical opens that vanish once board flexing stops requires connecting high-speed sensor arrays directly during drop cycles:
- High-G Accelerometers: Mounted directly on the drop platform to capture peak deceleration waveforms.
- Board Strain Gauges: Glued onto the internal PCBA to measure localized flexural strain during impact.
- Continuous Microsecond Resistance Tracking: Passes electrical signals through solder daisy-chains during the drop sequence. Unlike basic post-drop continuity checks, continuous resistance tracking identifies the exact microsecond a solder joint fractures under transient flexure.
- Fatigue Accumulation Modeling: Multi-axis stress algorithms combine real-time sensor data across repeated drops to predict solder joint failure locations accurately.
Standard Compliance & FEA Correlation
The QMDT Series aligns directly with JEDEC Standard JESD22-B111 and JESD22-B110A for board-level drop testing of handheld electronic products. The baseline specification calls for a uniform half-sine shock pulse of 1,500 g over a 0.5 millisecond duration, with extended conditions spanning 900 g to 2,900 g.
Full-width board supports, Panasonic servo height controls, and pneumatic side clamping eliminate edge-constraint variations and positioning errors, providing uniform bending strain across all board test positions.
Physical drop data generated by the QMDT system correlates directly with ANSYS and LS-DYNA numerical simulations. Mapping physical strain gauge readings against finite element models allows engineering teams to identify internal stress risers, evaluate secondary rebound impacts, and refine mechanical designs prior to mass production.
