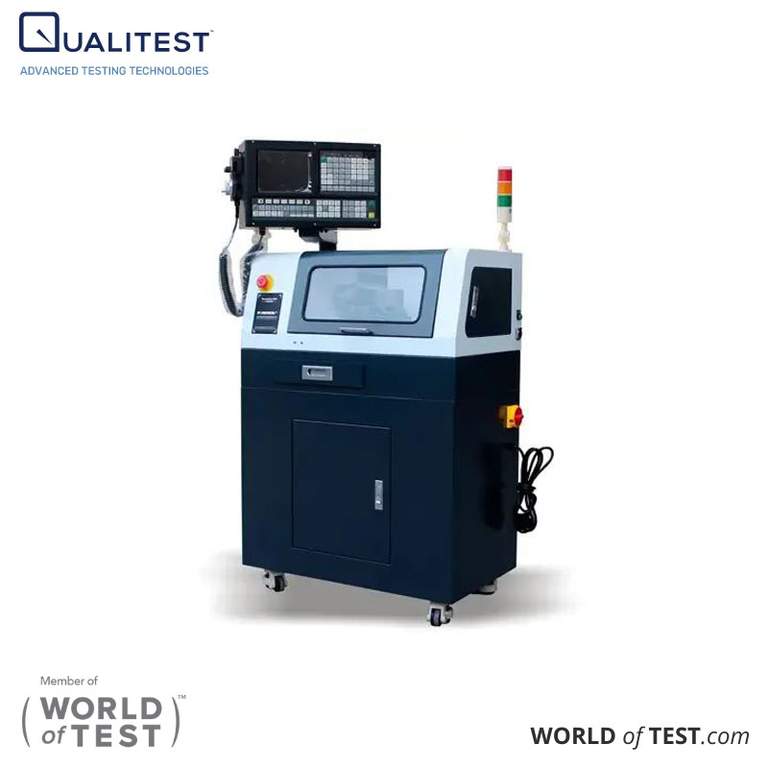

Mini CNC Sample Preparation Lathe – QualiLathe™ 140

Mini CNC Sample Preparation Lathe – QualiLathe™ 140

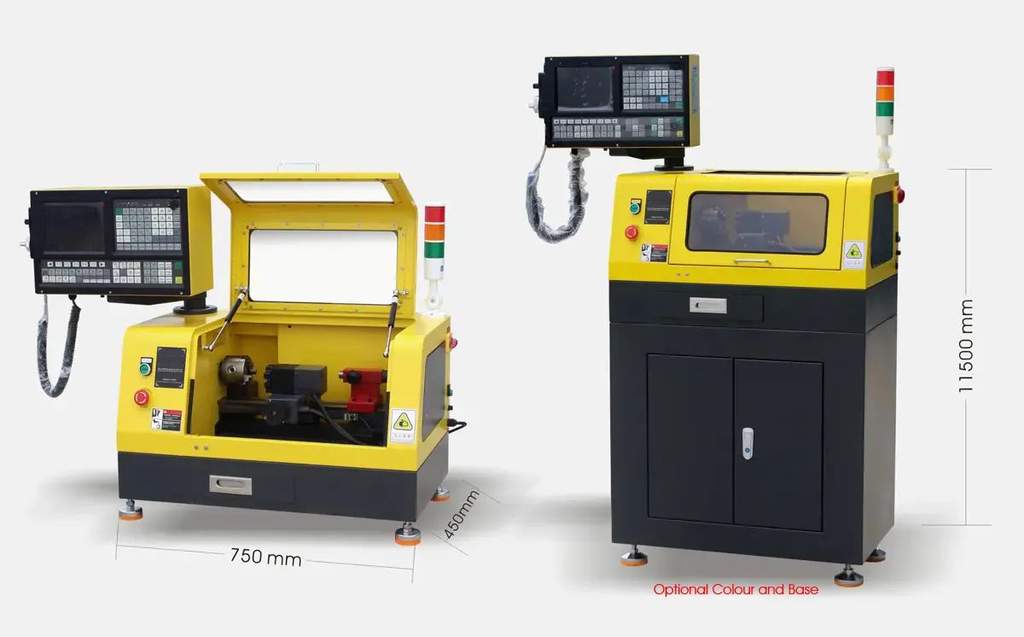

Mini CNC Sample Preparation Lathe – QualiLathe™ 140 is a compact desktop CNC lathe featuring the KY980Tc turning CNC system with a multilingual interface. It comes standard with an MPG handwheel and an automatic 4-position tool post.

Powered by single-phase electricity, it is built with high-quality cast materials and features ball screws and stepper motors for the X and Z axes. Designed with an interlocking guard, it offers multiple functions, including turning inner and outer cylindrical surfaces, end faces, tapers, and threading shafts.

Ideal for working with wax, plastic, acrylic, free-cutting alloys, aluminum, and copper, this lathe is a great option for DIY projects, hobbyists, and CNC education & training.

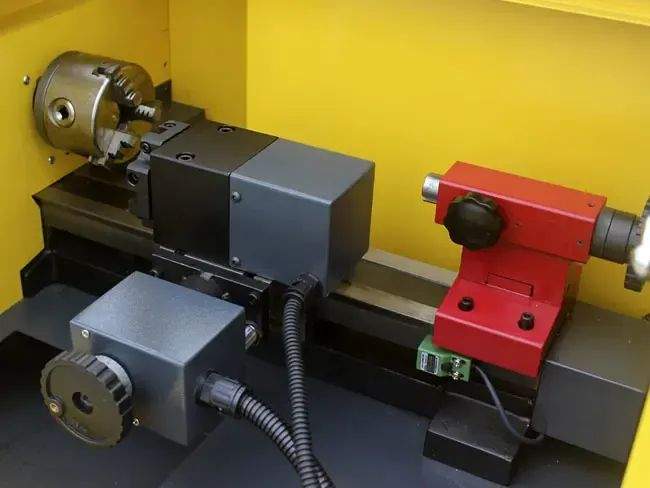

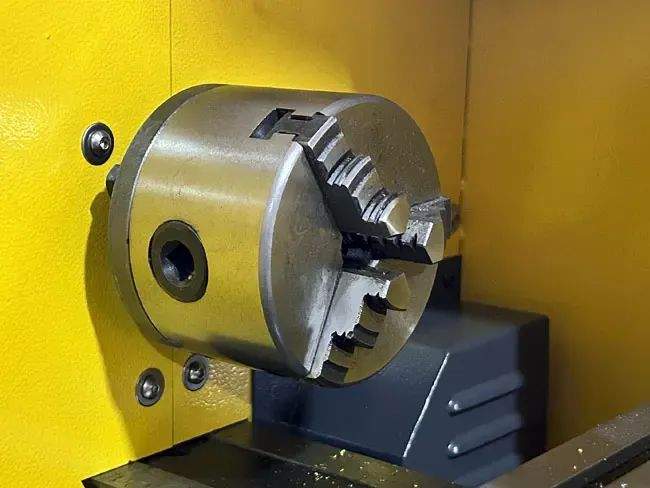

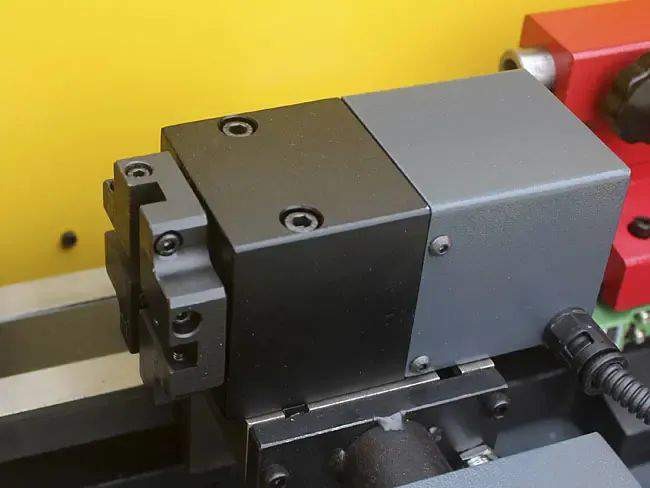

Chuck with three jaws The 80mm self-centering 3-jaw chuck comes with optional 4-jaw chuck or ER32 collet chuck with flange. It features a cast iron spindle box for low-noise operation. With strong rigidity and stability, it enhances machining precision.	Automatic tool change Equipped with a 4-station automatic tool changer, this lathe is designed for processing more complex parts. It supports 8×8mm turning tool specifications for precise and efficient machining.	Machine tool body The machine tool body is made from high-quality cast materials and includes a lathe tailstock. It operates on single-phase power for reliable performance.

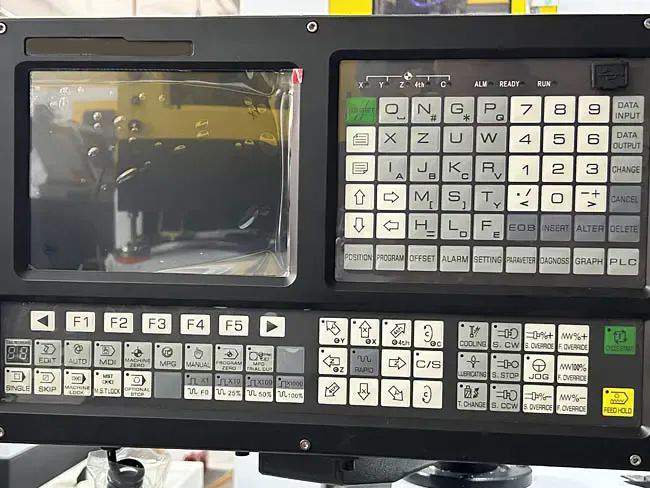

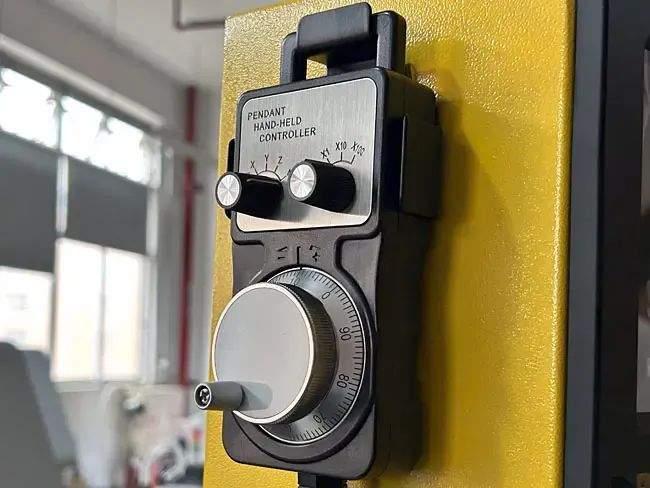

Industrial Lathe CNC system The industrial CNC lathe system offers enhanced stability, durability, and user-friendly operation. Featuring an ARM 9 CPU + FPGA, it supports B macro functions, PLC functions, and a multilingual interface for greater flexibility.	MPG hand wheel Used for setting the mechanical work origin and manually stepping for trimming, it features a band switch to select the axis and magnification for precise adjustments.	Headstock and spindle encoder The headstock is made from high-quality castings and features a high-torque brushless spindle motor. It supports G-code speed control and includes an encoder, making it ideal for turning threads on shafts.

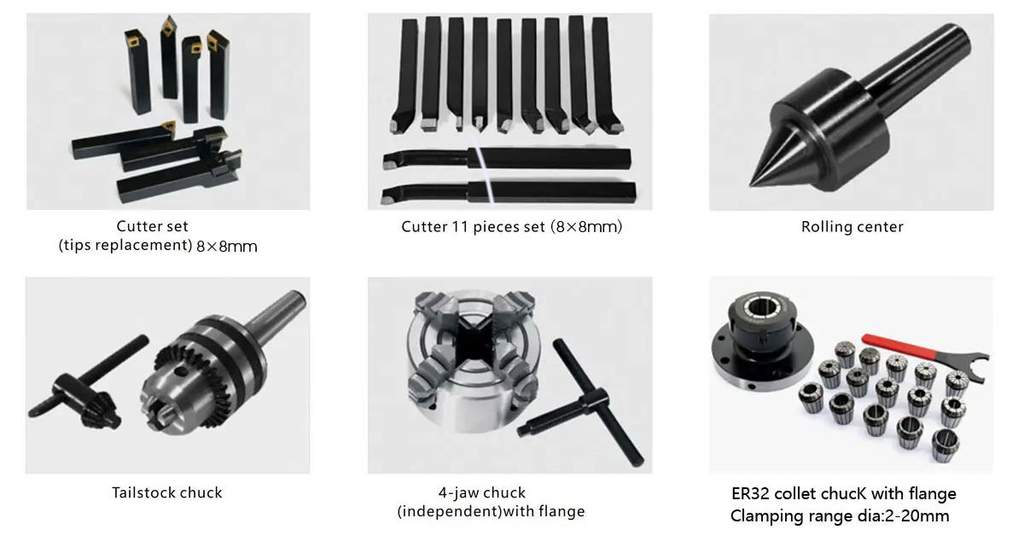

Optional Accessories

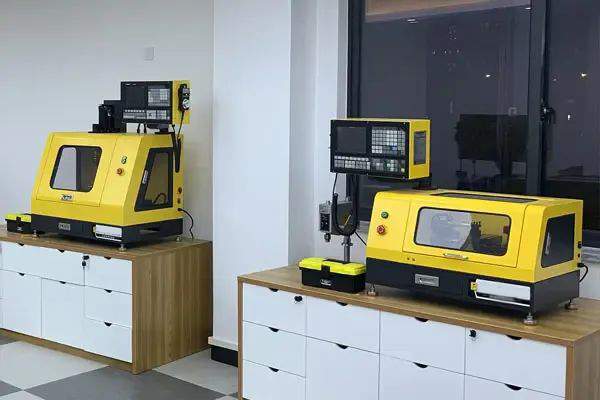

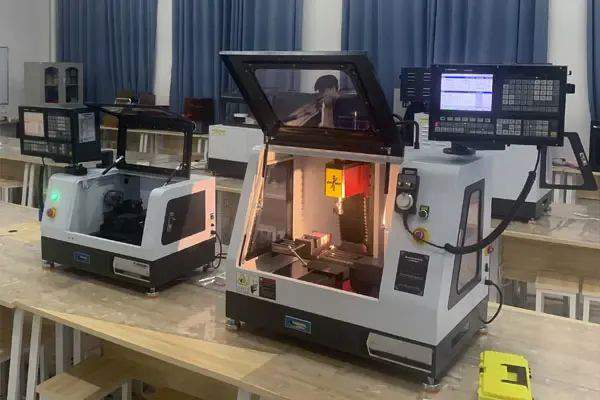

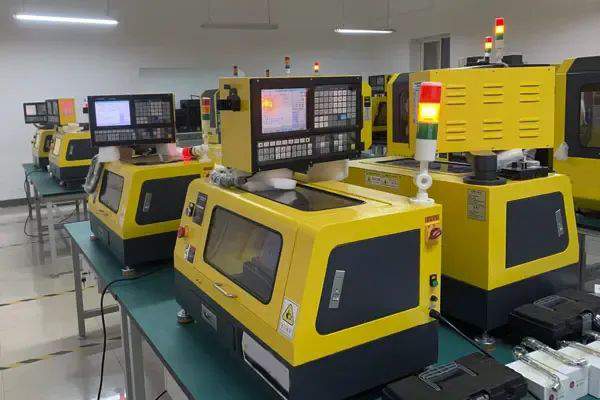

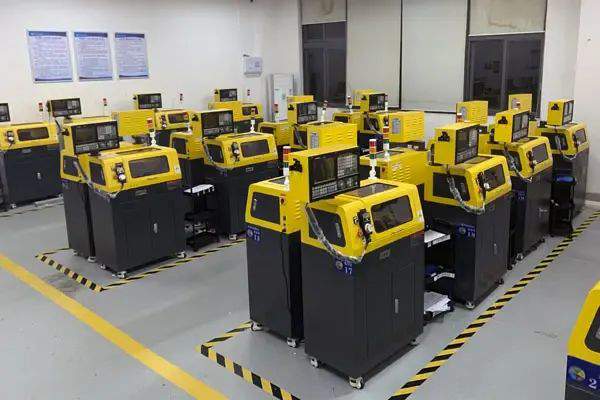

Customer Case
