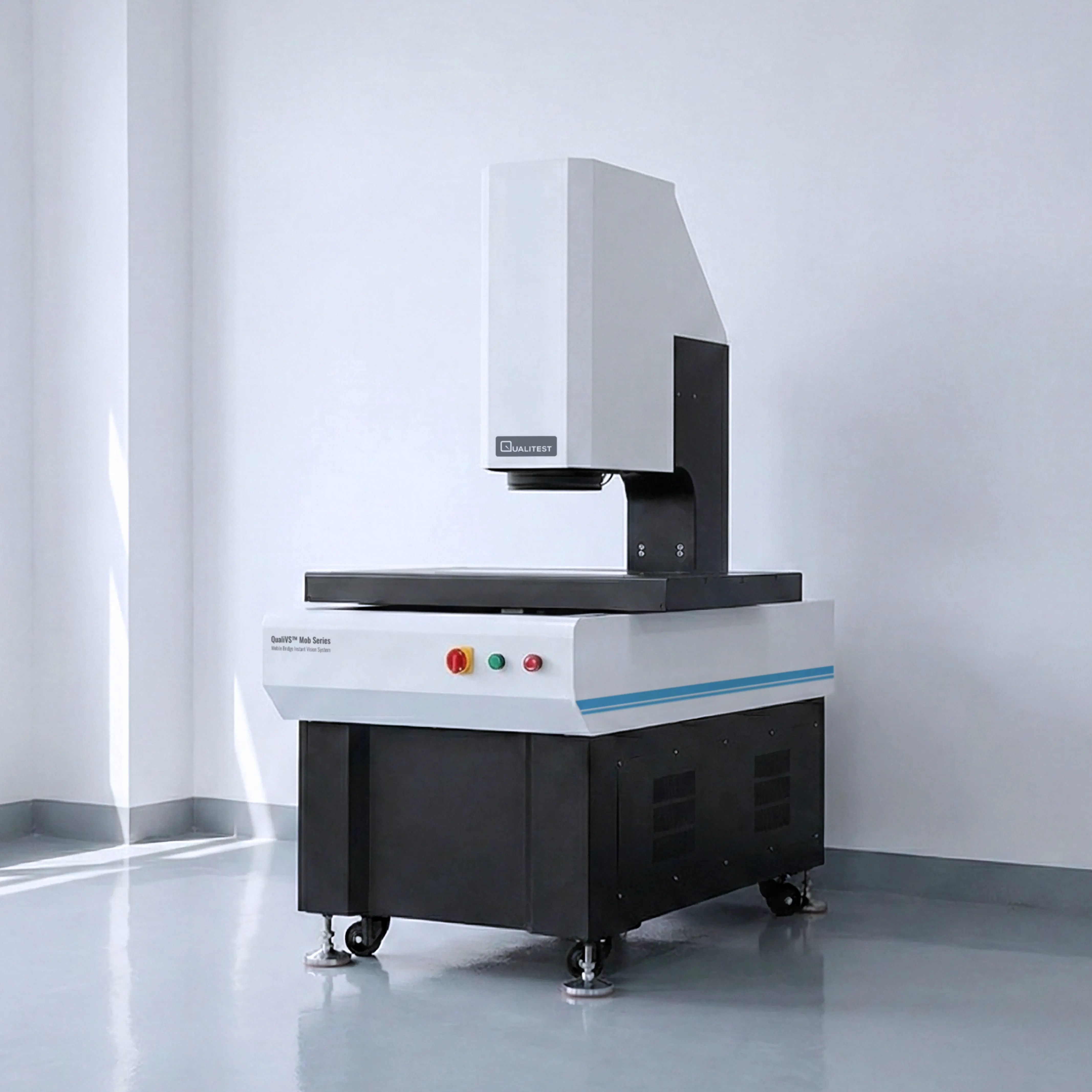

Mobile Bridge Instant Vision System – QualiVS™ Mob Series

A Mobile Bridge Instant Vision System is a high-speed Vision System built for one-shot GD&T measurement on precision parts without moving the workpiece. QualiVS™ Mob Series combines a gantry-style mobile bridge, dual telecentric optics, automated focusing, and automatic lighting control to deliver fast, repeatable results for production and lab workflows. It supports automated measurement of linear dimensions and geometric tolerances with stable positioning and consistent image quality.

Mobile Bridge Instant Vision System – QualiVS™ Mob Series

The system is designed for modern Machine Vision System needs where throughput and repeatability matter. A stationary part setup reduces handling error and supports stable measurement on complex geometries. Automated routines reduce operator variation and help standardize inspection across shifts.

Mobile Bridge Instant Vision System – QualiVS™ Mob Series Applications

  • Large-part and multi-feature dimensional inspection
    • Measures larger workpieces while keeping the part stationary for better stability and repeatability.
  • 3C electronics and consumer products
    • Supports measurement of smartphone screens, housings, and tight-tolerance molded or machined features.
  • Electronics manufacturing
    • Fits PCB and precision electronic parts where fast edge finding and consistent lighting improve measurement confidence.
  • New energy manufacturing
    • Supports lithium battery component measurement where speed, repeatability, and data consistency matter.
  • Automotive precision parts
    • Measures precision components and supports routine inspection programs with programmable workflows.
Mobile Bridge Instant Vision System – QualiVS™ Mob Series

Standards and reference frameworks

  • ASME Y14.5 for GD&T definition and interpretation (U.S. GD&T framework)
  • ISO GPS / GD&T framework (commonly used counterparts): ISO 1101, ISO 5459, ISO 14405, ISO 8015
  • CMM and optical verification guidance (project-dependent): ISO 10360 series is often used as a reference family when defining acceptance checks for coordinate metrology systems

Mobile Bridge Instant Vision System – QualiVS™ Mob Series Key features

  • Mobile bridge gantry design with stationary workpiece
    • Keeps the part fixed during measurement to support accuracy and stability on complex workpieces.
  • Dual 20 MP imaging with advanced edge detection
    • Supports fast, accurate edge finding across large and small fields of view for reliable feature capture.
  • One-click measurement with automated focus and lighting
    • Uses automatic focusing and automatic lighting control to speed inspection and reduce operator variation.
  • Liftable multi-zone surface lighting plus low-angle illumination
    • Adjusts lighting to improve contrast on reflective, dark, or textured surfaces.
  • Image stitching for larger coverage and scanning workflows
    • Supports panoramic stitching to measure parts beyond a single field of view.
  • Metus Flash Vision software for automation and reporting
    • Supports DXF import, program creation, real-time tolerance indication, and statistics such as CA, CP, and CPK. It can output reports and supports MES output options based on customer needs.
  • Configurable platform options
    • Available in vision-only configurations and versions with a laser module, based on model selection.
  • Customization support
    • Travel ranges and Z-axis maximum travel can be customized to match customer requirements.

Mobile Bridge Instant Vision System – QualiVS™ Mob Series Technical specifications

System specifications (by platform size)

SpecificationQualiVS™ Mob 300QualiVS™ Mob 400 Platform
X/Y travel400 × 300 mm500 × 400 mm
Z travel (standard)200 mm200 mm
Z travel (max, customized)Up to 400 mmUp to 400 mm
Load capacity25 kg25 kg
Display resolution0.1 µm0.1 µm
Linear scale resolution (X/Y/Z)0.5 µm0.5 µm
Machine dimensions (W × D × H)1195 × 832 × 1579 mm1463 × 940 × 1591 mm
Machine weight650 kg780 kg
CameraDual 20 MP B/W cameras
LensDual telecentric lens
IlluminationGreen parallel contour lighting; liftable 4-zone surface light; low-angle white light
OperationJoystick controller, mouse operation, automatic program detection
VoltageAC 220V/50Hz or 110V/60Hz
Working environment20°C ±2°C; humidity 30–80%; vibration <0.002g, <15Hz

Accuracy and repeatability (high-precision mode)

MetricWithout stitchingWith stitching
Repeatability±1.5 µm±2.5 µm
Accuracy±(1.5 + L/150) µm±(3.0 + L/150) µm

Accuracy and repeatability (wide-field mode)

MetricWithout stitchingWith stitching
Repeatability±2.0 µm±3.0 µm
Accuracy±(2.0 + L/150) µm±(3.5 + L/150) µm

Model configurations (example options)

ConfigurationMeasurement typeSensors
"A" type2.5D automatic vision measurementZoom-lens vision
"C" type2.5D automatic laser-scan + vision measurementZoom-lens vision + laser module
