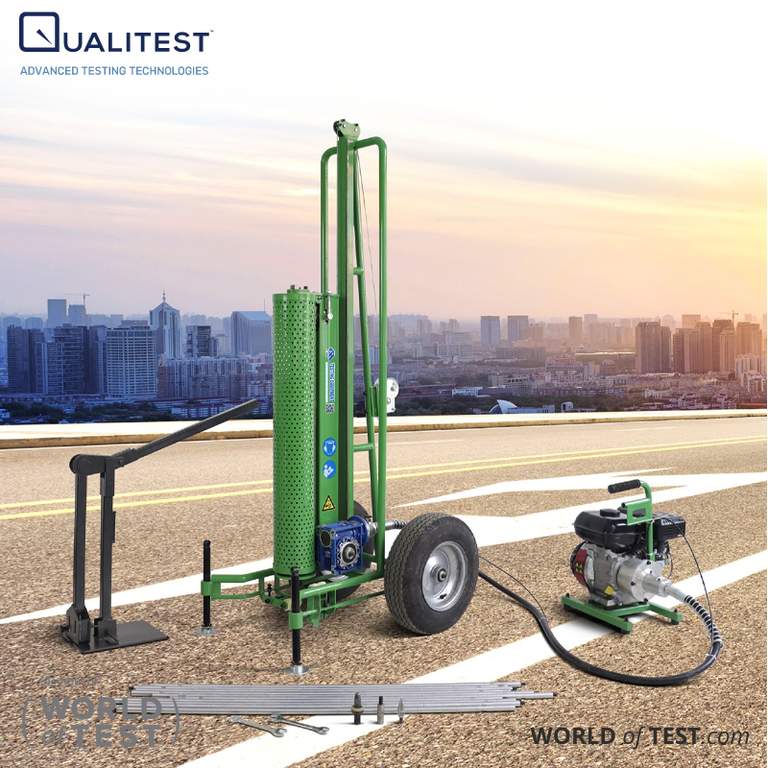

Motor-Driven Dynamic Penetrometer – QualiDCP™ AS
Motor-Driven Dynamic Penetrometer – QualiDCP™ AS is built to meet Australian standards and is designed to conduct soil penetration resistance tests. It measures subsurface soil strength by tracking how far the probe penetrates the ground with each impact.
The device features an adjustable drop height of 600±5 mm or 510±5 mm and uses a 9±0.1 kg hammer. It consists of a main unit, drive shaft, gasoline engine, and a manual extractor. The engine powers a lifting system via a flexible shaft, raising the 9 kg hammer to the selected height and releasing it to fall freely.
Mounted on wheels, the unit is easy to move and operate on-site.
