Non-Metal Ultrasonic Detector QualiNMUD-10

Non-Metal Ultrasonic Detector QualiNMUD-10 is a high-efficiency device for concrete and foundation testing. It offers real-time wave analysis, graphical data display, and patented ultrasonic-rebound strength measurement. With a lightweight design, long battery life, and advanced software for in-depth analysis, it ensures precise and reliable defect detection.

Non-Metal Ultrasonic Detector QualiNMUD-10

Applications

  • Cross-hole sonic logging for building foundation pile testing.
  • Ultrasonic inspection of concrete for defects like voids, air pockets, and cavities.
  • Single-hole defect detection with one trigger and dual receivers.
  • Dynamic performance testing for geotechnical investigations, rock, and concrete.

Configuration

Item Quantity

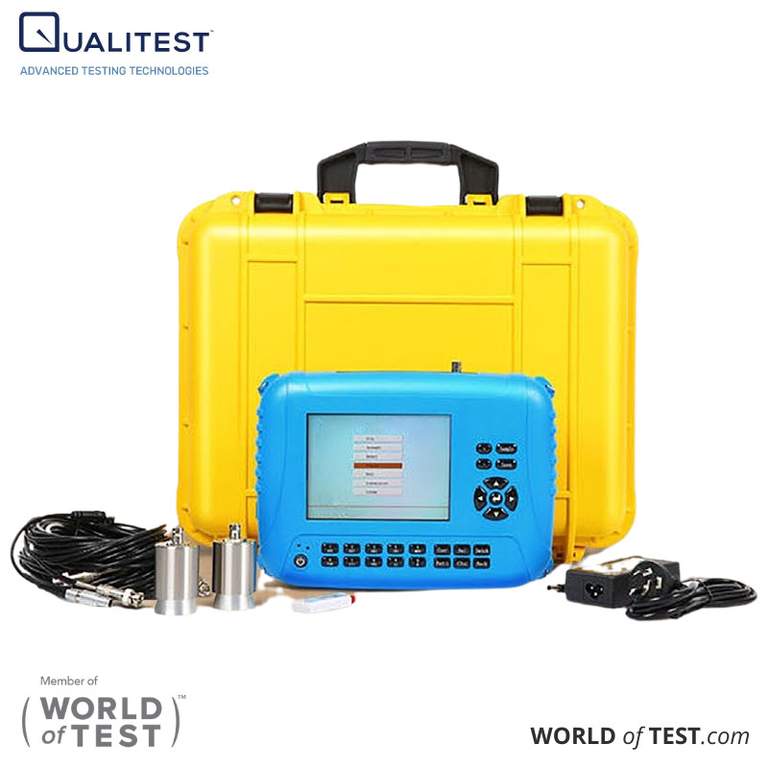

Main Unit 1
Signal Cable 2
Plane energy transducer 2
U-Disk 1
Carrying box 1
Box staff 1
Lithium battery Optional

Non-Metal Ultrasonic Detector QualiNMUD-10 Features

  • High-Efficiency Testing: Lifting speed exceeds 60m/s (20 cm per step).
  • Graphical Data Display: Instantly visualize test results for quick analysis.
  • Fast & Accurate Detection: Automatically evaluates sound parameters with real-time wave display for optimal efficiency.
  • User-Friendly Software: Designed for both operators and construction teams, with built-in guidance for easy use.
  • Integrated Rebound Testing: Directly connects to a rebound device for combined ultrasonic-rebound strength measurement, ensuring real-time concrete strength assessment (patented function).
  • High Sensitivity: Detects signals beyond 10m in defect-free concrete.
  • Independent Power Supply: Built-in power system for the radial energy transducer, eliminating the need for external power.
  • Ample Storage: Standard USB storage with large capacity.
  • Long Battery Life: Internal lithium battery supports over six hours of continuous operation.
  • Compact & Lightweight: Weighs only 1.75 kg for easy portability.
  • Extended Functionality: Supports concrete thickness measurement using the impact-echo method.
  • Advanced Analysis Software: Compatible with Windows, allowing data export to Excel or Word for in-depth analysis.

Non-Metal Ultrasonic Detector QualiNMUD-10 Technical Specifications

Item Specifications
Main Control Unit High-performance Embed Computer
Input Keyboard
Interface USB
Receive Channel One
Trigger Mode Continuous Trigger, External Trigger
Receive sensitivity ≤30μv
Amplifier bandwidth 5kHz~500 kHz
Sound time accuracy 0.05μs
Power Interior lithium battery, work more than 6 hours
External lithium battery, work more than 6 hours (selectable)
DC12V
AC100V~240V,50/60Hz
Display 640×480 High brightness TFT Panel
Storage 1G(Internal) + 2G(U-Disk)
Max Sample Data length 64k
Trigger Voltage(V) 65, 125, 250, 500, 1000 selectable
Amplifier gain 82dB
Sample Periods 0.05µs ~ 6.4µs, 8 grades electable
Amplifier resolution 0.39%
Size 260 mm×185 mm×60 mm
Weight 1.75 kg(include lithium battery)
Temperature -10°C ~+40°C
