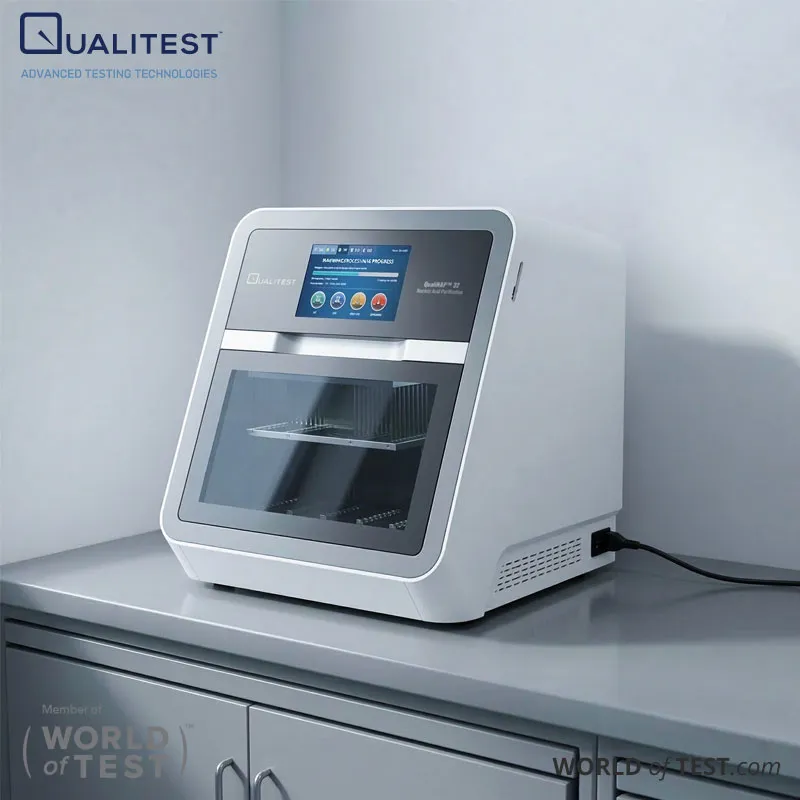

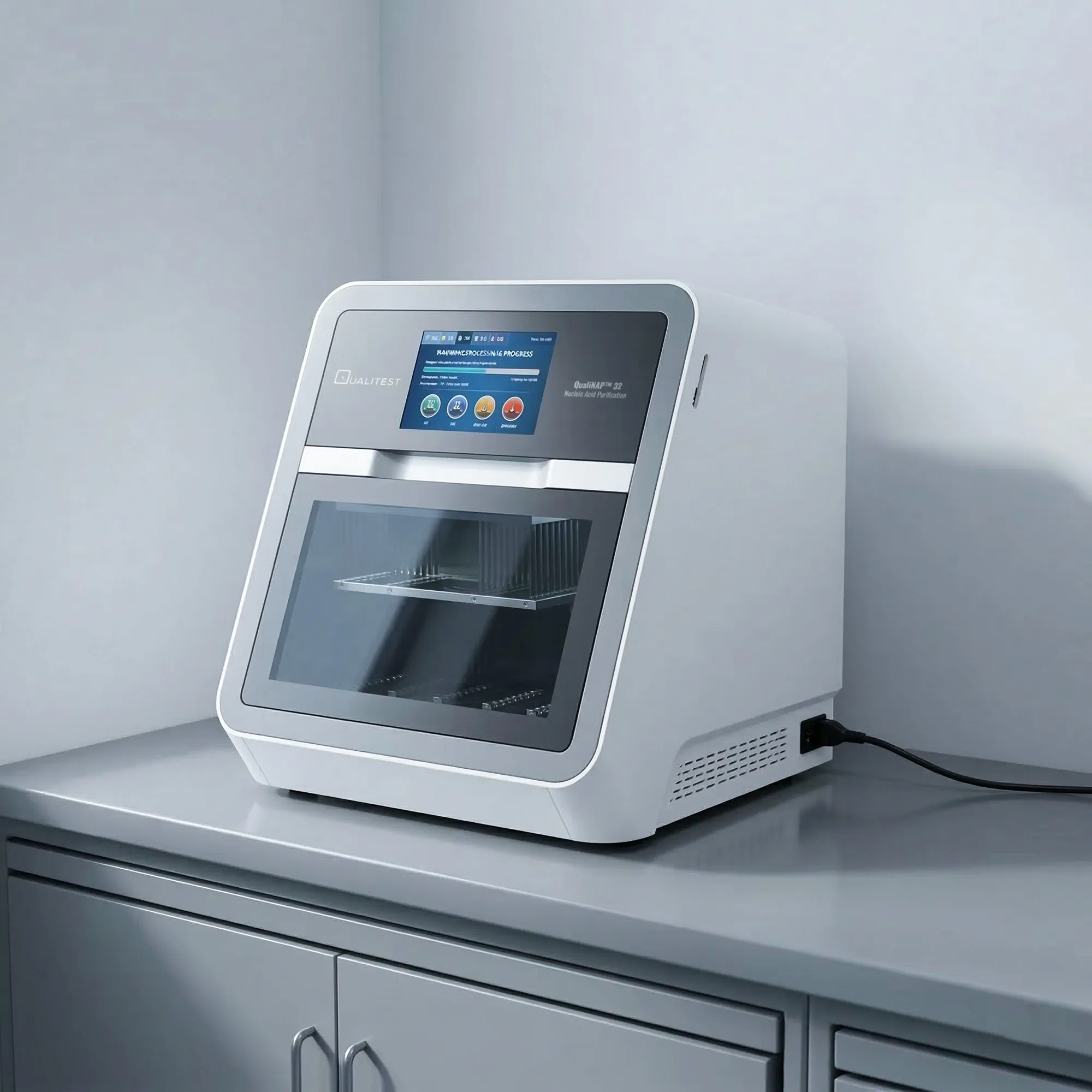

Nucleic Acid Purification – QualiNAP™ 32

Nucleic Acid Purification is the core job of QualiNAP™ 32, a magnetic-bead extraction platform that automates lysis, binding, washing, and elution for up to 32 samples per run. The system uses a magnetic-rod mechanism to move bead-bound nucleic acids through reagent positions, then mixes each step to improve wash efficiency and yield.

Processing volumes from 30–1000 μL support common clinical and research workflows in a 96 deep-well format. Built-in program storage and a touchscreen workflow make it easy to standardize extraction across operators and shifts.

QualiNAP™ 32 is built for labs that want consistent extraction results without repetitive manual pipetting. Magnetic bead recovery is specified above 98%, and purification well-to-well variation is controlled to CV <3% for repeatable downstream performance.

Lysis and elution temperature control up to 120°C supports broad kit compatibility and protocol tuning. UV disinfection plus an exhaust fan help reduce carryover risk in busy molecular labs. The system is positioned for clinical gene testing and molecular biology workflows where throughput and reproducibility matter.

Nucleic Acid Purification – QualiNAP™ 32 Applications

Total nucleic acid purification from mixed sample types

QualiNAP™ 32 supports automated isolation of total nucleic acids from diverse matrices such as blood, tissues, and cells when paired with the correct magnetic-bead kit. This is useful when your workflow needs a single extractor for multiple programs and sample sources.

Genomic DNA purification for genetic analysis

Use the system to standardize gDNA extraction across batches for genotyping, screening, and research studies. Controlled mixing and temperature steps help keep results consistent across wells and runs.

RNA purification for RT-PCR and sequencing prep

RNA workflows benefit from reduced hands-on time and fewer open-tube steps during processing. Pair your extraction SOP with a recognized pre-examination handling standard to improve repeatability from collection through isolation.

Nucleic Acid PurificationNucleic Acid Purification

Standards

  • ISO 20186 series (e.g., ISO 20186-2): Pre-examination guidance that covers specimen handling, storage, processing, and documentation for nucleic-acid-based examinations (helps justify consistent extraction inputs).
  • ISO 15189: Medical laboratory quality and competence requirements often used for method control, documentation, and audit readiness.
  • ISO 13485: Quality management system standard widely used for medical devices and many IVD-adjacent manufacturing environments.
  • ISO 18385 (for forensic workflows): Manufacturing requirements to minimize detectable human DNA contamination for products used in forensic DNA processes.
  • CLSI guidance (method validation/verification): Practical validation and verification guidance for nucleic acid testing workflows used in clinical labs. QualiMGCA™

Nucleic Acid Purification – QualiNAP™ 32 Key Features

  • 32-sample automation for batch extraction with standardized step timing and reduced hands-on work.
  • Wide processing volume range (30–1000 μL) to match common clinical and research sample inputs.
  • Magnetic bead and nucleic-acid recovery performance designed for high yield and clean downstream compatibility (>98% bead recovery listed).
  • Tight well-to-well consistency with purification inter-well CV listed below 3% for repeatable results.
  • Programmable thermal control for lysis and elution up to 120°C to support different kit chemistries and workflows.
  • Program flexibility with preset protocols and large internal storage for method standardization across teams.
  • Contamination-control helpers such as UV sterilization and exhaust fan design to reduce aerosol risk in routine operation.

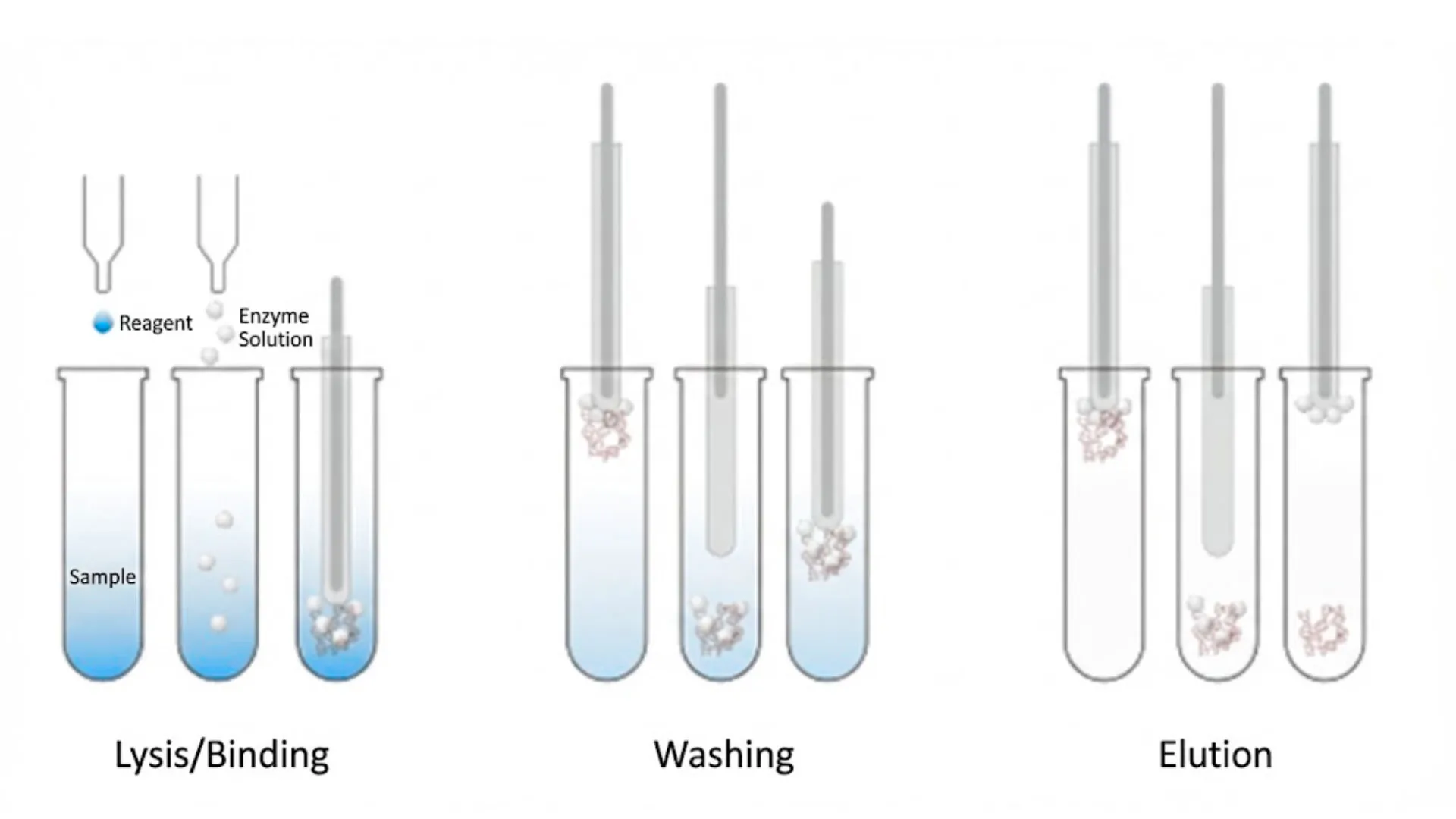

Theory and Method

QualiNAP™ 32 performs magnetic bead–based nucleic acid purification using a magnetic-rod assembly. Nucleic acids bind to functionalized magnetic beads after lysis under kit-defined chemistry. The instrument transports bead-bound targets through wash solutions, then uses programmed mixing to improve impurity removal and recovery.

Nucleic Acid Purification

Elution releases purified DNA/RNA into the final buffer for downstream assays such as PCR, RT-PCR, or sequencing prep. The closed, automated workflow reduces operator-to-operator variability across batches.

Nucleic Acid Purification – QualiNAP™ 32 Technical Specifications

SpecificationQualiNAP™ 32 (NP-2032)
Sample throughput1–32
Processing volume30–1000 µL
MethodMagnetic rod + magnetic bead
Magnetic rods / columns32 magnetic rods
Bead recovery rate>98%
Purification inter-well variationCV <3%
Consumables96 deep-well plate + rod sleeves
Lysis temperature20–120°C
Elution temperature20–120°C
Mixing / shakingMultiple mixing methods
Interface7-inch touchscreen; 8 shortcut program files
Program storagePreset 8 programs; stores up to 500 programs
Data storageInternal storage; built-in SD card
PortsStandard USB
UV disinfectionYes
ExhaustFan
Dimensions422 × 422 × 470 mm
Weight—
Nucleic Acid TypeReagent Kit ClassificationSpecificationSample Type
Viral Nucleic AcidViral DNA/RNA Purification Kit32T, 48T, 96TSerum, plasma, lymph, cell-free body fluids, cell culture supernatant, urine, tissue, swabs, or various viral transport media
gDNAWhole Blood Genomic DNA Purification Kit32T, 48T, 96TMammalian, avian, and amphibian whole blood (EDTA, Heparin, etc.)
Dried Blood Spot Genomic DNA Extraction Kit32T, 48T, 96TDried blood spots
Animal Tissue Genomic DNA Kit32T, 48T, 96TLiver, kidney, brain, tail, muscle tissue, etc.
Plant Tissue Genomic DNA Extraction Kit32T, 48T, 96TRoots, stems, flowers, leaves, fruits, etc.
Oral Swab Genomic DNA Extraction Kit32T, 48T, 96TCotton swabs
Saliva Genomic DNA Extraction Kit32T, 48T, 96TSaliva
Stool Genomic DNA Extraction Kit32T, 48T, 96TStool / Feces
Bacterial Genomic DNA Extraction Kit32T, 48T, 96TMicroorganisms, sputum, swab washes, blood, stool, etc.
RNAAnimal Tissue RNA Kit32T, 48T, 96TLiver, kidney, brain, tail, muscle tissue, etc.
Plasmid DNAPlasmid Extraction Kit32T, 48T, 96TBacteria
Product PurificationGel Recovery Kit32T, 48T, 96TAgarose gel electrophoresis samples
PCR Product Purification Kit32T, 48T, 96TPCR amplification products
Nucleic Acid Fragment Recovery Kit32T, 48T, 96TFragmented nucleic acids
