OBC Inverter Test Cooling System

OBC Inverter Test Cooling System
Parent Product
Temperature Control Units For EV Electric Vehicle Testing

The OBC Inverter Test Cooling System is designed for the comprehensive testing of the onboard charger (OBC) and DC-DC converter (DCDC), which are integral components of electric vehicles (EV). Ensuring the optimal functioning of these core elements is vital for the overall performance and safety of the entire vehicle.

This system facilitates the development and testing process, allowing for a thorough examination of the functions and performance of both the OBC and DCDC components, contributing to the reliability and efficiency of EV.

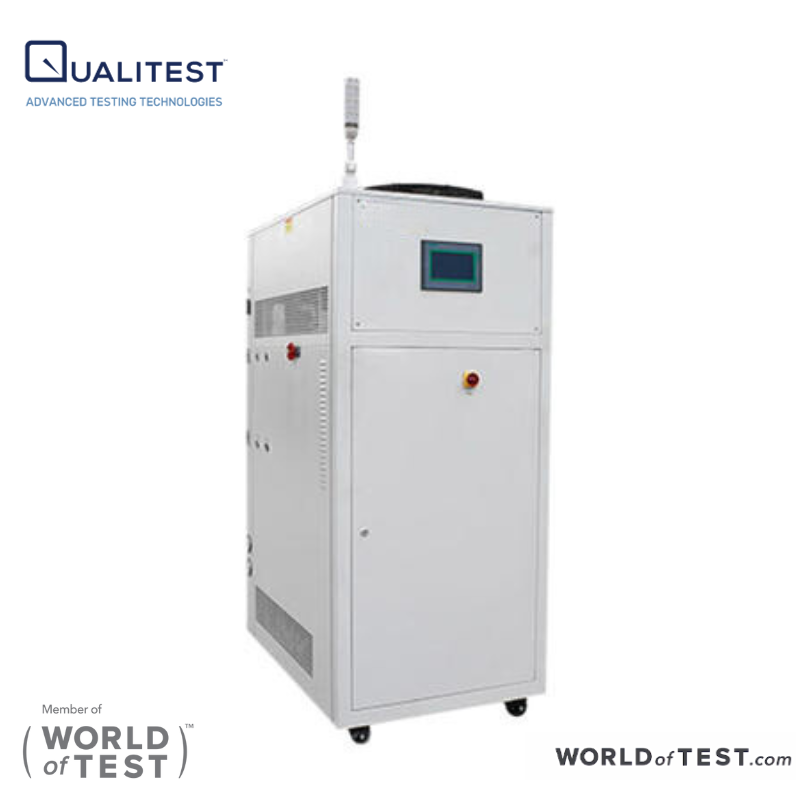

OBC Inverter Test Cooling System by Qualitest

The OBC (onboard charger) and DCDC (DC-DC converter) are pivotal elements in electric vehicles (EV), with the operational excellence of DCDC and OBC being crucial for the overall performance and safety of the entire vehicle. In the course of developing and testing OBC and DCDC, as well as the entire vehicle, a thorough examination of the functions and performance of OBC and DCDC is necessary.

OBC Inverter Test Cooling System
OBC Inverter Test Cooling System



ModelSM-255
SM-255W		SM-275
SM-275W		SM-2A10
SM-2A10W		SM-2A15
SM-2A15W		SM-2A25
SM-2A25W		SM-2A38W
Temp Range-25℃～+100℃-25℃～+100℃-25℃～+100℃-25℃～+100℃-25℃～+100℃-25℃～+100℃
Temperature control precision±0.5℃±0.5℃±0.5℃±0.5℃±0.5℃±0.5℃
Temperature feedbackPt100Pt100Pt100Pt100Pt100Pt100
Temperature display0.01k0.01k0.01k0.01k0.01k0.01k
Flow rate output2～10 L/min3～30 L/min3～30 L/min3～30 L/min3～40 L/min5～50 L/min
Flow rate accuracy±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min
Pressure displayAdopt the Jeffron pressure sensor, the touch screen display the pressure, can carry on the pressure control adjustment.
Heating power5.5kw7.5kw10kw10kW15kW25kW
Optional 15kWOptional 25kWOptional 38kW
Cooling
capacity		100℃5.5kw7.5kw10kw15kw25kw38KW
20℃5.5kw7.5kw10kw15kw25kw38KW
0℃5.5kw7.5kw10kw15kw25kw38KW
-20℃2.8kw3.8kw4.6kw7kw12kw16KW
CompressionEmerson Valley Wheel / Danfoss Scroll flexible Compressor
Expansion valveEmerson / Danfoss thermal expansion valve
Dry filterEmerson/Danfoss
EvaporatorDanfoss/KAORI plate heat exchanger
Input,DisplaySiemens 7-inch color touch screen \ Siemens s7-1200 PLC controller
Program edit10 procedures may be prepared, each of which may be composed of 40 steps
CommunicationCAN communication bus
Safety protectionSelf-diagnosis function; freezer overload protection; high pressure pressure switch, overload relay, thermal protection device, low liquid level protection, high temperature protection, sensor fault protection, etc.
Closed circulation
system		The whole system is a fully enclosed system. There is no oil mist at high temperature, and low temperature does not absorb moisture in the air. The system does not increase the pressure due to high temperature during operation, and the heat medium is automatically replenished at low temperature.
refrigerantR404A/ R507C
Connection sizeG3/4G3/4G3/4G3/4G3/4G3/4
Cooling water@25C1100L/H1500L/H2000L/H2800L/H4500L/H7000L/H
Condenser(W)Tube type heat exchanger (Paris/Shenshi)
Condenser(A)Copper tube aluminum finned heat exchanger (upward wind)
Power 380V50HZ11kw max14kw max19KW max23KW max31KW max45KW max
Dimension(W) cm55*95*17555*95*17555*95*17570*100*17580*120*185100*150*185
Dimension(A) cm55*95*17555*95*17570*100*17580*120*185100*150*185/
Weight (water cooling)230kg250kg300kg320kg570kg830kg
Optional220V 60HZ Three phase 400V 50HZ Three phase 440V 60HZ Three phase
OptionalExtend to -40~+135℃
OptionalHigher precision control of temperature, flow and pressure
OptionalAutomatic antifreeze filling system
OptionalAutomatic antifreeze filling system
