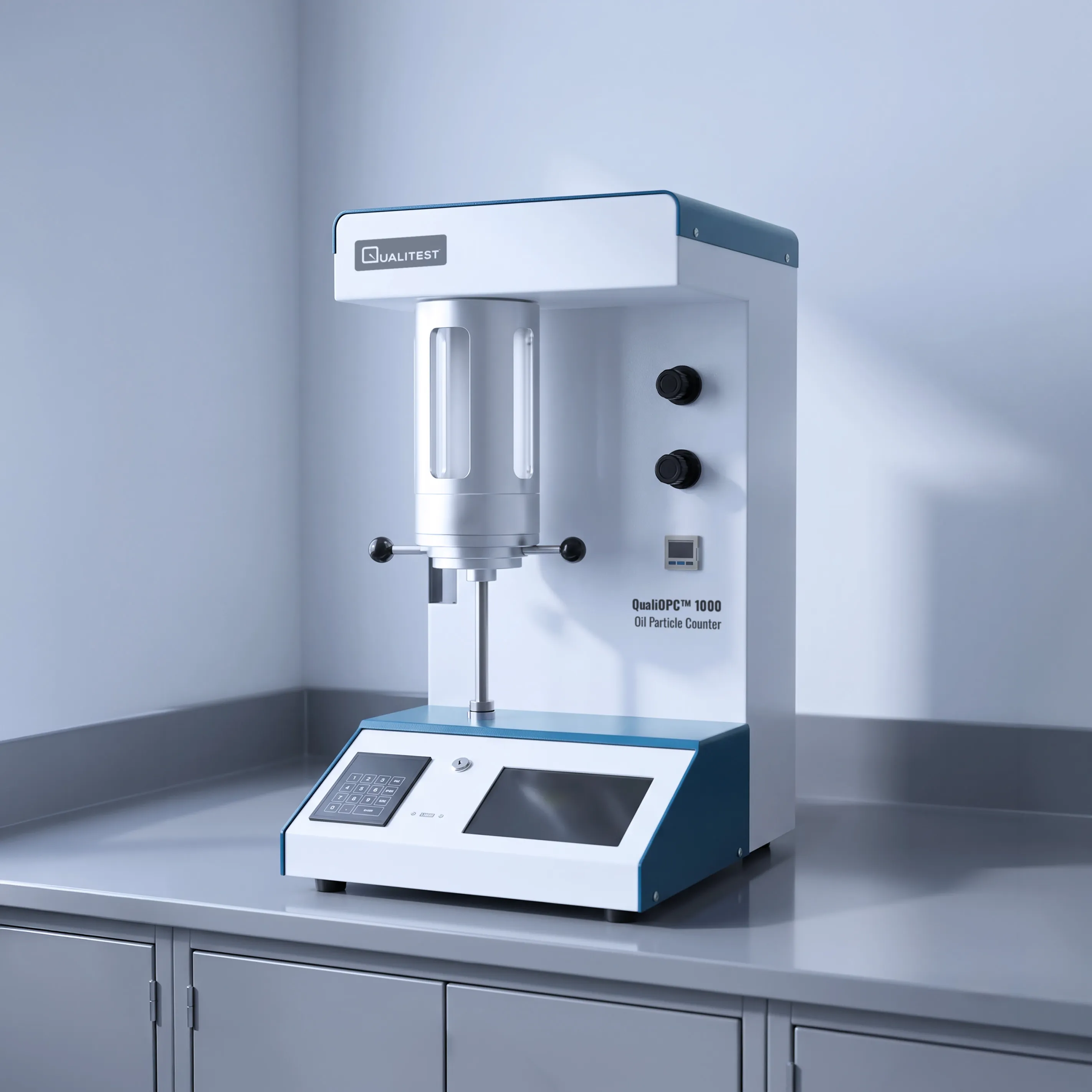

Oil Particle Counter - QualiOPC™ 1000

Oil Particle Counter systems are used to measure the size and quantity of solid particles in oils and related liquids so laboratories can evaluate contamination levels quickly and consistently. QualiOPC™ 1000 uses the light-blocking method for contamination analysis in hydraulic oil, lubricating oil, shale oil, transformer oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluids, organic liquids, and polymer solutions.

This desktop oil particle counter combines a semiconductor laser, a wide particle-size detection range, multiple reporting standards, Windows-based instrument control, and built-in data storage options. This instrument is suitable for military, aerospace, power, and transportation applications where fluid cleanliness directly affects equipment life and reliability.

QualiOPC™ 1000 is a desktop Oil Particle Counter developed for precise cleanliness analysis of oils and other compatible liquids. It measures insoluble solid particles in fluid samples and helps users assess contamination severity, support preventive maintenance, and improve fluid condition monitoring programs.

The system uses a semiconductor laser and a large-size particle counting sensor with a controlled sampling system to deliver repeatable results across a broad particle range. An industrial computer running Windows for instrument control and calculation, along with data output through an internal database, built-in printer support, and USB storage.

Oil Particle Counter - QualiOPC™ 1000 Applications

Oil Particle Counter - QualiOPC™ 1000
  • Hydraulic and Lubricating Oil Monitoring: QualiOPC™ 1000 is suitable for contamination monitoring in hydraulic oil, lubricating oil, turbine oil, gear oil, engine oil, and related service fluids. This helps maintenance teams detect particle contamination early and make better decisions on fluid quality and equipment condition.
  • Transformer and Insulating Oil Analysis: transformer oil, including insulating oil, as a target application. This supports cleanliness monitoring in electrical equipment where particulate contamination can affect fluid performance and system reliability.
  • Aerospace and Defense Fluid Cleanliness: these sectors often require close monitoring of hydraulic fluids, lubricants, and fuel-system cleanliness to support reliability and service life.
  • Power and Transportation Industries: electric power and transportation are specifically named application areas. Common use cases include turbine lubricants, rail and marine systems, and heavy-duty vehicle hydraulic or lubrication circuits where contamination tracking is part of preventive maintenance.
  • Organic Liquids and Polymer Solutions: beyond petroleum-based oils, the instrument can also detect insoluble particles in organic liquids and polymer solutions. This expands its usefulness for laboratories working with specialty liquids and process fluids.
Oil Particle Counter - QualiOPC™ 1000Oil Particle Counter

Standards

  • ISO 4402 – Hydraulic fluid power calibration of automatic-count instruments for particles suspended in liquids
  • ISO 11171 – Calibration of automatic particle counters for liquids
  • ISO 4406 – Hydraulic fluid power fluid cleanliness coding
  • NAS 1638 – Cleanliness classification for aerospace hydraulic fluids
  • SAE AS4059E / SAE AS4059F / SAE AS4059FI – Aerospace fluid cleanliness classification standards
  • SAE ARP749D – Aerospace recommended practice for hydraulic fluid cleanliness control
  • GOST 17216 – Particle contamination classification standard for optional reporting support

Oil Particle Counter - QualiOPC™ 1000 Key Features

  • Uses the light-blocking method for particle size and quantity measurement in liquids.
  • Calibration, detection methods, and accuracy are stated to meet ISO 4402 and ISO 11171 requirements.
  • Supports built-in cleanliness and reporting standards including NAS 1638, ISO 4406 series, SAE AS4059, GOST 17216, SAE ARP749D, AETF1A, and combined NAS 1638/ISO 4406 reporting.
  • Equipped with a high-performance large-size particle counting sensor.
  • Industrial computers with Windows operating systems support instrument control, calculation, and data processing.
  • Optional calibration curves include ACFTD, ISOMTD, latex sphere, and GOST curves.
  • Results can be saved through built-in printer output, software database storage, and USB flash drive storage.
  • Wide particle-size capability with detection coverage from 0.8 μm to 500 μm and reporting ranges of 1–100 μm under ISO 4402 or 4–70 μm(c) under ISO 11171-based calibration.
  • Controlled sampling and cleaning speeds support consistent measurement workflows.
  • Pressure and vacuum capability supports sample handling, including viscous fluids and bubble reduction during testing.
Oil Particle Counter - QualiOPC™ 1000

Theory and Method

QualiOPC™ 1000 works on the light-blocking method, also called the shading method. In this approach, particles suspended in the liquid pass through the sensing zone and interrupt the laser beam. The instrument then determines particle size and quantity from the signal changes produced during sample flow.

This method is widely used for liquid particle counting because it supports direct measurement of contamination levels in oils and similar fluids. The system combines this detection principle with controlled sampling speed, defined sample volume, and calibration support for recognized cleanliness standards so users can report results in the format required by their workflow.

Oil Particle Counter - QualiOPC™ 1000 Technical Specification

ParameterQualiOPC™ 1000
Product NameOil Particle Counter
ModelQualiOPC™ 1000
Light SourceSemiconductor laser
Detection PrincipleLight-blocking method
Detection Range0.8–500 μm
Particle Size Range1–100 μm (ISO 4402) or 4–70 μm(c) (ISO 11171)
Sensitivity1 μm (ISO 4402) or 4 μm(c)
Detection Channels32 channels, particle size can be set in 0.01 μm increments
Sample Volume0.3–100 mL, 0.1 mL interval
Sample Volume Relative ErrorBetter than ±0.5%
Detection Speed5–60 mL/min, default 15 mL/min
Cleaning Speed5–60 mL/min, default 15 mL/min
ResolutionBetter than 10%
Coincidence Error Limit12,000–40,000 particles/mL
Counting RepeatabilityRSD < 2%
Detection Accuracy±4.5 rating under ISO 4406 standard listing
Particle Count Relative Error±5%
Sample Chamber PressureMaximum positive pressure 0.8 MPa; maximum vacuum -0.08 MPa
Sample Viscosity Range<650 cSt
Sample Temperature0–80°C
Operating Temperature-20 to 60°C
Storage Temperature-30 to 80°C
Voltage220 V ±10%, 50 Hz (110V is also available)
Power180 W
Dimensions355 × 400 × 620 mm
Weight19 kg
