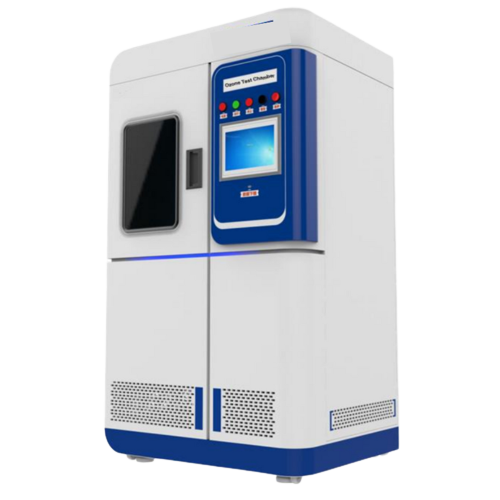

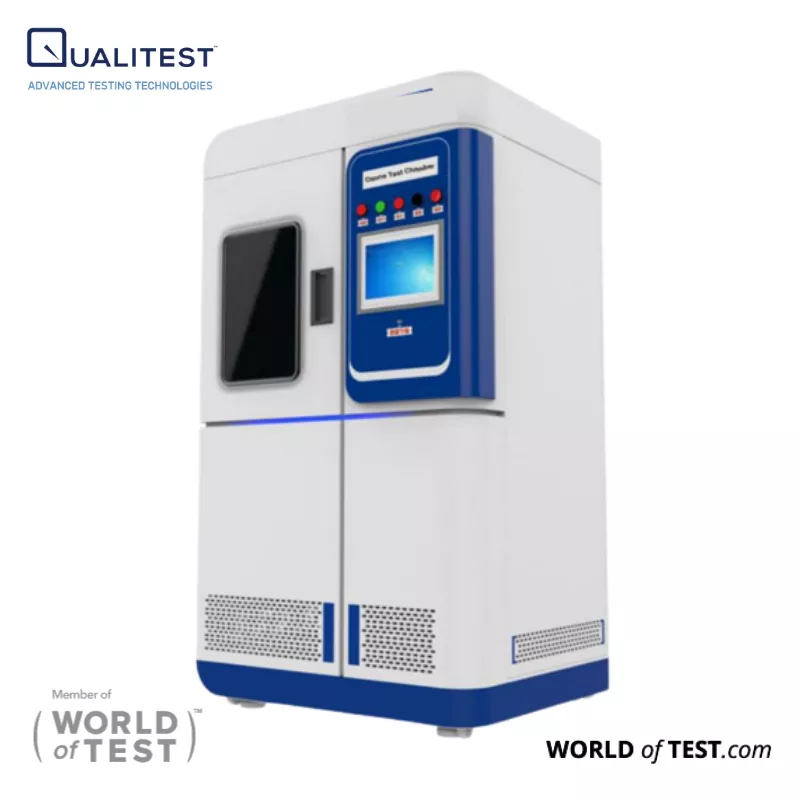

Ozone Test Chamber 300L

Ozone Test Chamber 300L Features

• Independent Aging Zones are controlled by a dedicated control system.
• Electrical digital control to achieve a digital dynamic operation process.
• Using a photometer for stable and accurate ozone concentration data over extended periods.
• Integrates the regulation of ozone concentration, temperature, and humidity to closely simulate experimental conditions.
• Includes a standard ozone pre-system to maintain the precision of photometer data without the need for consumables replacement.
• Includes standard safety operation management procedures.
• Features a testing area with a large capacity and modular design, making it easy to test irregularly shaped parts.
• The enclosure incorporates a leak-free and ozone-free exhaust structure to protect personal health and comply with environmental protection
• Independent Aging Zones are controlled by a dedicated control system.
• Electrical digital control to achieve a digital dynamic operation process.
• Using a photometer for stable and accurate ozone concentration data over extended periods.
• Integrates the regulation of ozone concentration, temperature, and humidity to closely simulate experimental conditions.
• Includes a standard ozone pre-system to maintain the precision of photometer data without the need for consumables replacement.
• Includes standard safety operation management procedures.
• Features a testing area with a large capacity and modular design, making it easy to test irregularly shaped parts.
• The enclosure incorporates a leak-free and ozone-free exhaust structure to protect personal health and comply with environmental protection regulations.

Ozone Test Chamber 300L Static test platform

Static test platform:

1. Sample platform rotation speed: Digital motor control speed, adjustable within the range of 0-30 mm/s, automatically controlled after inputting data.
2. Sample rotation speed: Digital motor control speed, 8-12 Min/R range adjustment, automatic control after inputting data;
3. The cross-sectional area of the sample should be ≥ 40% of the cross-sectional area of the test chamber;
4. Sample platform fixture station 35: 35 samples are subjected to static testing simultaneously.

• The servo digital motor is used for precise control, and the control system automatically and accurately controls the size and frequency of sample stretching according to the test conditions.
• Sample platform rotation speed: adjustable within the range of 0-30 mm/s, automatically controlled after inputting data;
• Automatic control of dynamic stretching of the sample, with an error of less than 0.15mm, automatically controlled after inputting test data
• The proportion range of specimen stretching is 10% to 80% of the specimen size;
• The frequency of sample stretching is 0-1Hz, which is automatically controlled after inputting test data;
• Sample platform fixture workstation 6 positions: dynamic testing of 6 samples simultaneously.

Features of Static Test Platform:

• The sample platform features a flexible and detachable design, complete with a partitioned mesh, providing customers with convenience for testing uniquely shaped parts.
• Within the sample platform structure, anti-corrosion and ozone-resistant materials have been employed to ensure the longevity and accuracy of the rotating frame.
• The sample fixture on the sample platform utilizes a novel installation structure, simplifying the installation process for sample fixtures.
• Precision oil-free flat thrust bearings and linear bearings, tailored from specialized materials, are integrated into the sample platform to guarantee its stability.
