Introduction to Peel Adhesion and Friction Testing
Peel adhesion and friction testing are crucial quality control measures for pressure-sensitive adhesive (PSA) tapes, ensuring their performance in various applications. These tests evaluate the strength of adhesion between the tape and a substrate, helping manufacturers meet industry standards and guarantee product reliability.

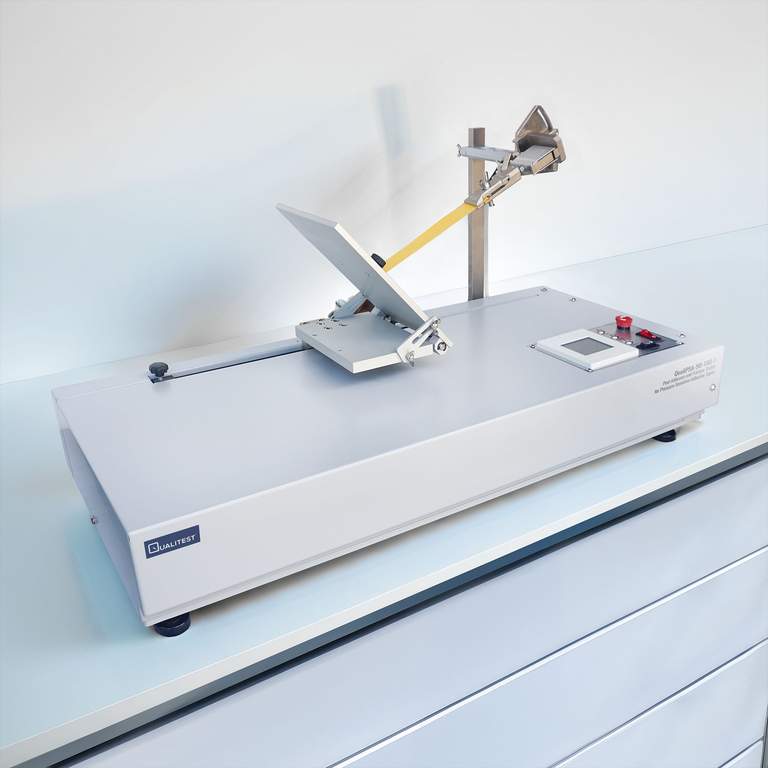

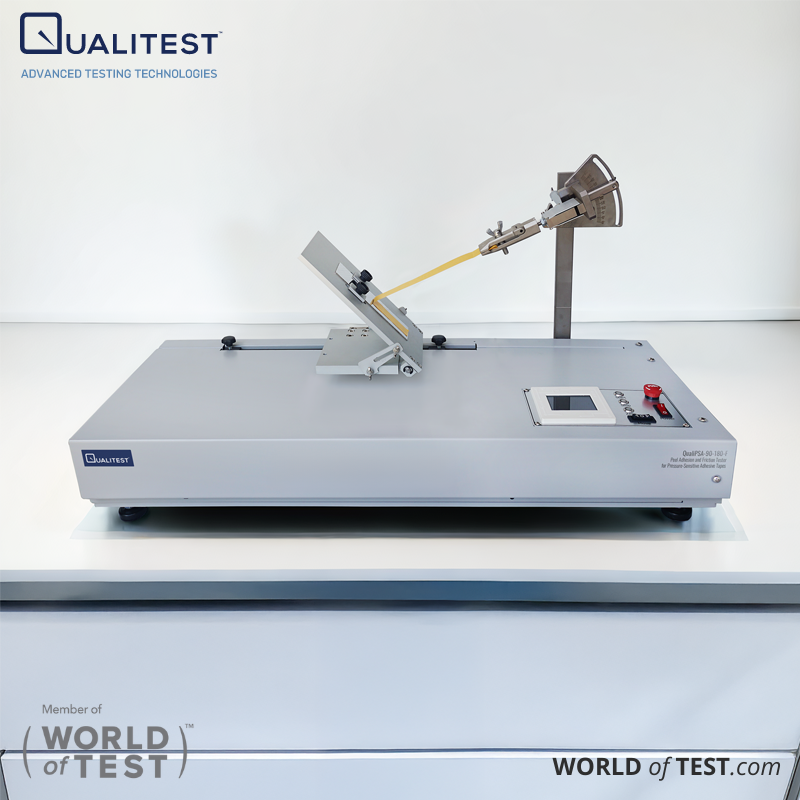

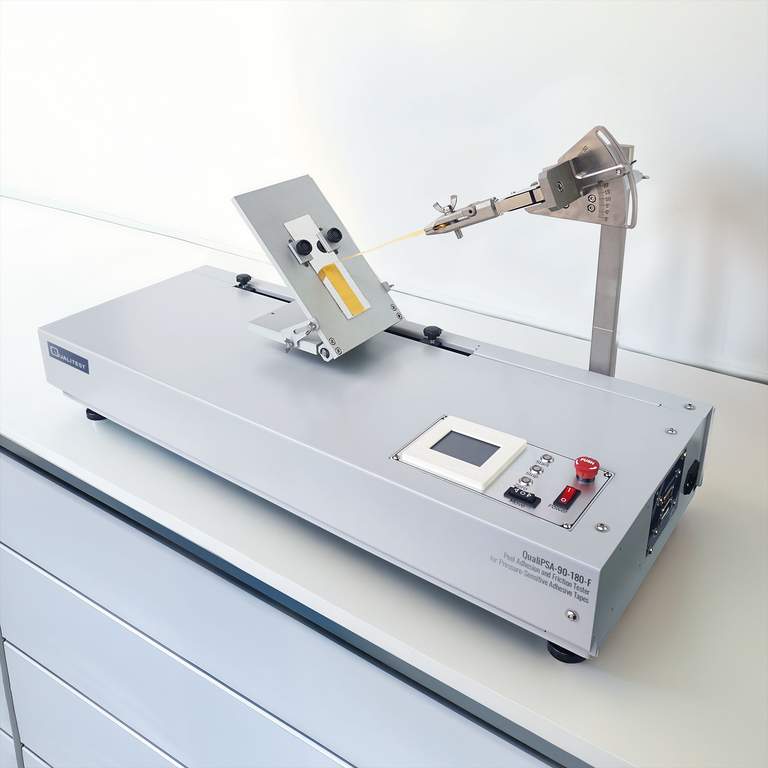

Qualitest offers the QualiPSA™ 90-180-F, a high-precision Peel Adhesion and Friction Tester designed for accurate and repeatable testing, compliant with international standards such as ASTM D3330 and ASTM D1000.
Industry Standards for Peel and Friction Testing
- ASTM D3330 – This standard outlines six different test methods for measuring the peel adhesion strength of pressure-sensitive tapes. The most common methods include 90-degree peel and 180-degree peel tests.
- ASTM D1000 – Specifies the test methods for evaluating the adhesion strength of electrical pressure-sensitive tapes, ensuring their reliability in electrical insulation applications.
90-Degree and 180-Degree Peel Tests
90-Degree Peel Test
In the 90-degree peel test, the tape is applied to a standardized test panel and peeled back at a controlled speed while maintaining a 90-degree angle. This method is ideal for testing tapes used on rigid surfaces, providing an accurate measure of adhesive strength.
- Commonly used for packaging tapes, labels, and industrial adhesives.
- Ensures consistent adhesion performance on different substrates.
- Provides insights into bond strength and durability under varying conditions.
180-Degree Peel Test
In the 180-degree peel test, the tape is adhered to a test panel and peeled back at a 180-degree angle, completely reversing its direction. This test is widely used for evaluating high-bond adhesive tapes and materials with flexible backings.
- Frequently applied for double-sided tapes, medical adhesives, and protective films.
- Offers precise data on adhesion force and residue behavior.
- Helps manufacturers optimize tape formulation and backing materials.
Friction Testing for PSA Tapes
Friction testing measures the resistance of a tape when sliding against a surface, ensuring optimal performance in various applications. This test is crucial for understanding the handling properties of PSA tapes in automated processing and manual applications.
- Evaluates surface interaction and ease of application.
- Determines the coefficient of friction to optimize material performance.
- Ensures consistent product quality across different batches.
Accessories Included
- Equipped with a 7-inch TFT color touchscreen.
- Supports three selectable languages: English, and other.
- Data display options include force, stress, torque, displacement, and time.
- Test configuration allows settings for speed, direction, automatic position reset, and machine stop at the breaking point.
- Data analysis provides maximum force, internal force, and breaking point force readings.
- Stand-alone calibration capability.
- Customizable machine shutdown conditions based on force, displacement, time, or elongation.
- Restores to the original factory settings.
- Unit selection supports both metric and imperial systems.
- Includes over-travel, overload protection, and automatic machine stop for overtime.
- Stores up to 50 data sets with USB storage functionality.
- Supports multiple signal sources.
Software & Data Analysis
- Operated using a keyboard and mouse; grip position is adjustable with up/down buttons.
- X-Y axis adjustments on the graph, including curve point marking, intervals, and slope.
- Supports various test patterns, including hold tensile and customized grip movements.
- TCP/IP interface for two-way communication; machine controllable via PC.
- Test settings can be saved as modules to minimize errors.
- Available in English and other.
- Displays multiple test data simultaneously on the software.
- Supports tensile, compression, bending, peeling, and spring tests.
- Software can display data, graphs, or both concurrently.
- Compatible with Windows 7, 8, and 10.
- Sampling rate up to 400 Hz.
- Supports various I/O signals.
- Unit selection between metric and imperial systems.
- Data table customizable based on user preferences.
- Allows data renaming and formula creation.
- Data processing features include storage, retrieval, listing, and statistical comparison.
- Protection against excessive test stroke, capacity, and time.
- Sample specifications can be saved as modules for quick access.
- Upper and lower limits can be selected for key data access.
With years of experience in providing cutting-edge testing solutions, Qualitest is a trusted name in adhesive and material testing. The QualiPSA™ 90-180-F Peel Adhesion and Friction Tester delivers unmatched accuracy, reliability, and efficiency for research labs, quality control departments, and manufacturing facilities.
