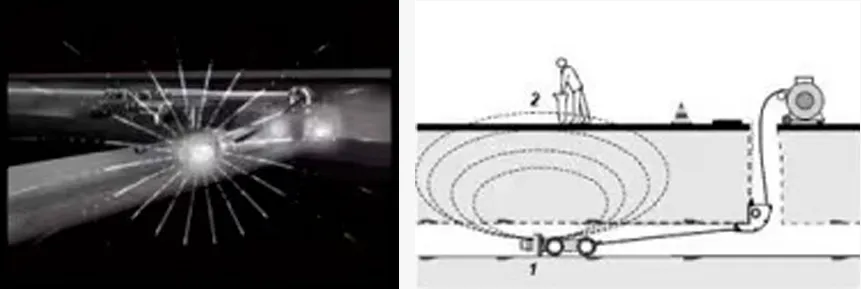

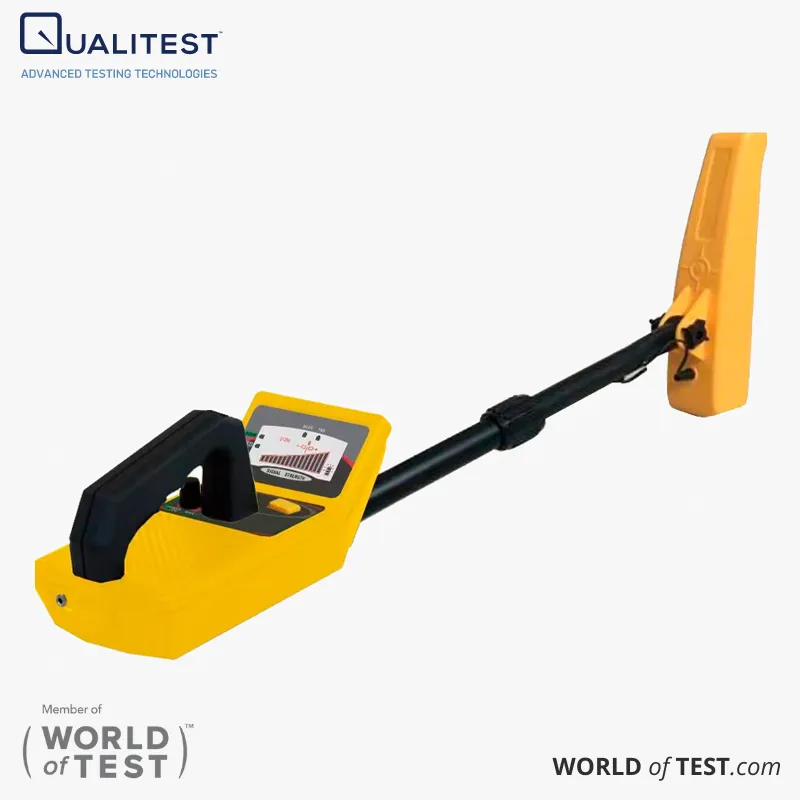

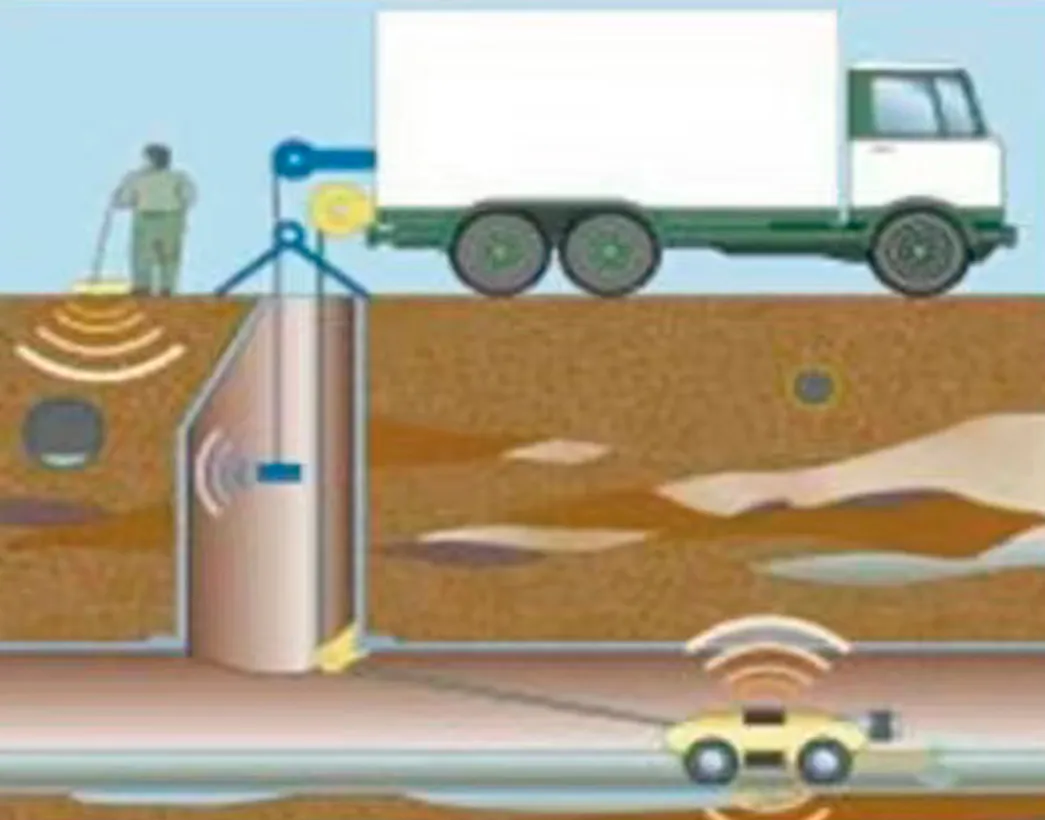

Pipe Locator - QualiPL™ 2000 Parent Product PVC Pipe Periscope - QualiPP™ X1 Pipeline CCTV Inspection Robot – QualiBot™ X5 Application NDT - Non-Destructive Testing View PDF Applications Technical Specifications Pipe Locator - QualiPL™ 2000Pipe Locator – QualiPL™ 2000 is a reliable system designed for accurate underground pipe detection. Featuring a 512 Hz transmitter and receiver, it ensures precise positioning through adjustable sensitivity, multiple detection ranges, and durable construction for both field and laboratory use.ApplicationThe receiver, used with the transmitter, makes it possible to locate pipes accurately. Place the transmitter inside the pipe, and the receiver detects the 512 Hz signal. Adjust the receiver’s antenna direction and sensitivity to determine the pipe’s position. Receiver & Transmitter Technical SpecificationsTransmitter – QualiPL™ 2001Operating Frequency512 Hz (produced by crystals)Launch IntensityAir in the position of 8 meters can receive by receiver.PVC Pipe in the position of 7 meters can receive by receiver.Cast Iron Pipe in the position of 6 meters can receive by the receiver.Operation Temperature0~50 °CPressure5 meters water pressurePower SupplyAAA 1.5VOperation Current<120 mADimensions28 mm diameter × 76 mm lengthConnection ThreadM15X1Weight60 gReceiver – QualiPLR™ 2012BFrequency512 HzPower Supply6 × AACurrent<55 mAOperation ModeNORM/NOISESensitivityNEAR/FARSensitivity AdjustableContinuous adjustableOutput IntensityLCD 15 levelsSize1000 × 100 × 100 mmWeight1000 gOperation Temperature-10~50 °C RequestQuotation Pipe Locator - QualiPL™ 2000 First Name Last Name / Surname Position Email Phone Number Company Name Company Type - None -ManufacturerResellerGovernmentUniversity Country - Select -AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua & BarbudaArgentinaArmeniaArubaAscension IslandAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBosnia & HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBritish Virgin IslandsBruneiBulgariaBurkina FasoBurundiCambodiaCameroonCanadaCanary IslandsCape VerdeCaribbean NetherlandsCayman IslandsCentral African RepublicCeuta & MelillaChadChileChinaChristmas IslandClipperton IslandCocos (Keeling) IslandsColombiaComorosCongo - BrazzavilleCongo - KinshasaCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d’IvoireDenmarkDiego GarciaDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard & McDonald IslandsHondurasHong Kong SAR ChinaHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKosovoKuwaitKyrgyzstanLaosLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacao SAR ChinaMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmar (Burma)NamibiaNauruNepalNetherlandsNetherlands AntillesNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorthern Mariana IslandsNorth KoreaNorth MacedoniaNorwayOmanOutlying OceaniaPakistanPalauPalestinian TerritoriesPanamaPapua New GuineaParaguayPeruPhilippinesPitcairn IslandsPolandPortugalPuerto RicoQatarRomaniaRussiaRwandaRéunionSamoaSan MarinoSarkSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia & South Sandwich IslandsSouth KoreaSouth SudanSpainSri LankaSt. BarthélemySt. HelenaSt. Kitts & NevisSt. LuciaSt. MartinSt. Pierre & MiquelonSt. Vincent & GrenadinesSudanSurinameSvalbard & Jan MayenSwedenSwitzerlandSyriaSão Tomé & PríncipeTaiwanTajikistanTanzaniaThailandTimor-LesteTogoTokelauTongaTrinidad & TobagoTristan da CunhaTunisiaTurkmenistanTurks & Caicos IslandsTuvaluTürkiyeU.S. Outlying IslandsU.S. Virgin IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVatican CityVenezuelaVietnamWallis & FutunaWestern SaharaYemenZambiaZimbabweÅland Islands State/Province Timeline - None -Less than one monthOne to three monthsFour to six monthsLonger than six months Message
