Portable Color Spectrophotometers – Colorimeters

Measurement Principles Across Product Variants

Verifying batch-to-batch color consistency across manufacturing runs requires matching the optical method to your specific testing environment and sample type:

• High-Precision Sphere Spectrophotometry (QualiSpec™-700D): Uses diffuse d/8° sphere geometry to measure solid, opaque components like molded plastic housings, automotive parts, industrial paints, and textiles. The instrument projects light onto the sample surface, gathers reflected rays, and maps complete color profiles without altering or damaging finished parts.
• Multi-Parameter Color, Gloss & Fluorescence Engine (Spectro2guide): Combines a full-spectrum color spectrophotometer with an integrated gloss meter and fluorimeter. This system measures color coordinates, surface shine, and fluorescent decay simultaneously in a single scan.

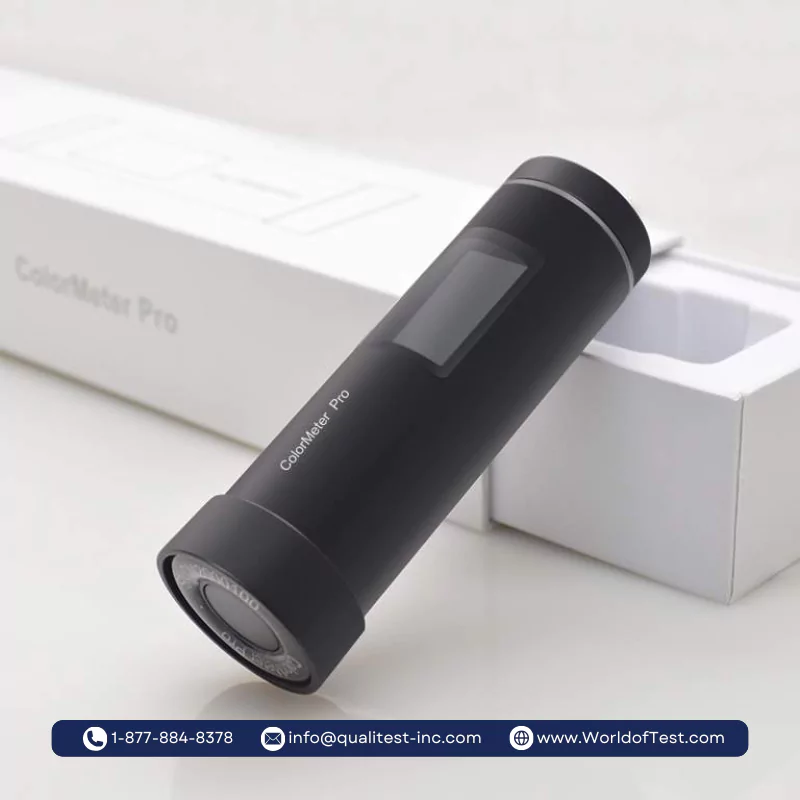

• Pocket-Sized Digital Color Identification (ColorMeter Pro): Uses compact multi-channel color sensor technology paired with Bluetooth mobile connectivity. Built for rapid pass/fail checks, instant color matching, and digital swatch library lookups directly on the shop floor or loading dock.

Integrating Sphere Geometry & SCI/SCE Modes

High-precision models like the QualiSpec™-700D and Spectro2guide utilize an integrating sphere (d/8°) optical layout. Inside the device, a reflective white inner wall scatters light evenly across the sample before collecting reflected rays at an 8-degree offset, fully meeting ISO 7724, DIN 5033, and ASTM E1164 standards.

Operators can alternate between two measurement modes depending on surface finish:

• SCI (Specular Component Included): Captures total spectral reflectance, including surface gloss. SCI mode evaluates true pigment composition regardless of surface finish or texture.
• SCE (Specular Component Excluded): Traps and excludes specular glare, measuring color exactly as human eyes perceive it under ambient lighting.

Illumination Engines & Fluorescence Analysis

Qualitest portable instruments house specialized light sources built for specific quality control demands:

• Full-Band LED & UV Excitation: Multi-channel LED light sources in the QualiSpec™-700D and Spectro2guide cover the 400–700 nm visible spectrum with zero warm-up delay or heat emissions. An integrated ultraviolet (UV) LED channel measures optical brighteners (OBAs) and fluorescent whitening agents in bleached paper, white fabrics, and masterbatch polymers.
• Fluorescence Decay Measurement: The Spectro2guide incorporates dedicated fluorimeter sensors that detect light-induced color shifts and fluorescent degradation over time, predicting long-term material stability under sunlight exposure.
• Low-Power Solid-State LEDs: The ColorMeter Pro uses energy-efficient LED lighting paired with smart power management, delivering thousands of quick color checks on a single battery charge.

Optical Signal Processing & Sensor Architecture

Gathering accurate light signals requires stable optical pathways and sensitive digital detectors:

• Dual Optical Path Monitoring: The QualiSpec™-700D and Spectro2guide use dual beam architecture. One optical beam reads the test sample while an internal reference beam tracks light source output, automatically compensating for ambient temperature shifts.
• Concave Holographic Gratings: Disperses reflected light across a multi-element detector array without mechanical moving parts, preventing measurement errors caused by floor vibrations during handheld testing.
• Micro-Sensor Array Chips: The ColorMeter Pro integrates multi-channel digital color sensors onto a compact circuit board, converting optical signals into instant digital readings.

Colorimetric Calculations & Inter-Instrument Consistency

Raw spectral reflectance data captured by detector arrays is processed internally into standardized CIE color coordinates:

• CIELAB (L*, a*, b* Coordinates): Converts spectral curves into three straightforward metrics: Lightness (L*), Red-vs-Green (a*), and Yellow-vs-Blue (b*).
• CIEDE2000 (ΔE₀₀ Color Differences): Applies human-vision weighting factors to confirm whether two production batches match within allowable tolerances (compliant with ASTM D2244).
• Inter-Instrument Agreement: With measurement repeatability reaching ΔE*ab ≤ 0.025 on the QualiSpec™-700D and inter-instrument agreement within ΔE*ab ≤ 0.20 to 0.25, quality managers can share digital color files globally without shipping physical reference tiles.

Target Alignment, Aperture Selection & Digital Integration

To ensure repeatable measurements across varying component shapes and sizes:

1. Four Switchable Apertures: The QualiSpec™-700D includes interchangeable aperture plates (Φ 11mm, Φ 6mm, Φ 3mm, and 1×3mm) to prevent edge-light loss on small fasteners, narrow trim, or curved parts.
2. Magnified Viewfinders: Built-in camera displays present a real-time preview of the target spot (magnified 5:1 on Spectro2guide units) to eliminate positioning errors over scratches or uneven surface textures.
3. Mobile & PC Integration: Connects via Bluetooth or USB to the ColorMeter App (Android/iOS) and ColorExpert PC Software across the ColorMeter Pro and QualiSpec™-700D for instant cloud library lookups, formula center management, and quality control reporting.
